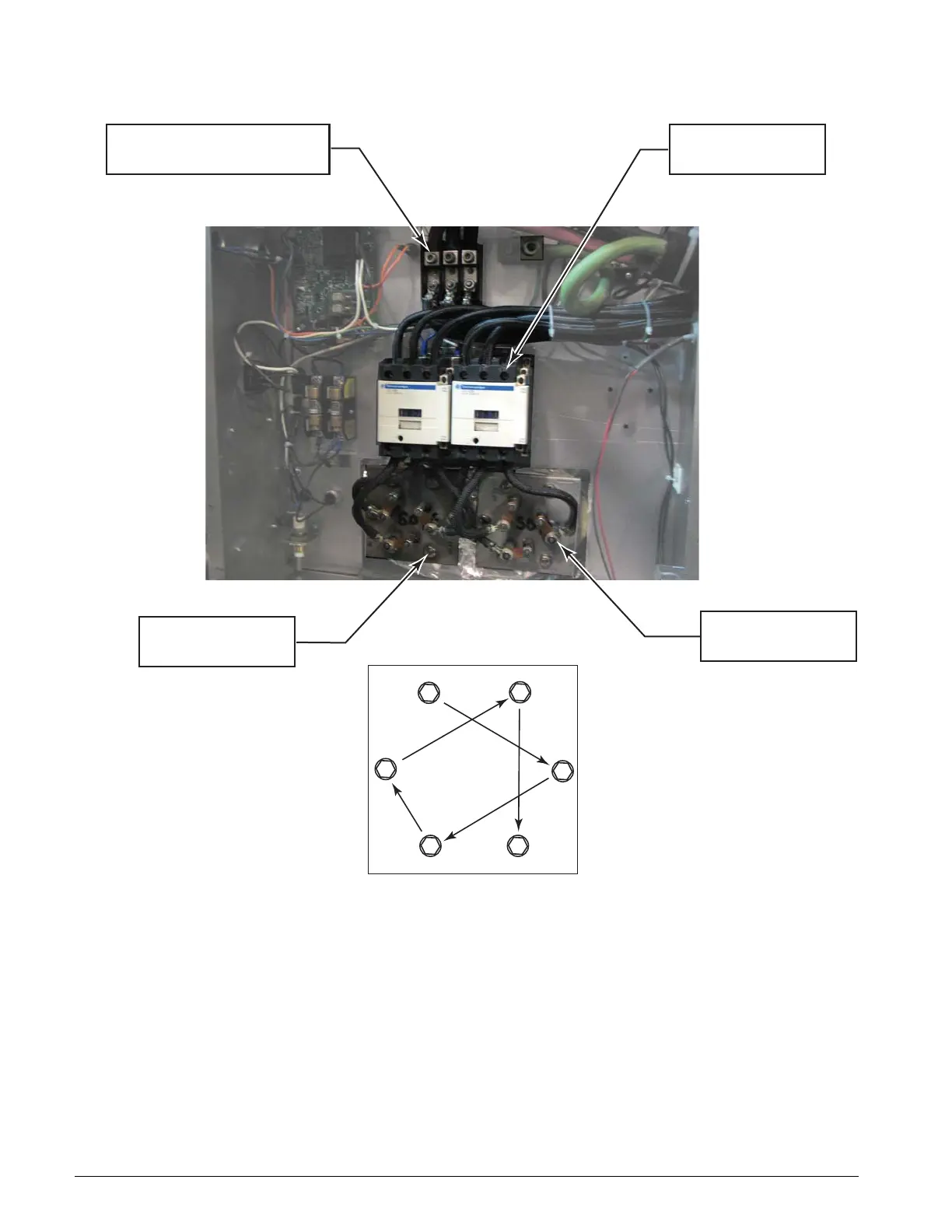

FIGURE 5–5. CAS-45A BOILER TORQUE SPECIFICATIONS
Three-Phase Supply Terminals
Torque to 110 in-lbs
Contactor Terminals
Torque to 45 in-lbs
Element Terminals
Torque to 20 in-lbs
Element Flange Bolts
Torque to 22 ft-lbs
A07027-BX
1
2
3
4
5
6
FLANGE BOLT TIGHTENING SEQUENCE
(Heating elements not shown for clarity)
