Optional Equipment
5–24 INS 61301607027 Rev A US

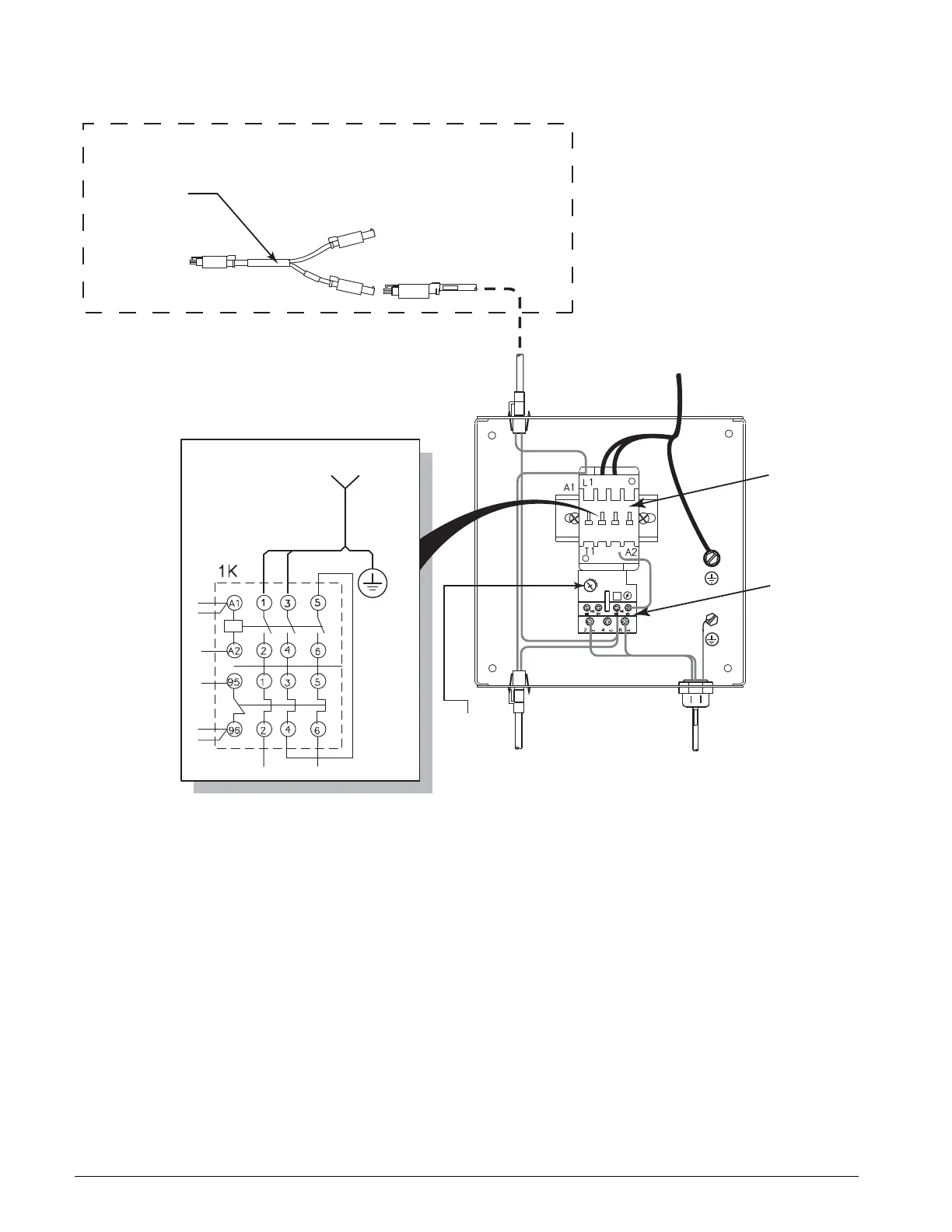

FIGURE 5–20. WATER-SAVER ELECTRICAL CONNECTIONS
Overload
Relay
Customer Supply
115 or 230 Vac
Single-Phase
Pump Motor
Contactor 1K
(Single-Phase Voltage
to Pump Motor)
Front View of Box
w/o Cover
Customer Supply
Current
Adjustment
1J
2J
to Control Box
2A15JO
to Water Saver On
Solenoid Valve 15SV
Y Adapter
Sterilizer Components
(to Water to Tank
Solenoid Valve 1SV
via Temp. Switch 1S)
A08205-E
