Instruction manual
Electric Actuators Type EA15-250

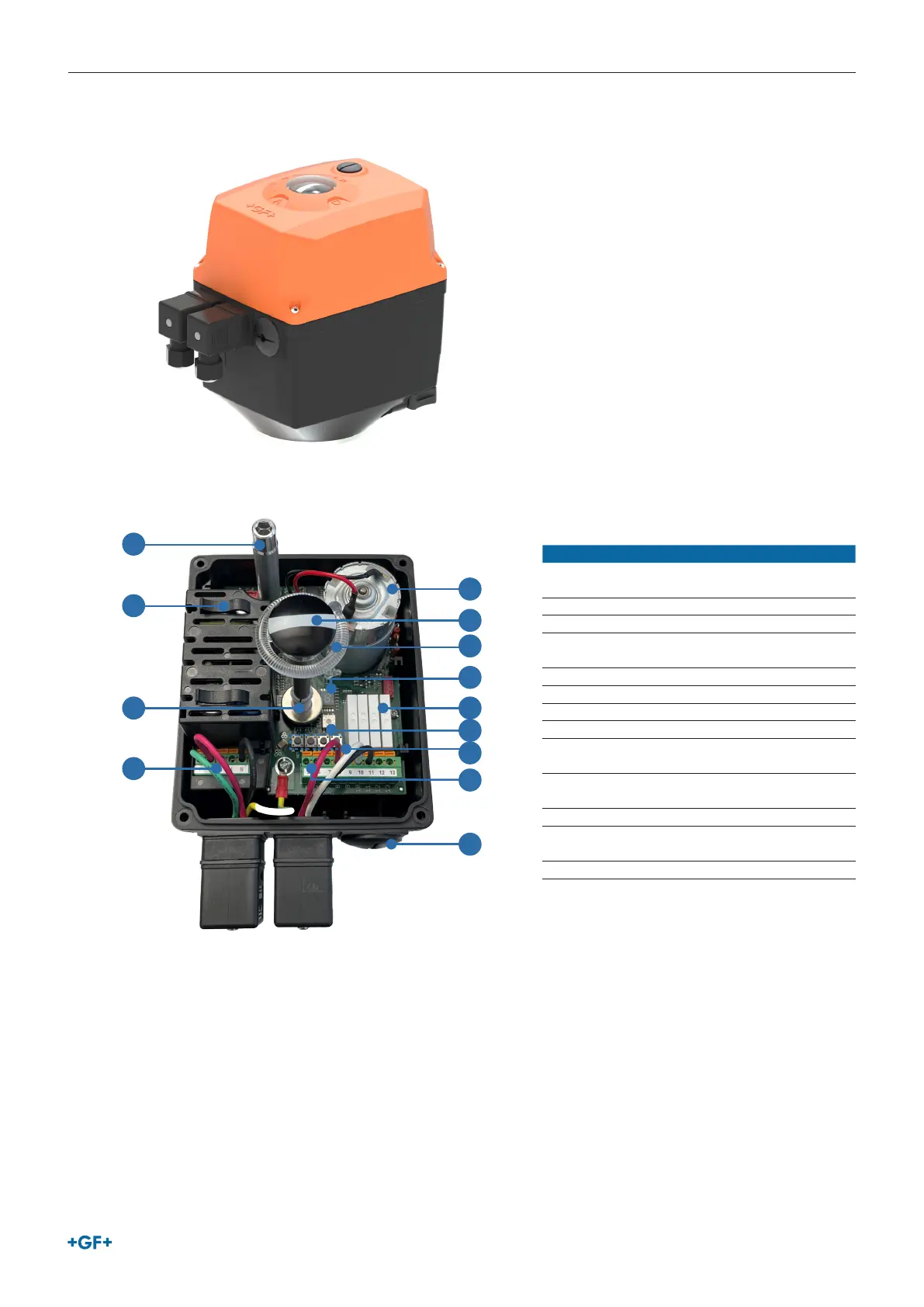

3.5.3 Design EA25-250
5
6
7
8
9
10
11
12
13
4
3
1
2
Pos. Designation
1 Shaft for emergency manual override hand
crank
2 Power supply with cover
3 Digital position detection
4 Control power for OPEN/CLOSE/MIDDLE
position
5 DC motor
6 Optical position indicator
7 Light tube for LED status feedback
8 7 segment error display
9 Relays for position feedback OPEN/CLOSE/
MIDDLE/ready-to-operate
10 Heating element (temperature threshold
control)
11 Buttons for end position adjustment
12 Terminal block to connect position
feedback”
13 Connections for DIN plug or cable gland
