25
Instruction manual
Electric Actuators Type EA15-250
4.2 Preparation and assembly
1. In addition to this manual, please also follow the specifications of the valve manufacturer.
2. Before installation, compare the technical data of the actuator with those of the control and the valve. Only install the actuator if
the data match.
3. Before installation, check plugs and terminals for possible damage.
4. Make sure that no damaged parts are used.
5. Mount the actuator on the valve, see assembly instructions of the respective manual valve.

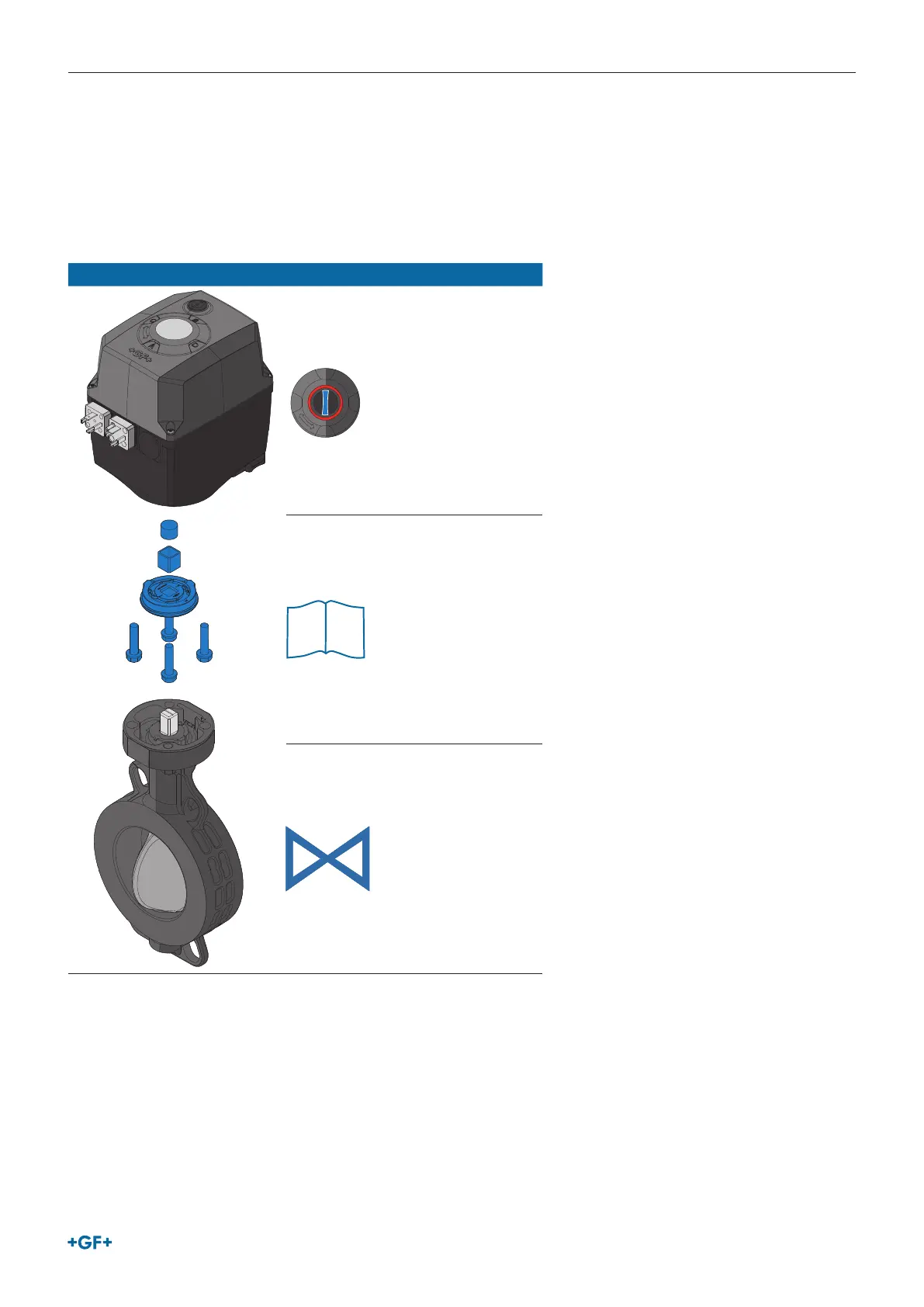

Overview Description
A
B
C D
Actuator in OPEN position
(position indicator A-B)
i
Flange fitting F05 or F07
Assembly according to
instruction manual
«Actuated valve»
Valve in OPEN position
6. Req. external breakers on all live wires:
•
Rated Current: max. 16A,
•
Trip Curve: C
•
Standards Compliance: cUL 489, CSA C22.2 No. 5.1, IEC 60947-2
•
Fuse / circuit breaker must be positioned in Phases (P) and Neutral (N).
