6.3 Inverting LED color assignment
The LED color assignment has been set at the factory to red = OPEN, and green = CLOSE. This assignment can be inverted by the
customer, if desired.
1. Open cover. To do so, loosen the 4 screws (torx size 20).
2. Make sure that the actuator is connected to appropriate power.
3. Press the SET + CCW buttons and hold them for 5 seconds. The LED color changes to turquoise. The colors red and green are
inverted.
4. Reinstall the cover and fasten it with the 4 screws.
6.4 Adjusting the heating element
Heating element
0
5
4
3
2
1
9
8
7
6

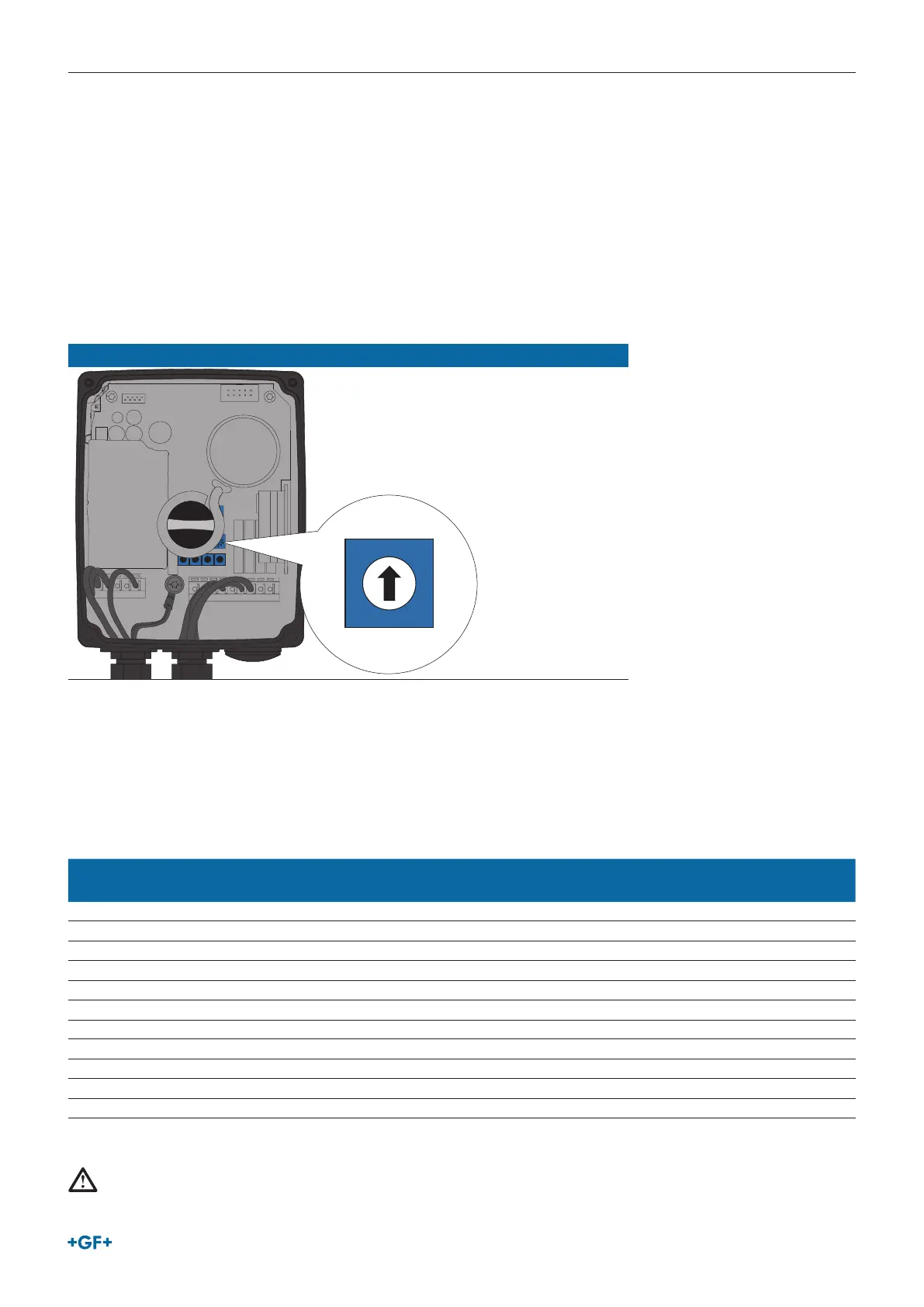

Heating adjustment inside the actuator
The heating element has been set at the factory, so it starts heating from an internal device temperature of 0 °C (32°F). For environ-
ments with higher temperatures and high humidity, the heating threshold must be increased, in order to prevent moisture conden-
sation inside the housing. The heating threshold can be set via the heating adjustment.
The following table shows the positions of the heating adjustment and in which corresponding temperature ranges the heating ele-
ment will heat.
Position heating
adjustment
Heating on
(°C)
Heating o
(°C)
Heating on
(°F)
Heating o
(°F)
°C °F
0 (default) < 0 < 5 < 32 < 41
1 5 10 41 50
2 10 15 50 59
3 15 20 59 68
4 20 25 68 77
5 25 30 77 86
6 30 35 86 95
7 35 40 95 104
8 40 45 104 113
9 40 45 104 113
► In order to change the heating threshold, turn the heating adjustment with a suitable screwdriver to the desired position.
NOTE!
When the heating element is heating, the dot on the 7 segment display is illuminated.
