Instruction manual
Electric Actuators Type EA15-250

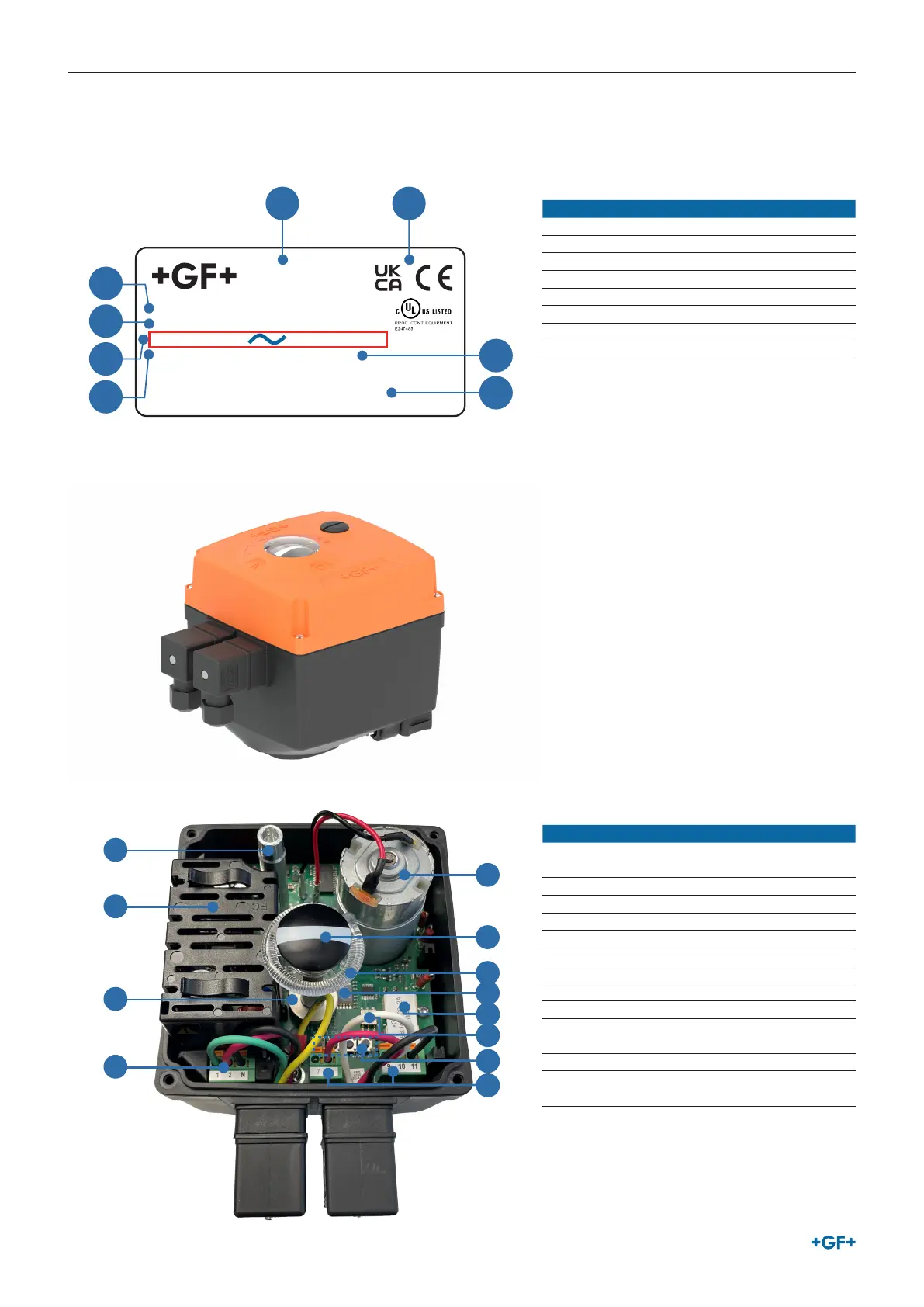

3.5 Design and function
3.5.1 Identification
Type EA25
198153182
PP-GF
100-230V
ED 100%
2 00000000 000
www.gfps.com
IP68
198151300
50/60Hz
40VA
1
6
2
3
4
5
8
7
Pos. Designation
1 Type plate (e. g. EA25)
2 Assembly number
3 Housing material
4 Voltage type
5 Duty cycle/protection rating
6 Nominal power
7 Serial number
8 Approvals & CE-mark
3.5.2 Design EA15
5
6
7
8
1
2
3
4
9
10
11
12
Pos. Designation
1 Shaft for emergency manual override hand
crank
2 Power supply with cover
3 Digital position detection
4 Control power for OPEN/CLOSE
5 DC motor
6 Optical position indicator
7 Light tube for LED status feedback
8 7 segment error display
9 Relays for position feedback OPEN/CLOSE
10 Heating element (temperature threshold
control)
11 Buttons for end position adjustment
12 Terminal block to connect position
feedback”
