Electric Actuators Type EA15-250
6.5 Performing a factory reset
When performing a factory reset, all previously saved positions will be deleted, and a possible color inversion will be cancelled.
1. Open cover. To do so, loosen the 4 screws (torx size 20).
2. Press the SET + CW buttons. The factory reset is performed.
3. Now the status feedback LED is blinking yellow and the Error Code „e“ is shown .(Error in position detection) on the 7-segment
display. All preciously stored positions are deleted.
4. Readjusting the end positions, see Chapter “Adjusting end positions”.
5. As minimum requirement OPEN and CLOSE positions have to be adjusted
6. Reinstall the cover and fasten it with the 4 screws.
7 Help in case of faults
7.1 Error code indicator
Error code indicator
8.

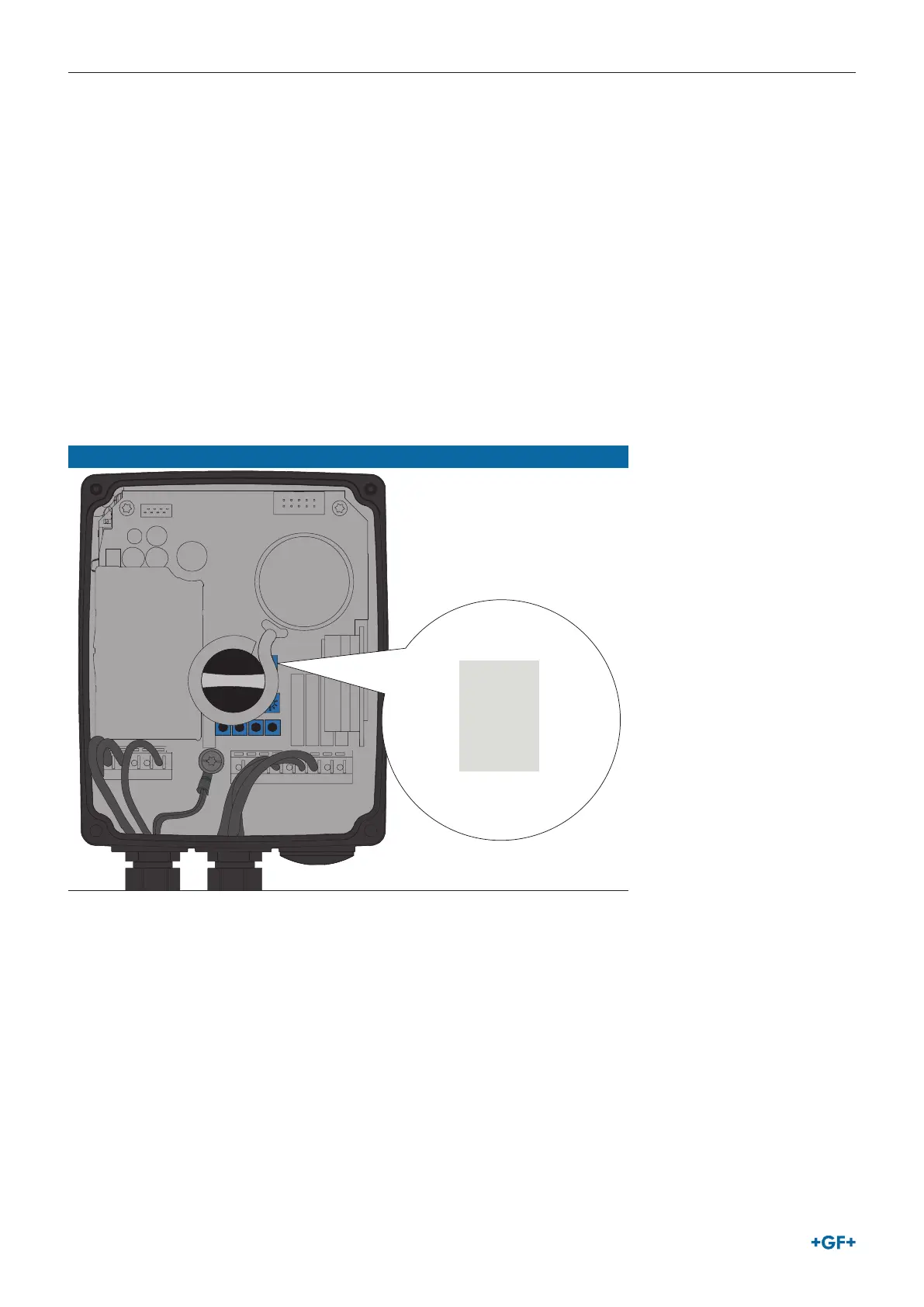

7 segment display on the base board
In case of an error code, the following events may occur:
•
The LED flashes yellow (except during a power outage).
•
The “ready-to-operate” signal (terminal 5.6 NO) drops.
•
The 7 segment display is illuminated on the base board, see Chapter “Assignment of error codes”.
•
If the monitoring accessories are installed, the LED on the BCD switch, of which the set value has been exceeded, will also light
up.
