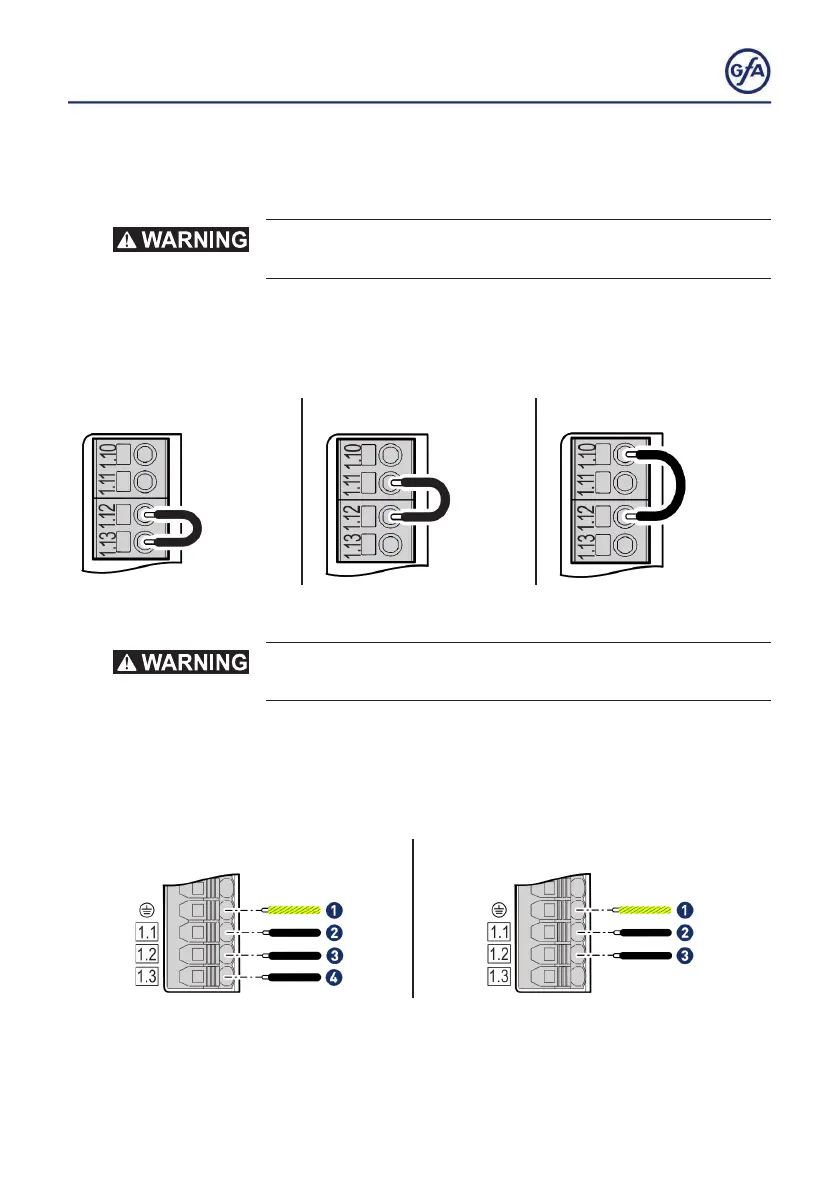

5.5 Setting the operating voltage
Danger to life due to electric shock!
▪ Carry out the following steps only in a de-energized state.
You select the local operating voltage with a jumper on
terminals X1. Selectable: 220V, 460V or 575V (+/- 10%).
▪ Set the bridge according to the operating voltage as shown.
220V 460V 575V
5.6 Connecting the door control to the power grid
Danger to life due to electric shock!
Carry out the following steps only in a de-energized state.
You can operate the door control on a 3 ~ or 2 ~ power grid.
Select the cable cross-section according to the national regula-
tions in order to connect the door control to the power grid.
Connect the door control to the power supply as shown.
3~ power supply 2~ power supply
