GFA DC 8010 - 3.3 Status displays of the door control

5

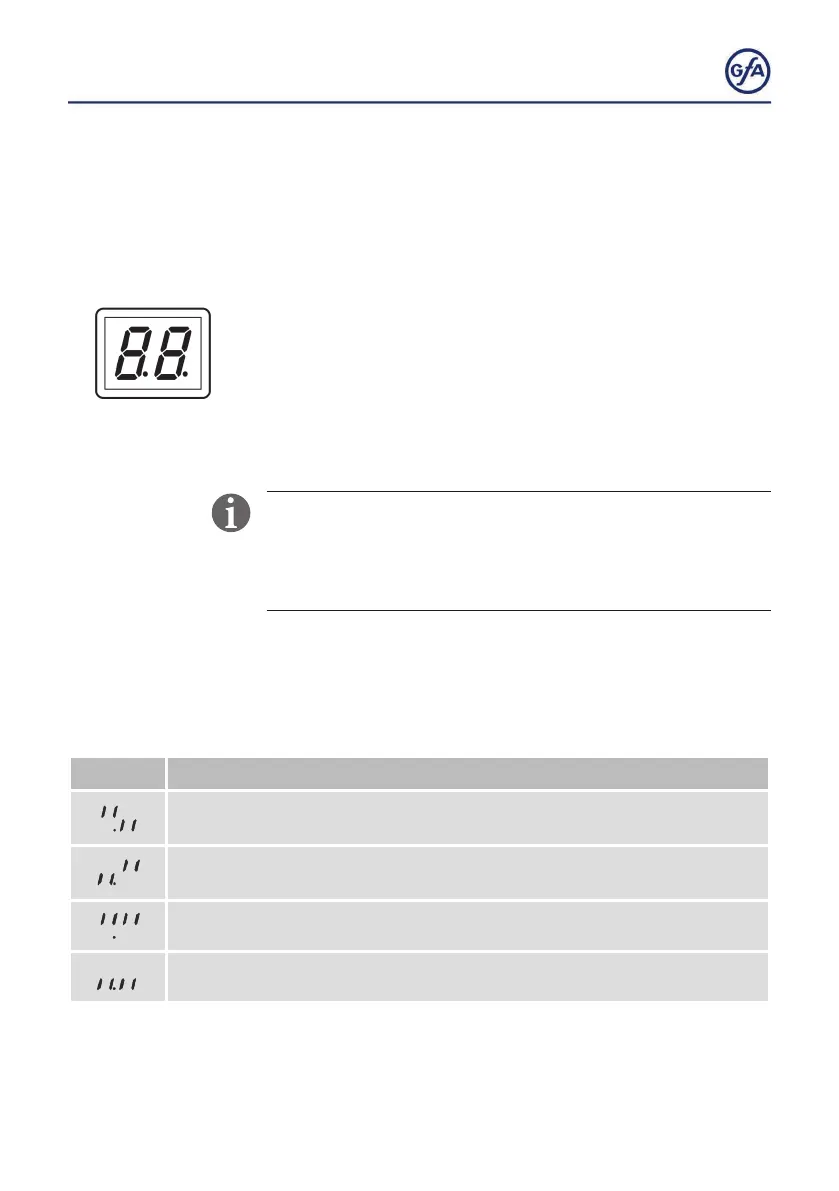

3.3 Status displays of the door control
Status displays
The following explains the symbols that the display of the door
control can represent.
▪ The display of the door control consists of a double-digit
seven-segment-display.
▪ The display can show symbols, letters, or numbers.
▪ Thegureshowsthedisplaywhenallsegmentsare
illuminated.
An
E alternating with a number on the door control stands for a
movement command.
An
F alternating with a number on the door control stands for a
fault indication. See Chapter 8.2.
Status display during initial operation
Thesesymbolsappearonlywhilethenallimitpositionsareset.
Display
Description
Changing output rotating direction is active
SeeChapter6,settingnallimitpositions
Changing output rotating direction is completed
SeeChapter6,settingnallimitpositions
Flashing:TeachinginnallimitpositionOPEN
Flashing:TeachinginnallimitpositionCLOSE
