Giga-tronics 58542 - Figure 1-1: Instrument Linearity

58452 VXIbus Universal Power Meter
1-6 Publication 21555, Rev. E, September 2002

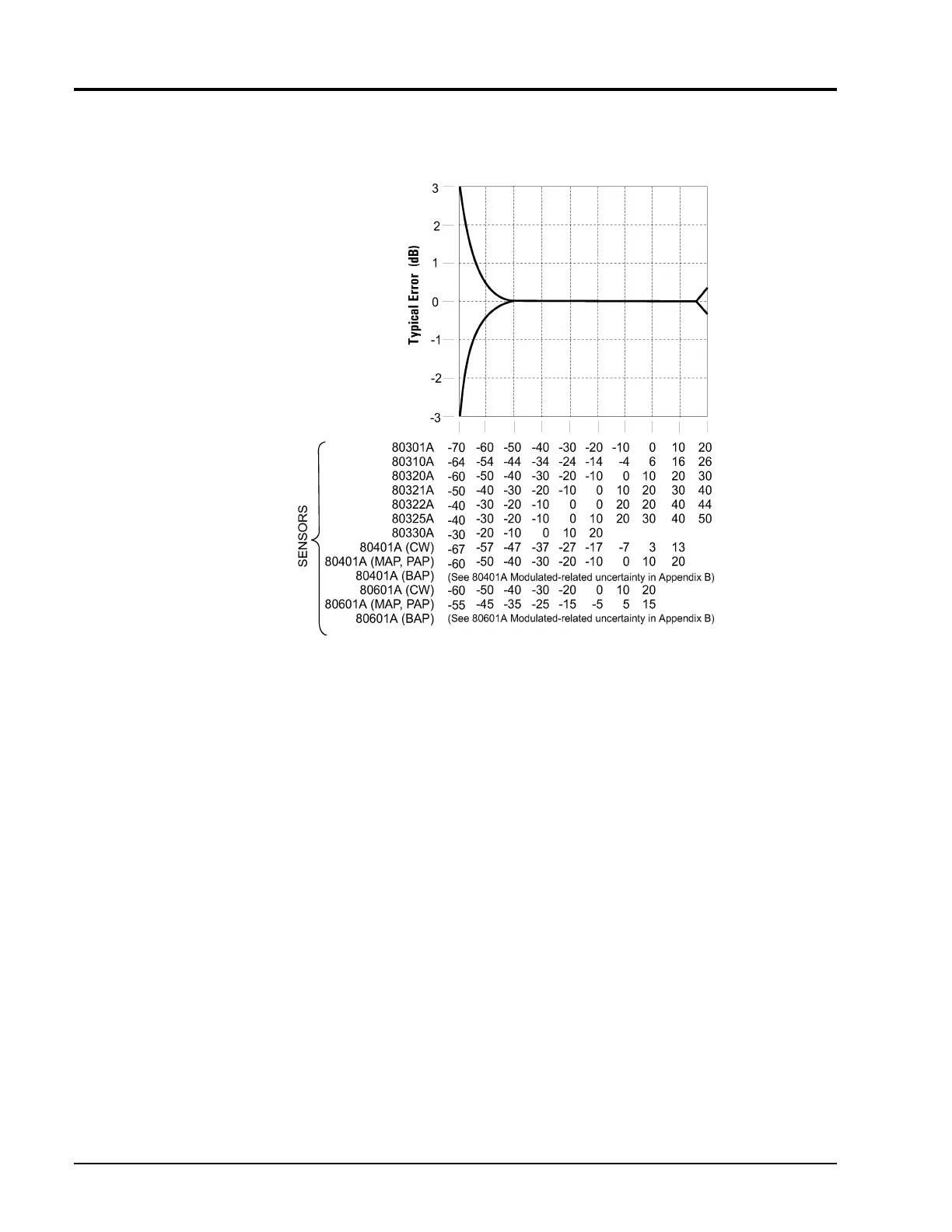

Figure 1-1 illustrates the instrument Linearity plus Typical Noise and Zeroing Error vs Input Power.
(The X-axis scale is sensor dependent)
Figure 1-1: Instrument Linearity
