2.5.17.1 V
PROP
F Configuration
2.5.17.2 Cal Factor Error Control
• See Error Messages in Section 2.5.34
• Selected basic SCPI syntax and execution errors apply to these commands
• Device-specific errors include the following and other -300 level errors
• A common device-specific error occurs when the frequency sent to the 58542 in the
SENS#:CORR:FREQ ### command is outside the sensor operating frequency range. For example,
sending SENS1:CORR:FREQ 18.4e9 when an 18GHz (max) 80301A CW Power Sensor is
attached will yield a device-specific error

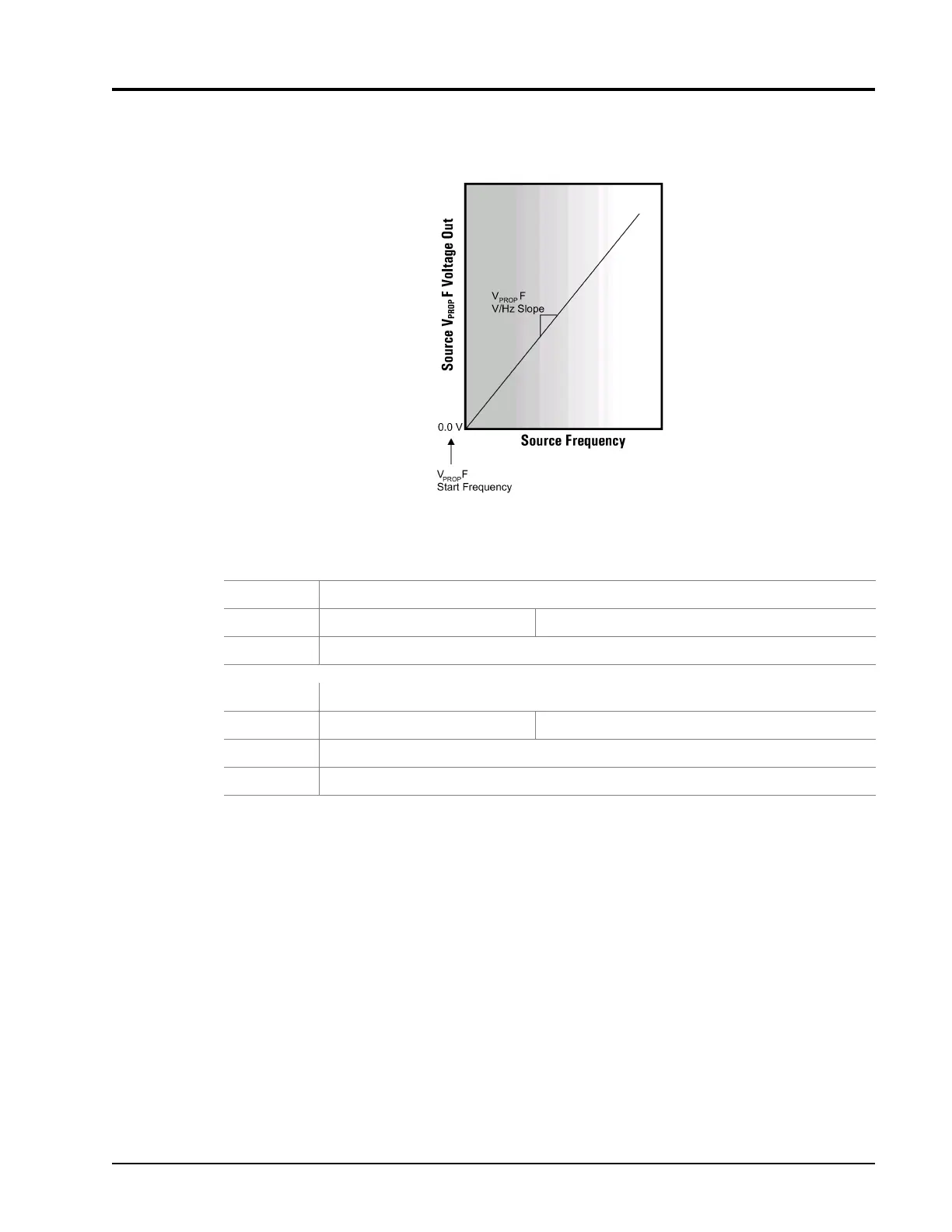

Figure 2-8: V
PROP
F Configuration
MEM:SLOP
Syntax:
MEMory[:TABLe]:SLOPespace<Volts per Hz>
Example:
OUTPUT @PWR_MTR;MEM:SLOP 1E-9 ! SETS V
PROP
F SLOPE TO 1 V/GHZ
Description:
This command sets the V/Hz relationship for automated Cal Factor correction.
Syntax:
MEMory[:TABLe]:SLOPe?
Example:
OUTPUT @PWR_MTR;MEM:SLOP? ! QUERIES V
PROP
F SLOPE VALUE
Response:
The voltage to frequency value set that corresponds to source’s V
PROP
F output.
Description:
This command sets the V/Hz slope relationship for V
PROP
F frequency correction.
