power supply plug will be connected, to position 0 (zero)� Have the socket
cable section checked by qualied staff to make sure it suits the power
absorbed by the device�
Loosen the screws that x the
left side of the oven and remove it
(Fig. 10). The exible cable must
be in polychloroprene or equivalent
oil-resistant synthetic elastomer
sub-sheath� Use a cable with section
suitable to the load corresponding to
every appliance, as indicated in the
table (tab. 1)�
Insert the power cord into the hole of the cable gland located on
the left bottom side of the oven�
Connect the cable to the terminal block following the instructions
given in tab. 2�
Secure the cable with the cable gland�
The supply voltage of the appliance is operation must not
deviate from the nominal voltage by ± 10%�
Theappliancemustbeincludedintoanequipotentialsystemwhoseefciency
is checked in compliance with the standards in force� For the connection use
the clamp, placed on the frame and marked with the symbol Fig. 11, to
which a cable with the minimum section of 10 mm² must be connected�
For gas ovens, wait until the gas connection to the appliance has also been
completed before re-mounting the side panel of the oven; instead, for electric
ovens,onnishingtheelectricconnection,re-mountthesidepanel.
Gas Model
SEHG061 SETG061 SEHG062 SETG062 SEHG101 SETG101 SEHG102 SETG102 SEHG201 SETG201 SEHG202 SETG202
Weight 135 135 190 190 165 165 220 220 270 270 350 350
Voltage 1N 230V 1N 230V 1N 230V 1N 230V 1N 230V 1N 230V 1N 230V 1N 230V 1N 230V 1N 230V 1N 230V 1N 230V
Frequency (Hz) 50 50 50 50 50 50 50 50 50 50 50 50
Absorbed power
(kW)
1.4 0.4 1.4 0.4 1.7 0.7 3.3 0.8 3.3 0.8 4.1 1.6
Minimum power
cable section
(mm
2
)
3 x 1 3 x 0.75 3 x 1 3 x 0.75 3 x 1 3 x 0.75 3 x 1 3 x 0.75 3 x 1 3 x 0.75 3 x 2.5 3 x 1

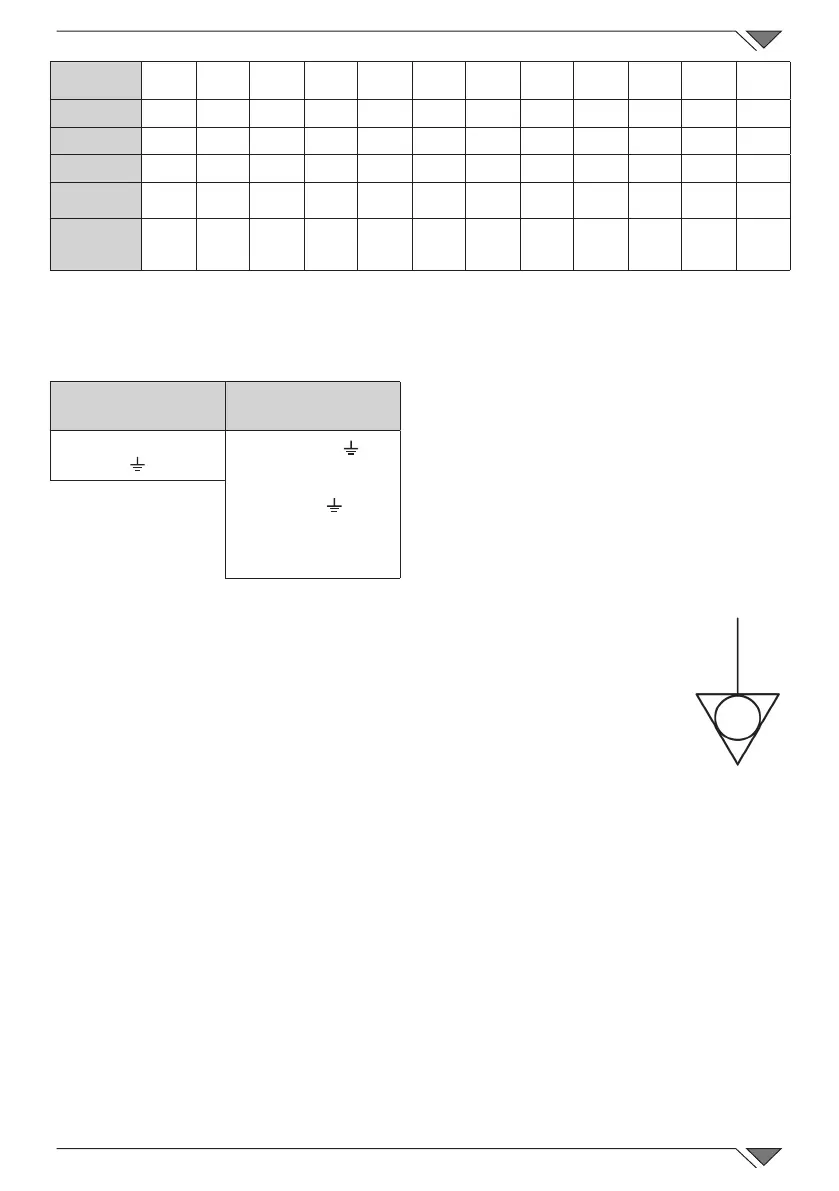

tab. 1
Electric ovens Gas ovens
L1 L2 L3 N
L N
Between phase
and
there must be
a difference in
potential of 230 V�
tab. 2
Fig.11
