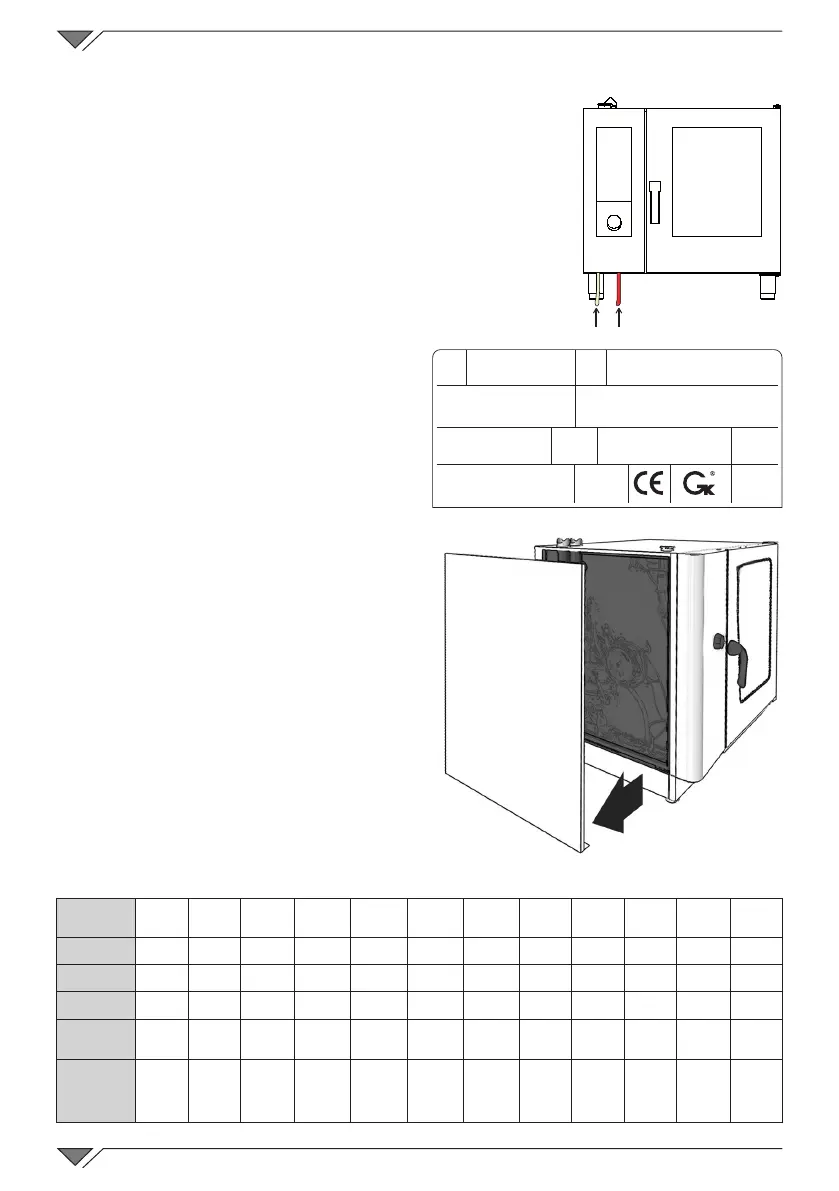

1.5 Connection to detergent and rinse
For proper startup of washing steps you need to
connect the oven to the tanks of detergent and
rinse aid� To connect you must insert the two pipes,
white one for detergent and red one for the rinse
agent in the respective canisters� The two pipes
are located at the bottom left of the oven(g.8)�
1.6 Electric connection
As prescribed, the electrical system
musthaveanefcientearthsystem,
as required by the regulations in
force� The electrical safety of the
appliance can only be ensured when
the electrical system is conform�
Before making the electrical connection,
check the mains voltage and frequency
values to ensure that they conform to
the requirements of the appliance, as
indicated on its data plate (Fig. 9)�
For direct connection to the mains,
a device, sized according to the load,
must be placed between the appliance
and the mains itself, which ensures
disconnection� Its contacts should have a
minimum opening distance that enables
complete disconnection under the
conditions of category III overvoltage,
according to installation rules; this device
should also be located so that it can be
easily used by the operator at any time�
Turn the master switch, to which the
Fig. 9
POWER SUPPLY
TOT. POWER kW
OVEN POWER kW
MOD NR
BOILER POWER kW 1,0
3N 400V AC 50 HZ
10,0
SEHE061W 000000/01/16
11,4 IP
Fig. 10
Electric Model SEHE061 SETE061 SEHE062 SETE062 SEHE101 SETE101 SEHE102 SETE102 SEHE201 SETE201 SEHE202 SETE202
Weight 107 107 170 170 140 140 190 190 260 260 340 340
Voltage 3N 400V 3N 400V 3N 400V 3N 400V 3N 400V 3N 400V 3N 400V 3N 400V 3N 400V 3N 400V 3N 400V 3N 400V
Frequency (Hz) 50 50 50 50 50 50 50 50 50 50 50 50
Absorbed
power (kW)
11.4 10.4 21.4 20.4 16.7 15.7 28.3 25.8 33.3 30.8 54.1 51.6
Minimum
power cable
section
(mm
2
)
5 x 2.5 5 x 2.5 5 x 10 5 x 10 5 x 4 5 x 4 5 x 10 5 x 10 5 x 10 5 x 10 5 x 16 5 x 16
