GL Sciences OPTIC-4 - Page 38

OPTIC-4 User’s Guide
Issue 5.3
Hardware
Page 3-6
Side view
Top view

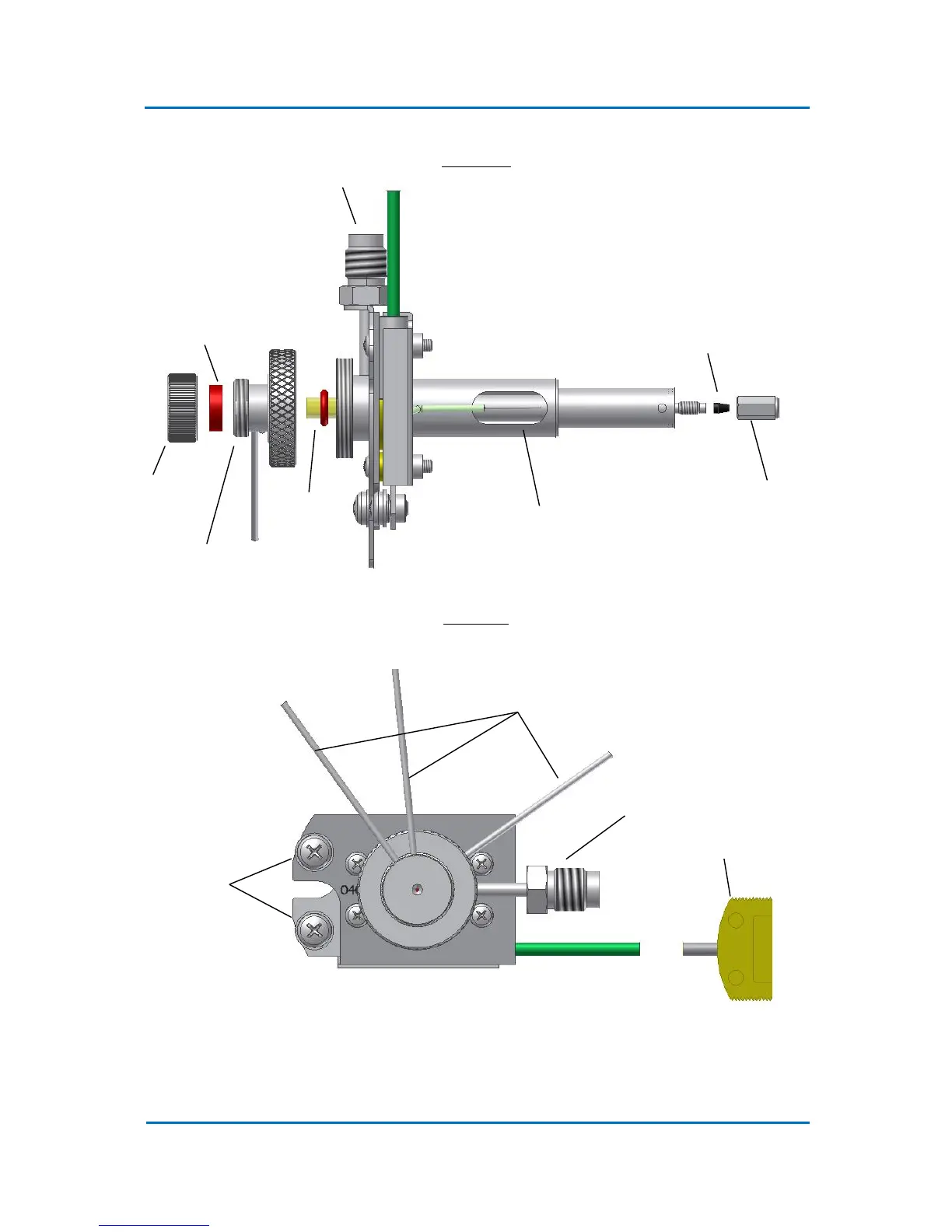

Figure 3.5 Inlet Port
Top Boss
Septum Nut
Septum
Liner and
O-ring
Inlet Body
Ferrule
Bottom Nut
Cooling Gas In
Thermocouple
Connector
Power
Connections
Gas Lines
Cooling Gas in
