FC9000-UM-251-9370 12-7
12 Target electrical component for WEEE instruction

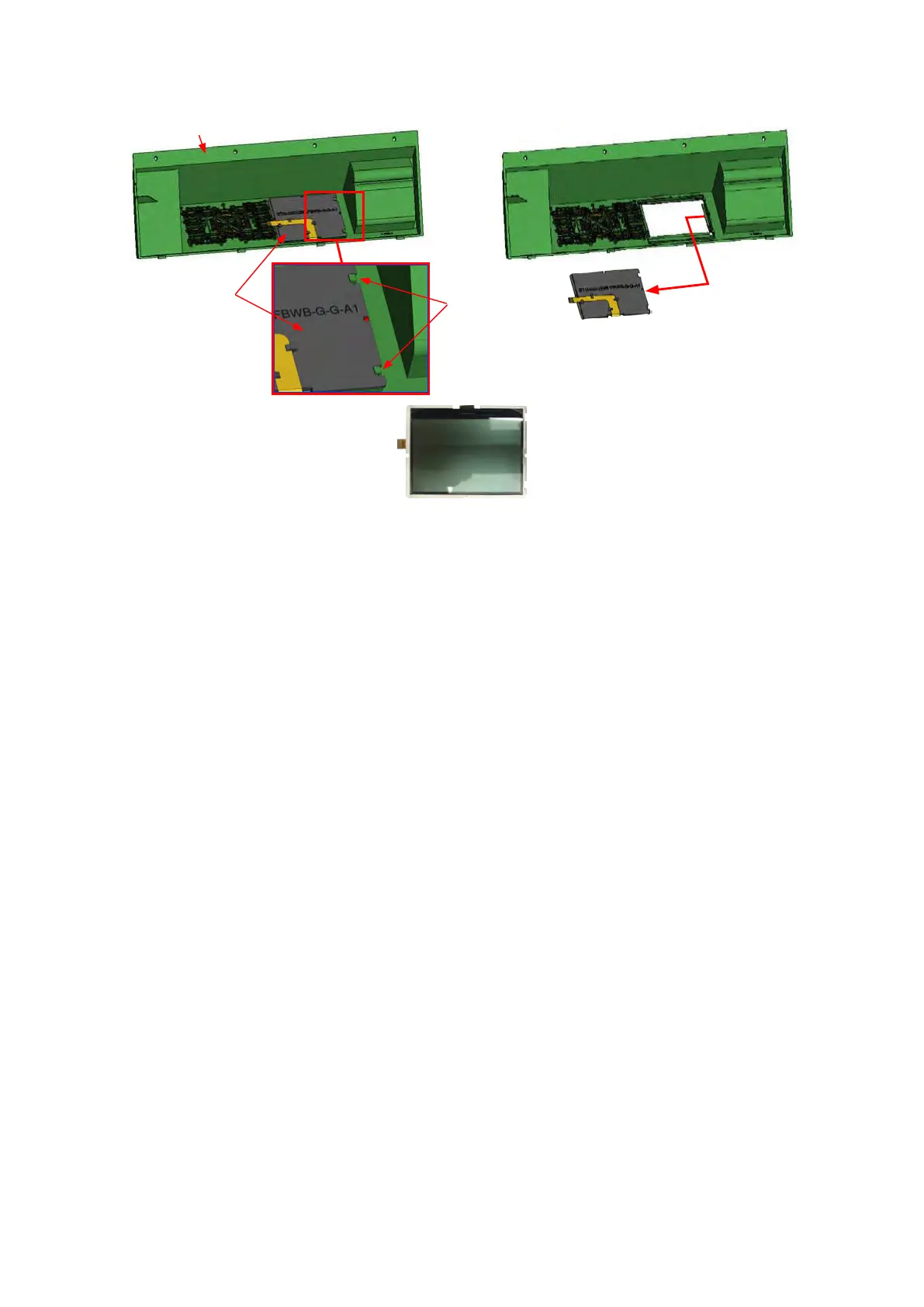

(7) Slide the LCD to the left from the hooks, and then detach the LCD from the control panel cover.
Hook
LCD
Control panel cover
