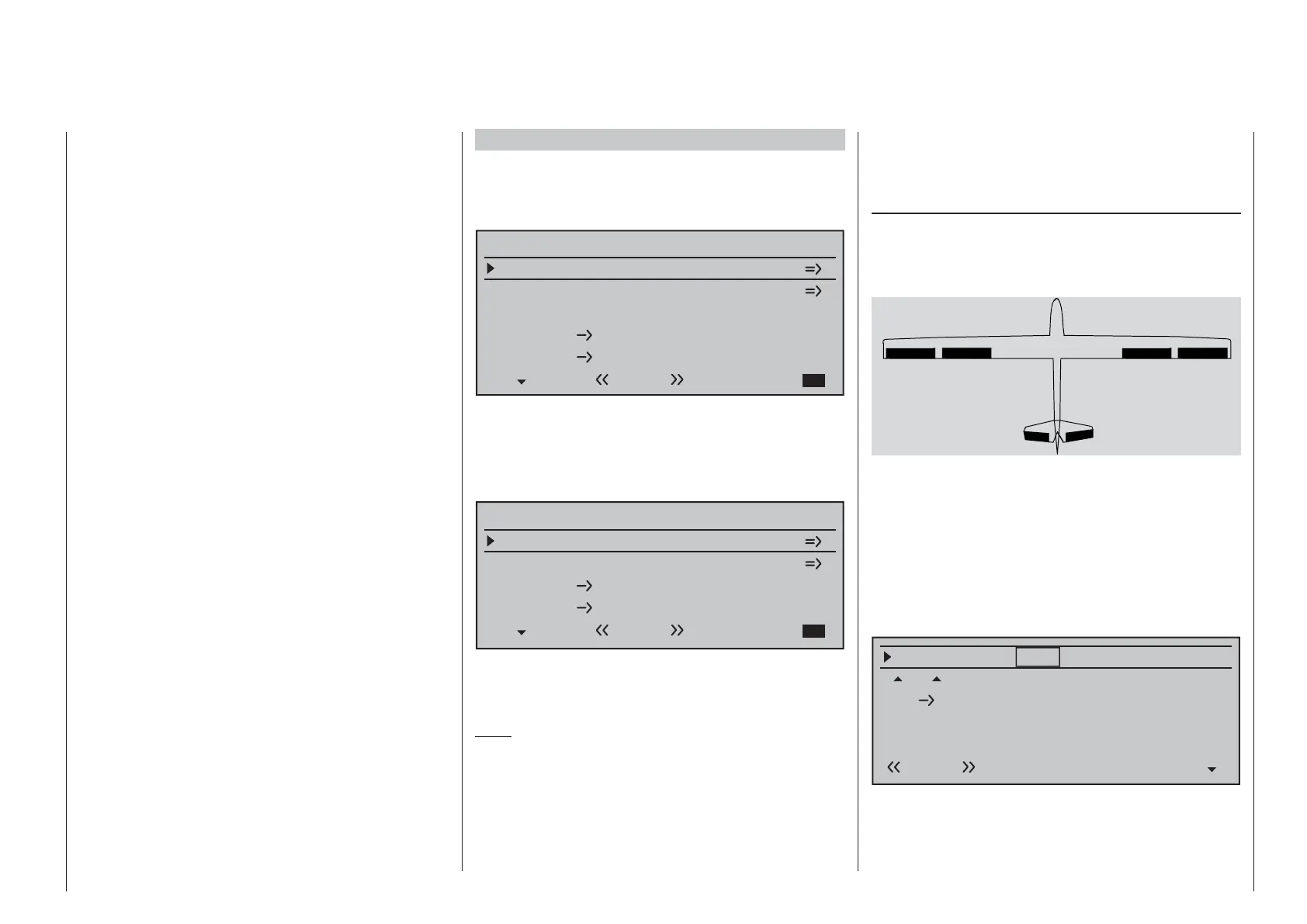

Detail program description - Wing mixers
Values in the range -150 % to +150 % are possible,
so as to adjust the function to the direction of servo
rotation or direction of aileron defl ection.
A simultaneous tap on the cd or ef keys of the
right touch pad (CLEAR) will reset a changed value
in a given active (inverse video) fi eld back to 0 %.
The "usual" values for this mixer are in the low two-
digit range.
Model type: "2/4AIL 1/2/4FL"
If you have entered "2AIL 1FL" for the "Aileron/
camber fl aps" line on the »Model type« menu
(page 94), then the "Wing mixers menu" on your
transmitter will match the following screen image:
Aileron differential
Brake settings
0%
Aileron
0%
WING MIXERS
Flaps
elevator
0%0%
–––
–––
rudder
2
6
4
3
Normal
Multi-flap menu
If, on the other hand, "2/4AIL 1/2/4FL" has been
entered for the "Aileron/camber fl aps" line of the
»Model type« menu, page 94, then the "Wing mixers
menu" on the transmitter should correspond to the
fi gure below:
Brake settings
Aileron
0%
WING MIXERS
Flaps
elevator
0%0%
–––
–––
rudder
2
6
4
3
Normal
Multi-flap menu
Regardless of the combination of aileron and fl ap
servos you choose, all of the parameters available
can be adjusted separately for each fl ight phase.
Note:
For almost any menu option, you have the option
of checking your settings by switching to the servo
display screen, which is accessed with a simultaneous
tap on the ef selection keys of the left touch pad.
If you do, note however that the vertical lines on the
»Servo display« move in the same direction for
ailerons and in the opposite direction for fl aps.
Before we address the details of this menu we would
like to provide a brief explanation of the different
display modes for the multi-flap menu:
Model type: "2 AIL 1 FL"
If servos have been connected to the receiver as
described on page 61 and selected accordingly in the
»Model type« menu, page 94, then the abbreviations
"AILE" and "FLAP" refer to the following fl aps:
AI
left
FL FL AI
right
Since the options available on the wing mixer menu
and its sub-menus vary according to the number of
fl ap servos specifi ed on the »Model type« menu,
page 94, the list contains only those set-up options
available for the given model.
Therefore, with a preset to "2AIL 1FL", the options for
setting aileron functions to fl aps will be suppressed,
as will all setting options throughout the (right-side)
column labeled "FL2".
Fl.pos
AILE
FL
0%
Normal
HR
WK
WK2
FLAP
+100%
0%
0%
+100%
+100%
+100%
0%0%
0%
0%
0%0%
In addition, the settings for "Aile(ron) diff(erential)"
are not found on the "multi-fl ap menu", as with "2AIL
2/4FL", but one level higher in the "Wing mixers"
menu, see the screenshot at top left.
