66 Detail program description - Loading a new memory location
Anyone who has worked through to this part of
the manual has certainly already tried out a bit of
programming. Nevertheless a detailed description of
every menu should not be left out.
This section begins with the loading of a "free"
memory location, a procedure which would be
performed if a new model was being "programmed".
#01
0:00h
Stop watch
Flight tim
K78
0:00.0
4.1V
0:00.0
RX VOLT:0.0v
00
0
0
00:00h
M
V

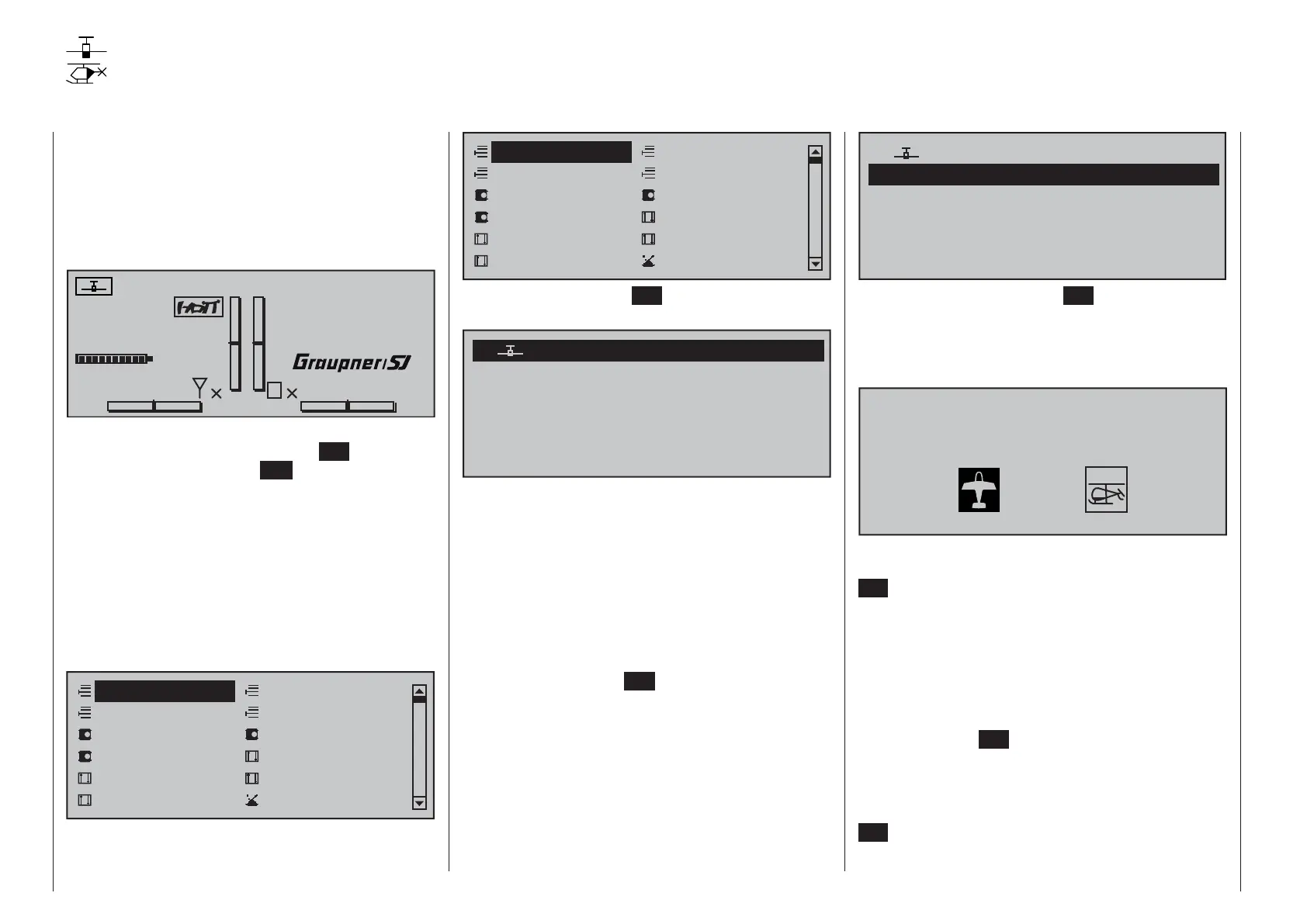

From the basic display, a jump to the "Multi-function
list" is made with a tap on the center
SET key of the
right touch pad. (The center
ESC key of the left touch
pad will cause a jump back to the basic display.)
By default, when the multi-function list is called for
the fi rst time after switching on the transmitter, the
»Model select« menu option will be active and
displayed in inverse video. Otherwise use the cd
or ef selection keys of the left or right touch pad to
select the »Model select« menu option , whereby the
upper of the two following fi gures shows a selection
list for a fi xed-wing model and the lower shows the
selection list for a helicopter model.
Servo adjustment
Stick mode
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch display
Model select
Copy / Erase
Suppress codes
Suppress models
Base setup model
Model type
Detail program description
Loading a new memory location
Servo adjustment
Stick mode
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch display
Model select
Copy / Erase
Suppress codes
Suppress models
Base setup model
Helicopter type
Tap briefl y on the center SET key of the right touch
pad to open this menu option:
03
04
05
¿¿¿
free
¿¿¿
02
01
06
E16
¿¿¿
free
¿¿¿
¿¿¿
free
¿¿¿
¿¿¿
free
¿¿¿
¿¿¿
free
¿¿¿
00:12h
In the transmitter's delivered state, the fi rst model
memory is initialized to the "fi xed-wing model" type
and the receiver in the delivery is "bound" to this
model. The time display located near the line's middle
indicates the overall operating time of the respective
model memory.
The remaining memory locations, marked with
"
ÄÄÄfreeÄÄÄ", are still unoccupied and therefore
also "non-bound". If you wish to program a fi xed-wing
model then, after leaving the »Model select« menu
with a tap on the center
ESC key of the left touch pad,
programming of the model can begin right away … or
now use the c or d keys of the left or right touch pad
to select one of the free memory locations …
03
04
05
01
06
R16
¿¿¿
free
¿¿¿
¿¿¿
free
¿¿¿
¿¿¿
free
¿¿¿
¿¿¿
free
¿¿¿
00:12h
¿¿¿
free
¿¿¿
02
… and then tap on the center SET key of the right
touch pad to confi rm the choice.
Afterward you will be prompted to select the basic
model type, i.e. either "winged model" or "helicopter
model".
Select model type ( free model memory )
Use the e or f keys of the left or right touch pad to
select the basic model type then tap on the center
SET key of the right touch pad. This initializes the
selected model memory with the selected model type
and the display will return to the base screen. The
memory location is now accordingly occupied.
However, if you wish to begin with a helicopter,
select one of the memory locations marked
"
ÄÄÄfreeÄÄÄ" with the c or d keys of the left or
right touch pad then confi rm the selection with a brief
tap on the center
SET key of the right touch pad. You
will be now be prompted to specify the basic model
type, in this case the "helicopter model". Select the
appropriate symbol with the e or f keys of the left
or right touch pad then again tap briefl y on the center
SET key of the right touch pad to confi rm the choice.
This initializes the selected model memory with the
