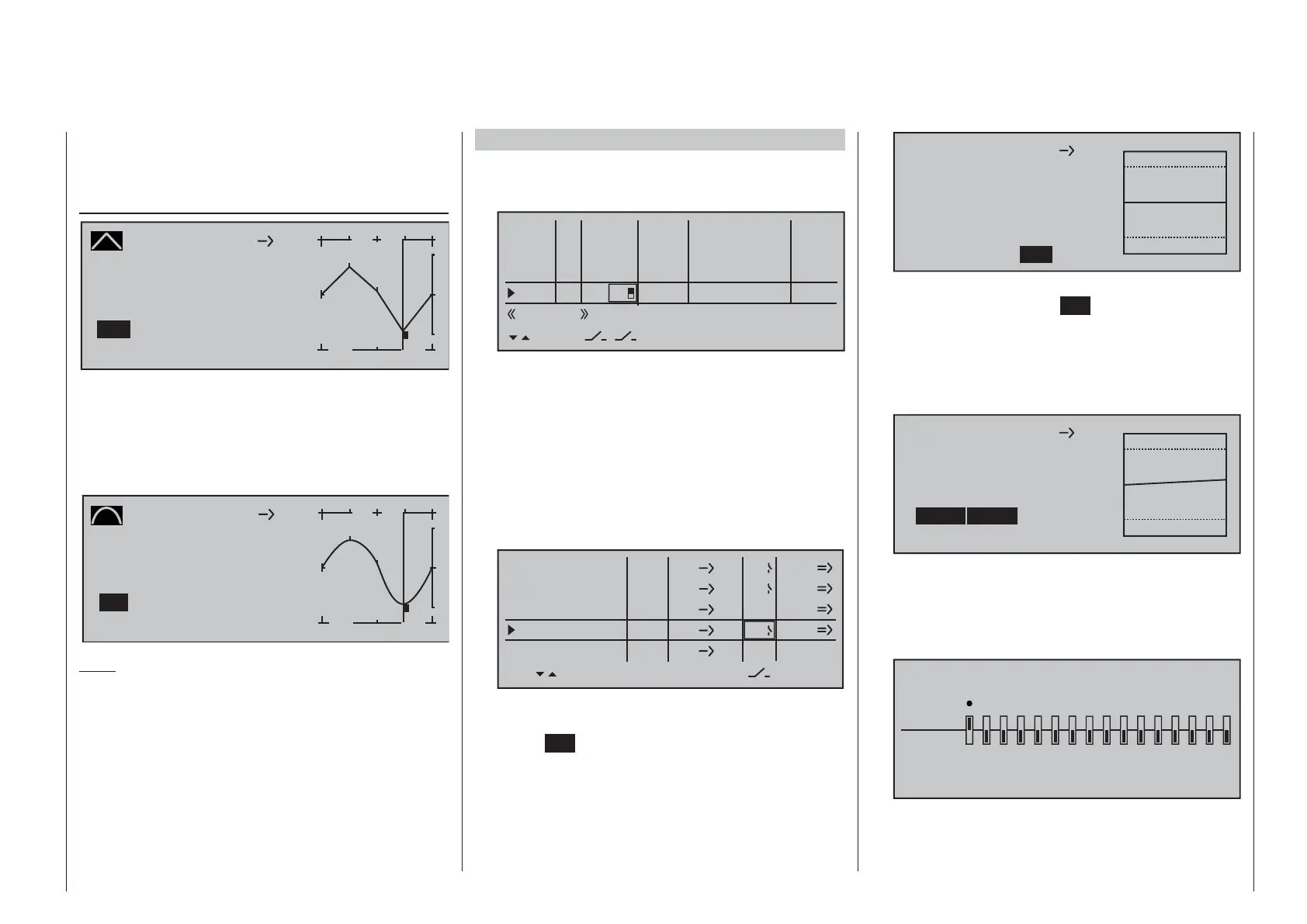

201
Detail program description - Free mixers
Please note that the percentage value on the •
"Output" line always relates to the current joystick
position and not to the position of the point.
Smoothing the curve
Curve MIX 9
Curve
Point
Output
Input +50%
–75%
3
+
–
100
¼ O U T P U T
2
–75%
8
10
1
off
3
This "angular" curve profi le created in the example
can be smoothed automatically simply by pressing a
button. Do this – from a situation as illustrated – with a
brief tap on the d selection key of the left touch pad.
This will result in a switchover from "(Curve) off" to
"(Curve) on" (or vice versa):
Curve MIX 9
Curve
Point
Output
Input +50%
–75%
3
+
–
100
¼ O U T P U T
–75%
8
10
on
2
1
3
Note:
The curves shown here are for demonstration
purposes only and are not at all representative of real
mixer curves. For real-world application examples, see
the programming examples on pages 274 and 313.
Examples:
To open and close an aero-tow, a switch, e.g. SW 1.
2, has already been assigned to control channel 8
in the »Control adjust« menu:
0%
+100%I5
I6
I7
I8
Typ
+100%
0.0 0.0
– travel + –time+
0%
+100%
+100%
0.0 0.0
0%
+100%
+100%
0.0 0.0
0%
+100%
+100%
0.0 0.0
GL
GL
GL
fr
fr
fr
---
---
---
Offset
GL
---
Normal
2
Subsequent aero-tow fl ying has proven that you
always have to fl y with the up-elevator held slightly
in during the tow. The solution will be to set up a
mixer that applies slight up-elevator trim to the
elevator servo connected to receiver output 3 when
the aero-tow release is closed. The screen-shot will
be familiar from page 194: here, the fourth linear
mixer has been set up for this function, with the
switch channel "S" as mixer input: Move the selected
switch to the OFF position and then switch …
EL
LinearMIX 1
type
6
from – Begr. +
EL
C1
8
3
EL
S
??
??
––––
LinearMIX 2
LinearMIX 3
LinearMIX 4
LinearMIX 5
to
Adjust
4
C4
2
off
off
off
… to the mixer confi guration page.
Here select STO under "Offset" then tap the
center
SET key of the right touch pad briefl y …
depending on the selected travel setting in the
»Control adjust« menu and the switch setting,
the offset value will jump to +X % or -X %, for
example:
S
Mix input
0%
Offset
EL
Linear MIX 4
0%
SYM ASY
STO
–100%
SET
Now change left to SYM under "Mixer ratio" then
tap briefl y on the center
SET key of the right touch
pad. The value fi elds are now highlighted. After
you have moved the selected switch to the mixer
ON position, use the selection keys on the right
touch pad to set the required symmetrical mixer
ratio, for example:
S
Mix input Offset
EL
Linear MIX 4
SYM ASY
STO
–100%
SET
+10%
+10%
2. If a multi- fl ap wing featuring a "crow or butterfl y
system" with (additional) airbrakes is intended,
and this brake system is to be tested with and
without airbrakes, then simply set channel 1 to
"MIX-only" …
MIX ONLY CHANNEL
MIXonly
normal
1
2
3
4
5
6
7 8 9 10111213141516
… and follow this by programming a free mixer
"C1 ¼ C1" to restore control over the airbrakes
