202 Detail program description - Free mixers
via servo 1. If you also assign a switch to this
mixer, then you will be able to switch this mixer on
and off as you please.
3. The fi nal example applies to model helicopters:
In the helicopter program, if you wish affect pitch
trim with a proportional control, e.g. one of the
slider controls in the middle of the console, then
assign one of these controls to this function in
the »Control adjust« menu; for example the
"I9" input. (However, leave the default value
of "GL" in the "Type" column as it is so this
confi guration, analogous to the free mixer yet to
be programmed, will be applicable globally for all
fl ight phases.) Finally, simply defi ne a LinearMIX
"9 ¼ 1" with a symmetric mixer ratio of, for
example, 25 %. Due to the internal coupling, this
transmitter control then acts equally on all of the
model's collective pitch servos without affecting
the throttle servo.

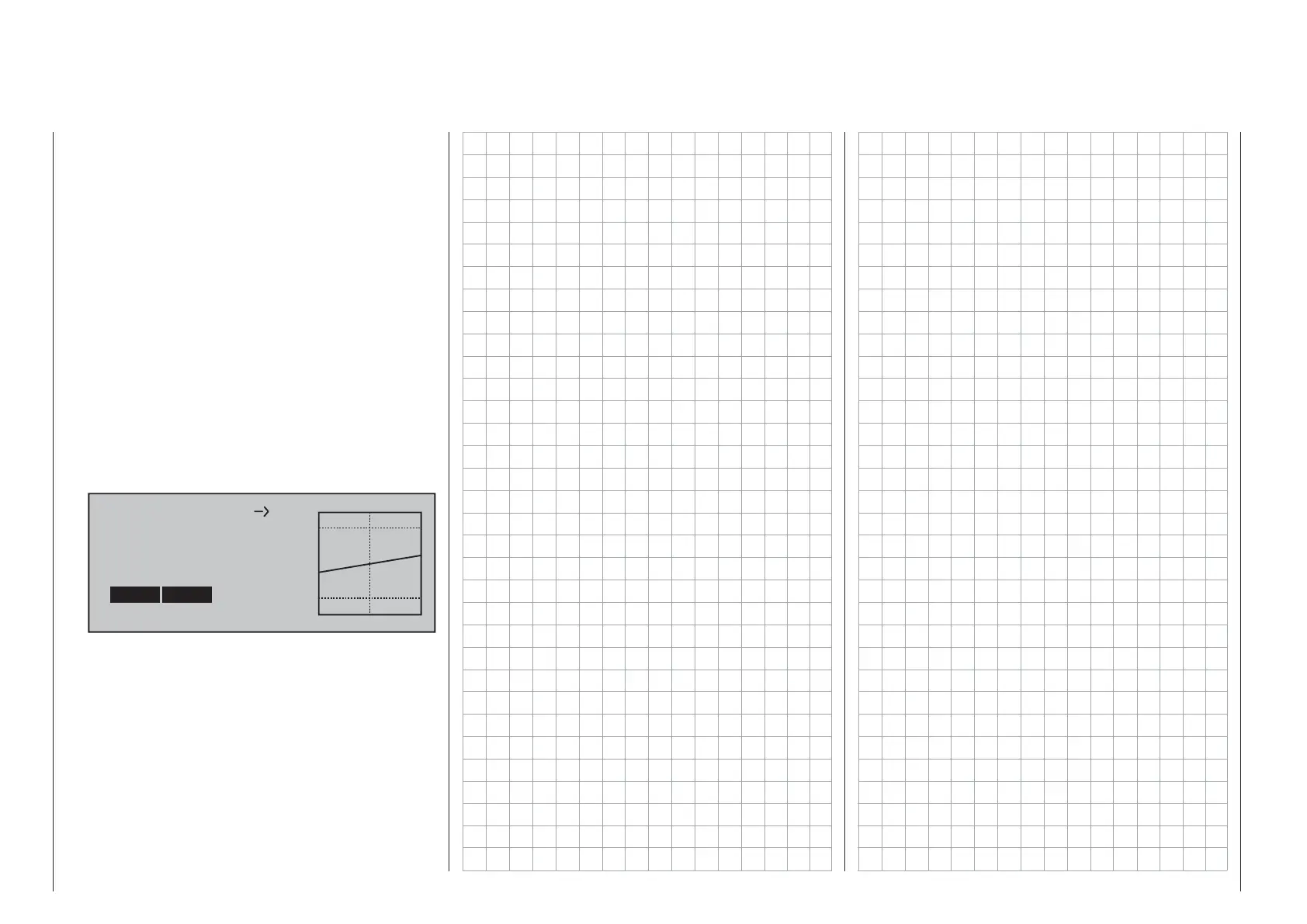

9
Mix input Offset
1
Linear MIX 5
SYM ASY
STO
0%
SET
+25%
+25%
Decouple the assigned transmitter control from
control channel 9 in the »MIX-only channel«
menu to ensure that any servo connected to
receiver output 9 can no longer be operated by
this transmitter control; see also page 205.
