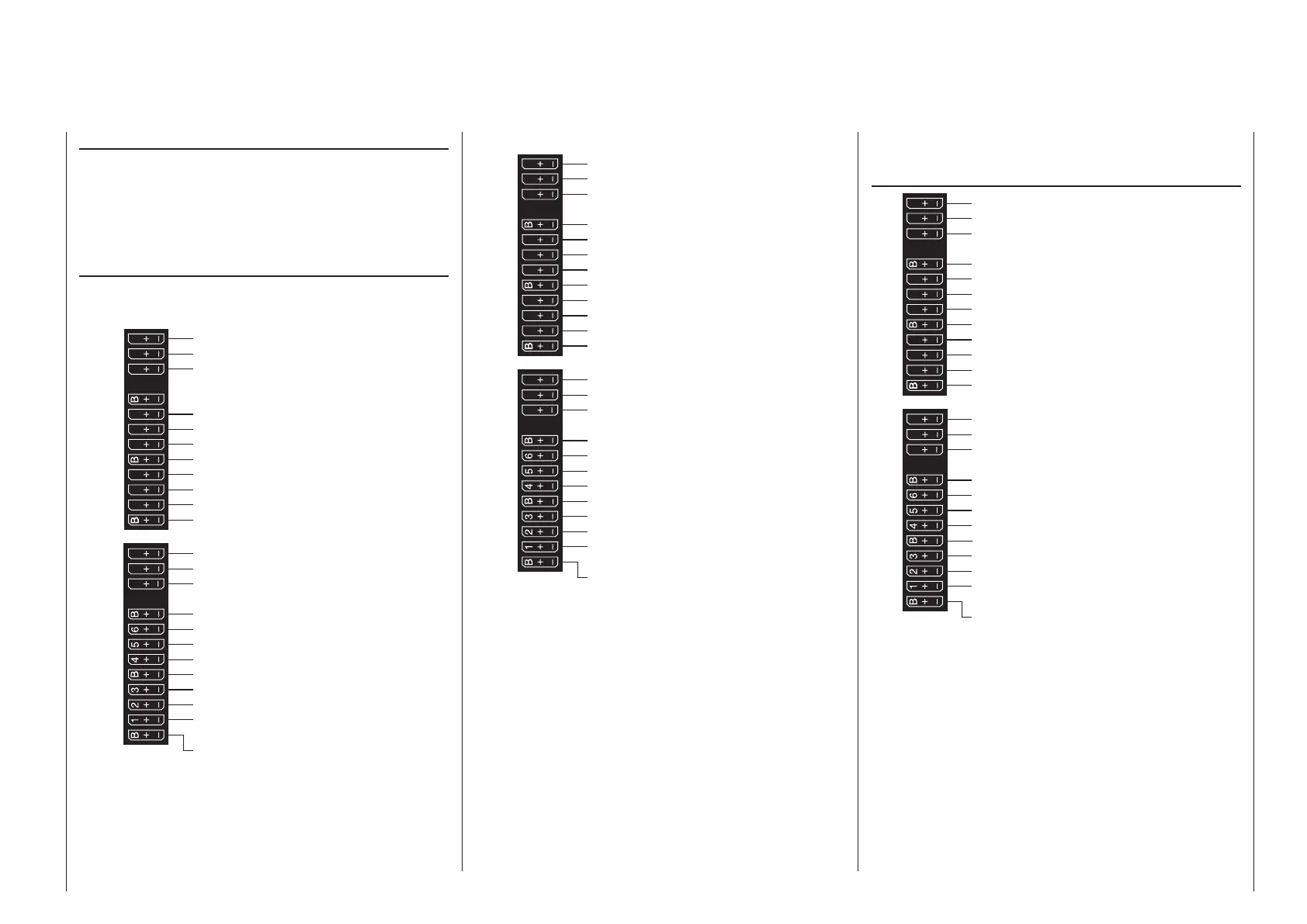

Winged models / Receiver layout
Installation notices
Servos MUST be connected to the receiver in the
sequence illustrated here.
Outputs which are not used are simply left empty. Also
be sure to follow the notices on the next pages.
Winged aircraft with and without motor having up
to 2 aileron servos and up to 4 fl ap servos …
… and tail plane type " normal" or "2 elevator
servos"
Receiver power supply
free or AIL2 left or aux. function
free or AIL2 right or aux. function
Rudder
Aileron or left aileron
Elevator or 1st elevator
free or 2nd Elevator or aux. function
Receiver power supply
Airbrake or throttle servo
or speed controller (electric motor)
Right aileron or aux. function
Flap or left flap
Right flap or free or aux. function
free or left flap2 or aux. function
free or flap2 right or aux. function
13 14 T
15 16
S
77
8
9
10 11 12
Receiver power supply
free or aux. function
free or aux. function
Telemetry connection
Receiver power supply
free or aux. function
free or aux. function
SUMO / SUMI-connection
Receiver power supply
Receiver power supply
… and tail plane type " V tail unit"
Receiver power supply
free or left AIL2 or aux. function
free or right AIL2 or aux. function
Aileron or left aileron
free or 2nd elevator or aux. function
Receiver power supply
Airbrake- or throttle servo
or speed controller (electric motor)
Right aileron or aux. function
Flap or left flap
Right flap or free or aux. function
free or left flap2 or aux. function
free or right flap2 or aux. function
13 14 T
15 16
S
77
8
9
10 11 12
Receiver power supply
free or aux. function
free or aux. function
Telemetry connection
Receiver power supply
free or aux. function
free or aux. function
SUMO / SUMI-connection
Receiver power supply
Receiver power supply
Left elevator/rudder
Right elevator/rudder
Delta/fl ying wing aircraft models with and without
motor having up to two aileron/elevator servos
and up to 2 fl ap/elevator servos
Receiver power supply
Receiver power supply
Airbrake- or throttle servo
or speed controller (electric motor)
13 14 T
15 16
S
77
8
9
10 11 12
Receiver power supply
Telemetry connection
Receiver power supply
free or aux. function
free or aux. function
SUMO / SUMI-connection
Receiver power supply
Receiver power supply
free or aux. function or AIL2 / left EL
free or aux. function or AIL2 / right EL
free or aux. function
free or flap / left elevator
free or flap / right elevator
free or aux. function or flap2 / left EL
free or aux. function or flap2 / right EL
free or aux. function
free or aux. function
AIL / elevator left
AIL / elevator right
free or aux. function
free or rudder
