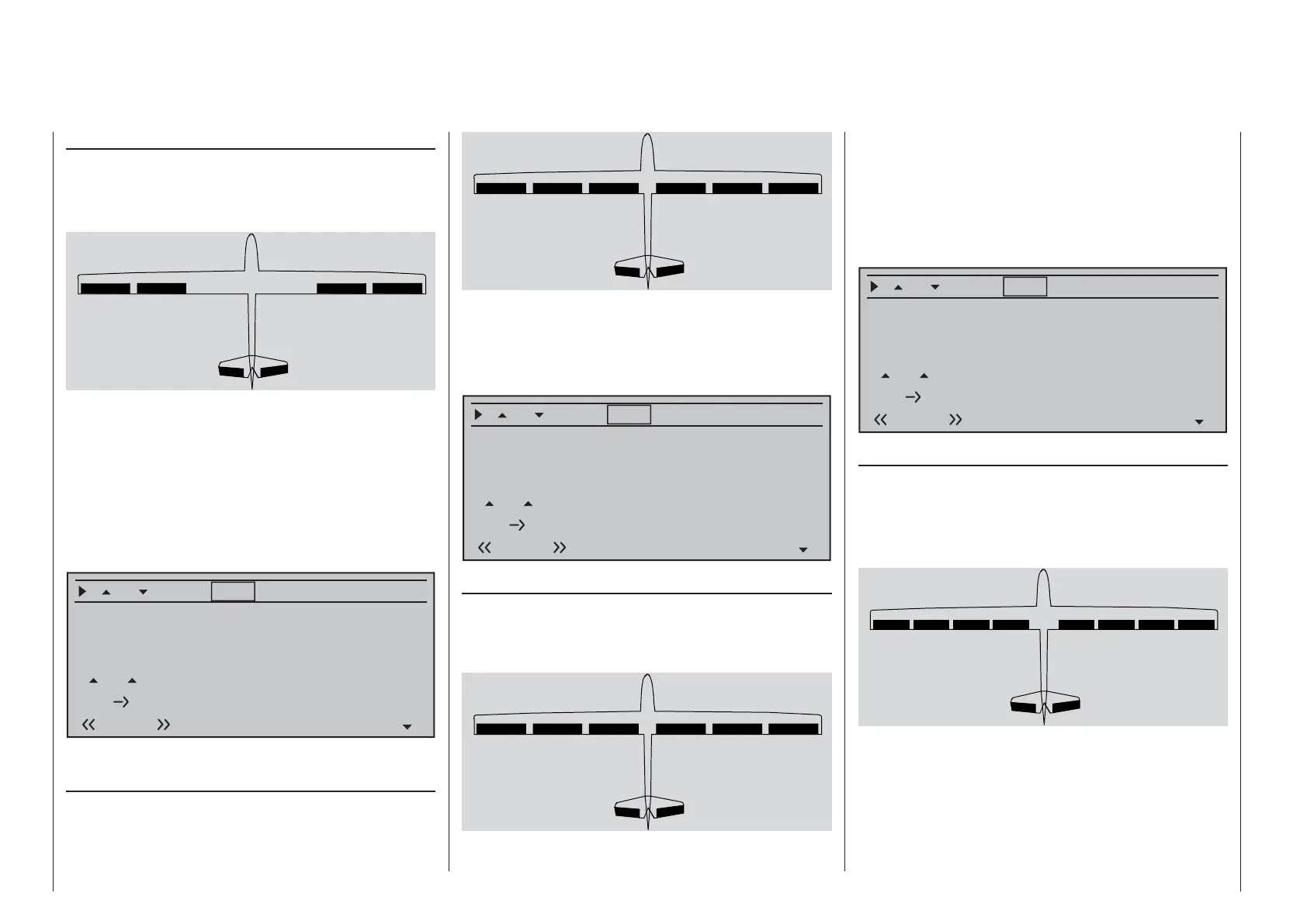

168 Detail program description - Wing mixers
Model type: "2AIL 2FL"
If servos have been connected to the receiver as
described on page 61 and selected accordingly in the
»Model type« menu, page 94, then the abbreviations
"AILE" and "FLAP" refer to the following fl aps:
AI
left
FL
left
FL
right
AI
right
Since the options available on the wing mixer menu
and its sub-menus vary according to the number of
fl ap servos specifi ed on the »Model type« menu,
page 94, the list contains only those set-up options
available for the given model.
Therefore, with a preset to "2AIL 2FL", all options
for setting options for a second set of fl ap pairs will
be suppressed throughout the (right-side) column
labeled "FL2".
Fl.pos
Diff.
Ail-tr
Al
Normal AILE
+100%
WK2
FLAP
0%
0%
0%
+100%
0%
+100%
0%
+100%
0%
0%
0%0%
+100%
0%
0%
0%
FL
El
Fl
+100%
+100%
+100%
+100%
0%0%
0%
0%
0%0%
0%
0%
Model type: "2AIL 4FL"
If servos have been connected to the receiver as
described on page 61 and selected accordingly in the
»Model type« menu, page 94, then the abbreviations
"AILE", "FLAP" and "FL2" refer to the following fl aps:
AI
left
FL
left
FL2
left
FL2
right
FL
right
AI
right
Since the options available on the wing mixer menu
and its sub-menus vary according to the number of
fl ap servos specifi ed on the »Model type« menu,
page 94, the list contains only those set-up options
available for the given model.
Fl.pos
Diff.
Ail-tr
AI
Normal AILE
+100%
FL2
FLAP
0%
0%
0%
+100%
0%
+100%
0%
+100%
0%
0%
0%0%
+100%
0%
0%
0%
FL
El
Fl
+100%
+100%
+100%
+100%
0%0%
0%
0%
0%0%
0%
0%
Model type: "4AIL 2FL"
If servos have been connected to the receiver as
described on page 61 and selected accordingly in the
»Model type« menu, page 94 , then the abbreviations
"AILE", "AILE2" and "FL" refer to the following fl aps:
AI
left
AI2
left
FL
left
FL
right
AI2
right
AI
right
Since the options available on the wing mixer menu
and its sub-menus vary according to the number of
fl ap servos specifi ed on the »Model type« menu,
page 94, the list contains only those set-up options
available for the given model.
Therefore, with a preset to "4AIL 2FL", all options
for setting options for the fi rst and second set of
aileron pairs as well as those for the fl ap pair will be
displayed throughout.
FL.pos
Diff.
Ail-tr.
Al
Normal AILE
+100%
FL
AILE2
0%
+100%
0%
+100%
0%
+100%
0%
+100%
0%
0%
0%0%
+100%
+100%
0%
0%
FL
El
Fl
+100%
+100%
0%
0%
0%0%
0%
0%
0%0%
0%
0%
Model type: "4AIL 4FL"
If servos have been connected to the receiver as
described on page 61 and selected accordingly in the
»Model type« menu, page 94 , then the abbreviations
"AILE", "AILE2", "FLAP" and "FL2" refer to the
following fl aps:
AI
left
AI2
left
FL
left
FL2
left
FL2
right
FL
right
AI2
right
AI
right
Since the "4AIL 4FL" selection represents the
maximum possible number of wing servos, in addition
to the columns labeled "AILE" and "AILE2" there will
now also be columns available labeled "FLAP" and
"FL2.
