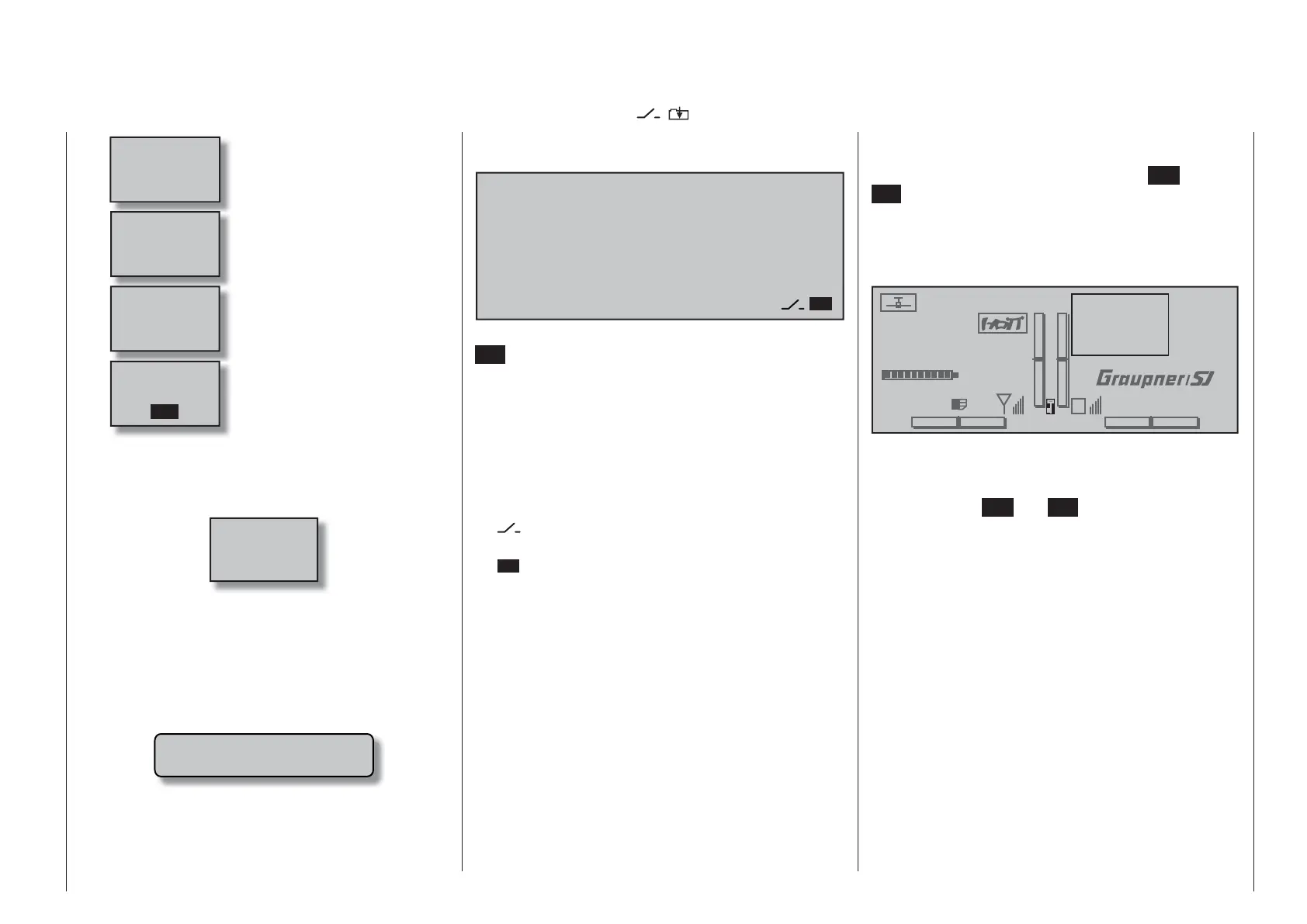

Transmitter description - Function fi elds and entry lockout
Fail Safe
setup
t.b.d.
Failsafe has not yet been
activated
Throttle
too
high!
Helicopter throttle joystick
or limiter too high
No
pupil
signal
Connection between
teacher and pupil is
interrupted
SD-CARD
INSERT
OK
No SD or SDHC memory
card in the card slot or
card is not legible
The transmitter has not been operated within
the time period specifi ed by the "Stick warning"
line of the »General basic settings« menu, see
page 260. The message …
!Stick!
…, die "WARNING" LED at the right next to the
on/off switch will blink and an acoustic warning will
sound. If the transmitter is not operated within the
next minute, the transmitter will switch itself off.
If battery voltage is too low, a model switch is
blocked for reasons of safety. An appropriate
message will appear in the screen:
not possible now
voltage too low
A lockout for the touch keys, and thus protection
against inadvertent use of all setting options, can be
established by touching and holding the
ESC and
SET keys simultaneously for about two seconds while
the
mc-20 HoTT transmitter is in its basic display.
This lockout condition is indicated by a key symbol,
located at the intersection point of the trim bars,
which is displayed in reverse video.
#01
0:00h
Stoppuhr
Flugzeit
K78
0:00.0
4.1V
0:00.0
00
0
0
0:00h
M
V
Unlock by
ESC
and SET
RX VOLT:4.9V
The lockout is effective immediately but controls
remains operationally ready.
This lockout can be removed by again touching
and holding the
ESC and SET keys for about two
seconds. A lockout condition is also removed the next
time the transmitter is switched on.
Entry lockout
Depending on the given menu, certain function fi elds
will appear on the bottom display line.
CLR SEL SET STO SYM ASY
A marked function is activated with a tap on the
SET key.
Function fi elds
CLR(clear) erase
SEL (select): selection
SET (set) "set" or adjust a value
STO (store): store (e.g. control position)
SYM set values symmetrically
ASY set values asymmetrically
switch fi eld symbol
(assignment of all types of switches)
within a menu, change to the
second page, (menu continuation)
Function fi elds in the display
SEL, STO, SYM, ASY, ,
