Logical switches
Programming logical switches

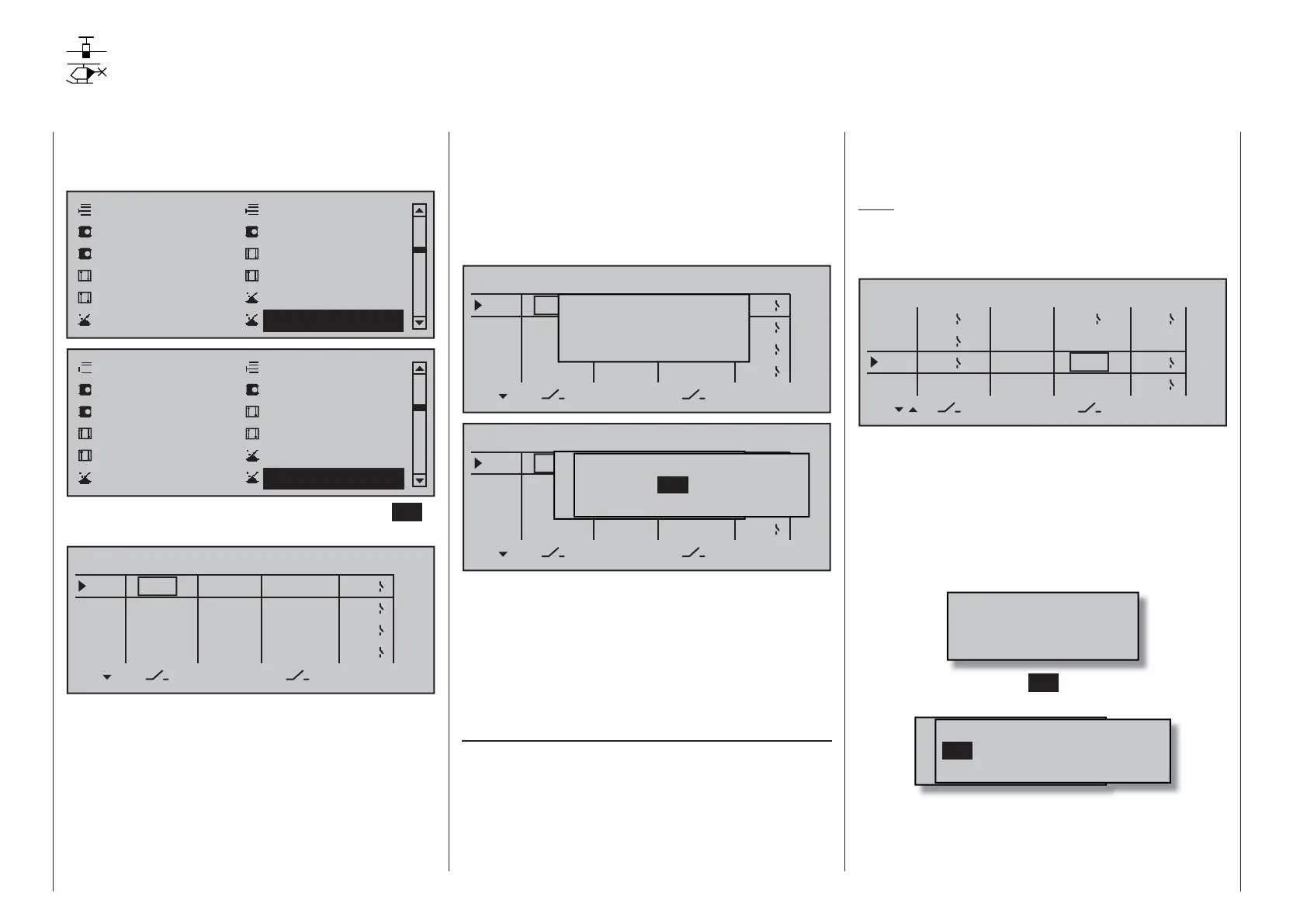

Use the selection keys on the left or right touch pad
to scroll to the »Control switch« option in the multi-
function menu:
Servo adjustment
Stick mode
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch display
Suppress codes
Suppress models
Base setup model
Model type
Control switch
Logical switch
Servo adjustment
Stick mode
Control adjust
Dual Rate / Expo
Channel 1 curve
Switch Display
Suppress codes
Suppress models
Base setup model
Helicopter type
Control switch
Logical switch
Open this menu option with a tap on the center SET
key of the right touch pad.
AND
AND
AND
L1
L2
L3
–––
L4
LOGICAL SWITCHES
AND
–––
–––
–––
SEL
L1
L2
L3
L4
–––
–––
–––
–––
These functions permit two switches, control switches
and/or logical switches or any combination of these to
be combined with one another to create logical "AND"
and "OR" functionality. A total of 8 logical switches,
"L1 … L8" can be programmed.
The result of such a logical switch function – shown
in the display's rightmost column – can be used as
another switch function. Allocation of a switch to
a logical function is done in the familiar manner in
the columns labeled by the two switch symbols,
as described in the section "Assigning transmitter
controls, switches and control switches" on page56.
That is, by moving the respective switch from OFF to
ON or, after a tap on the center SET key of the right
touch pad, by selecting one of the expanded switches
with the selection keys.
UND
UND
AND
L1
L2
L3
–––
L4
LOGICAL SWITCHES
UND
–––
–––
–––
SEL
L1
L2
L3
L4
–––
–––
–––
–––
Move desired switch
to ON position
(ext. switch: ENTER)
UND
UND
UND
L1
L2
L3
–––
L4
LOGICAL SWITCHES
UND
–––
–––
–––
SEL
G1
G2
G3
L4
–––
–––
–––
–––
Mowünschten Schalter
to die EIN Position
(erw. Schalter: SET)
Control/Logic/fix switch
C2 C4 C5 C6
C7
C8
FX FXi L1 L2
C1 C3
Potential applications for this:
Multiple functions, which are normally independent •
of one another, are to be put into a defi ned state
by way of an »Emergency switch«.
The establishment of dependencies for initiating a •
switch-on warning, see »Basic settings, model«
menu.
"AND" / "OR"
Once a given value fi eld has been activated in the
column labeled SEL, the "AND" and "OR" logic
operator can be selected with the selection keys.
"AND" function: The logical switch is only closed
when both input switches are
closed.
"OR" function: The logical switch is closed
when at least one of the input
switches is closed.
Note:
The difference between AND and OR logic switches
is made clear by the settings and input states of the
display fi gure below.
OR
AND
AND
L1
L2
L3
–––
L4
LOGICAL SWITCHES
AND
L2I
4I
2
SEL
L1
L2I
L3
L4
–––
L1
3
1
"L3" is only closed when both the "L1" and "L2"
switches are closed. This means that both switches,
1 and 2, must be closed and, at the same time, either
3 or 4.
In order to make these logical switches usable, they
can be specifi ed in those menus which use switches
by calling them up via the additional "expanded
switches" selection menu.
Move desired switch
to ON position
(ext. switch: ENTER)
A brief tap on the center SET key of the right touch
pad will afford access to the expanded switches.
M wünschten Schalter
to die EIN Position
(erw. Schalter: SET)
Control/Logic/fix switch
C2 C4 C5 C6
C7
C8
FX FXi L1 L2
C3C1
Now use the selection keys to pick the desired control
switch "C1 … C8", fi xed switch "FX" or logical switch
"L1 … L8" or the respected inverted switch "C1i …
C8i", "FXi" or "L1i … L8i", for example, "L3i":
