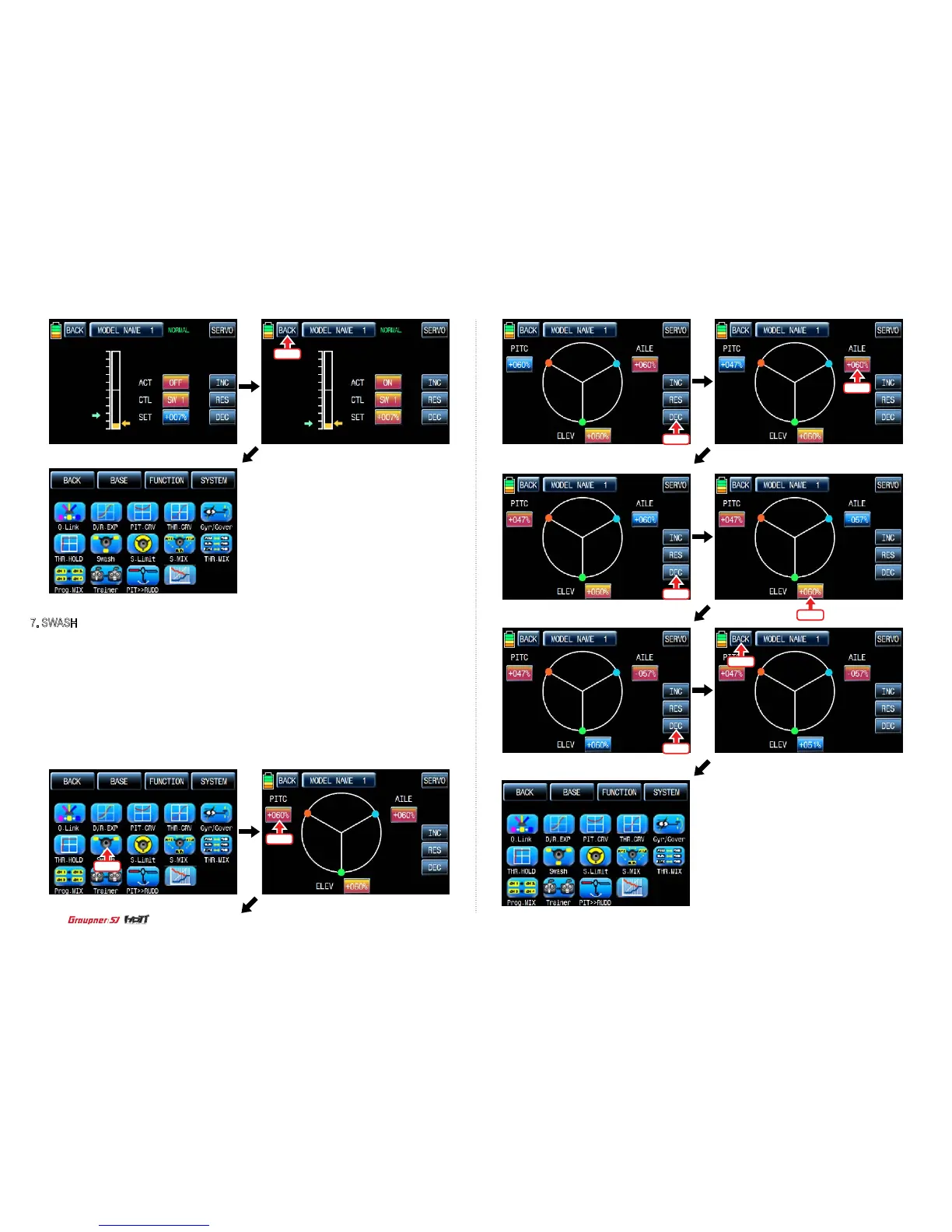

7. SWASH

The swash function supports adjustment of the travel amount and direction of the aileron, eleva-

tor and pitch in Helicopter mode. Bind a helicopter to a receiver and set the travel amount and

direction of the swash channels desirably Touch “SWASH” icon to call “SWASH” setup page.

When touching the values in PITC, AILE and ELEV, they are activated in blue. You may adjust the

values with INC and DEC buttons. The default value is 60%. If the minus value is programmed, the

travel direction of the swash channel is reversed. You may watch the servo operation by touching “

SERVO” icon in the right top. Touch “BACK” icon to return to the function page.
