74
Touch
Touch
Touch
Touch
Touch
Touch
Touch
Telemetry

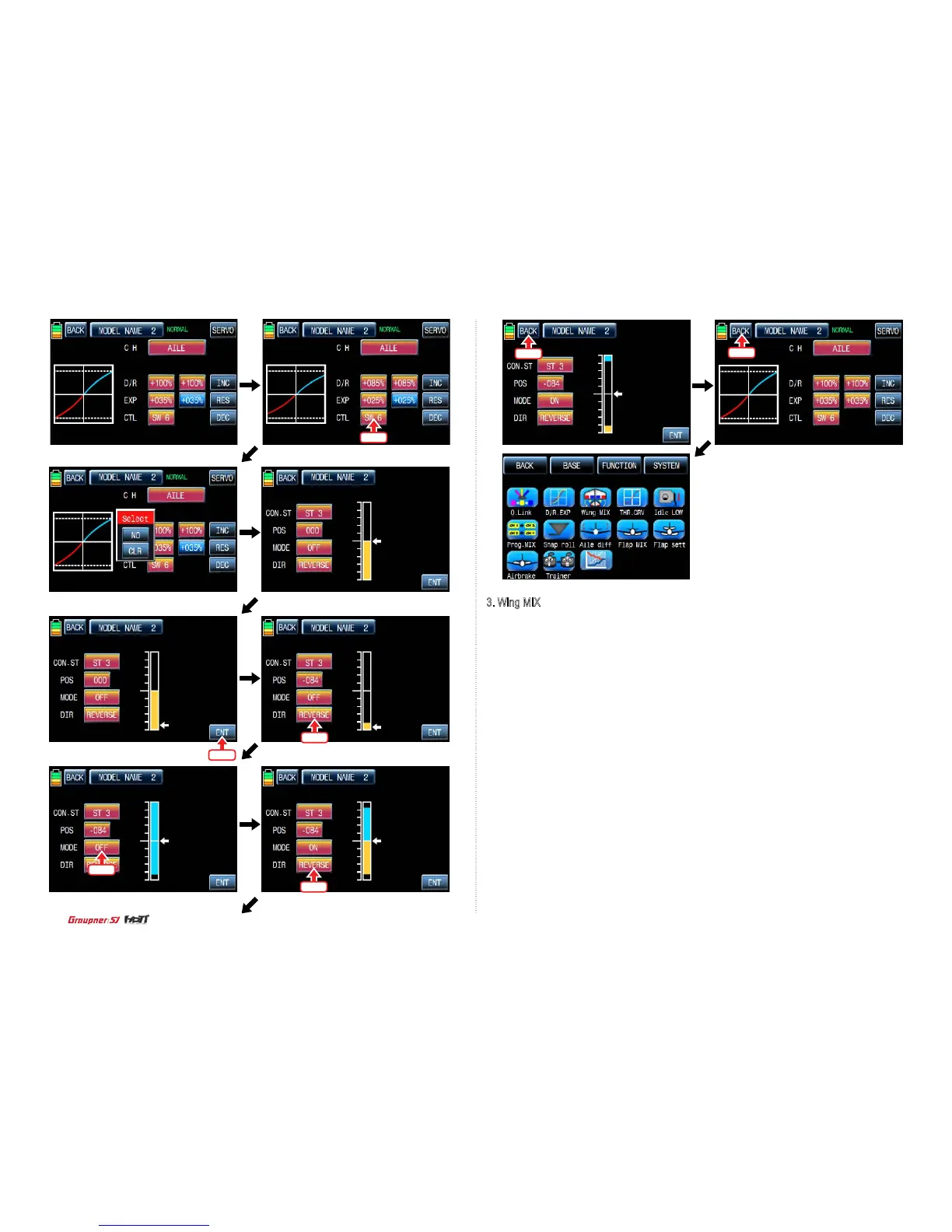

3. Wing MIX
Wing MIX consists of various mixing functions which are essential to y. There are three types
mix, RUDD>>AILE”, “AILE>>RUDD”, and “RUDD>>ELEV”
In FUNCTION page, touch “Wing MIX” icon to call “Wing MIX” setup page. Touch “INH” icon in
“ACT” line to switch to ON and touch “>>” icon in “SET” line to call “SET” page. In “SET” page,
you may adjust the travel amount of slave channel for the master channel operation. Touch
and activate the values in LEFT and RIGHT line and adjust the mixing value with “INC” and
“DEC” buttons. The programmed values are indicated in the left graph. Touch “BACK” icon to
return to “Wing MIX” setup page. Now, you need to set CTL function. Touch “On” icon to call
“Select” message popup then move the switch with your choice then that switch is designated
as on/ off switch and then the switch direction setup page appears. You may select ON or OFF
by touching icons. When the switch is moved to the direction of ON, the function is operated.
Touch “BACK” icon to return to “Wing MIX” setup page.
If you want to use stick instead of switch for “Wing MIX” function, Touch SW6 in CTL line to call
“Select” message popup and move the stick with your choice then that stick is selected as on/
off stick and the stick direction setup page appears. In the direction setup page, move the stick
to the position that you can comfortably reach and touch “ENT” icon on the right bottom.
When the mark of the control stick is only in the black bar, “Wing MIX” function is operated.
The value of set position is displayed in POS. If you touch REVERSE in “DIR” line, all setup is
reversed.
To set “ON” or “OFF” at the both end of stick operation range, touch “SINGLE” icon to switch
to “DUAL” then “Wing MIX” function is on or off at the both end of stick operation range. When
the setting is completed, touch “BACK” icon to return to the wing mix setup page and to the
function page.
