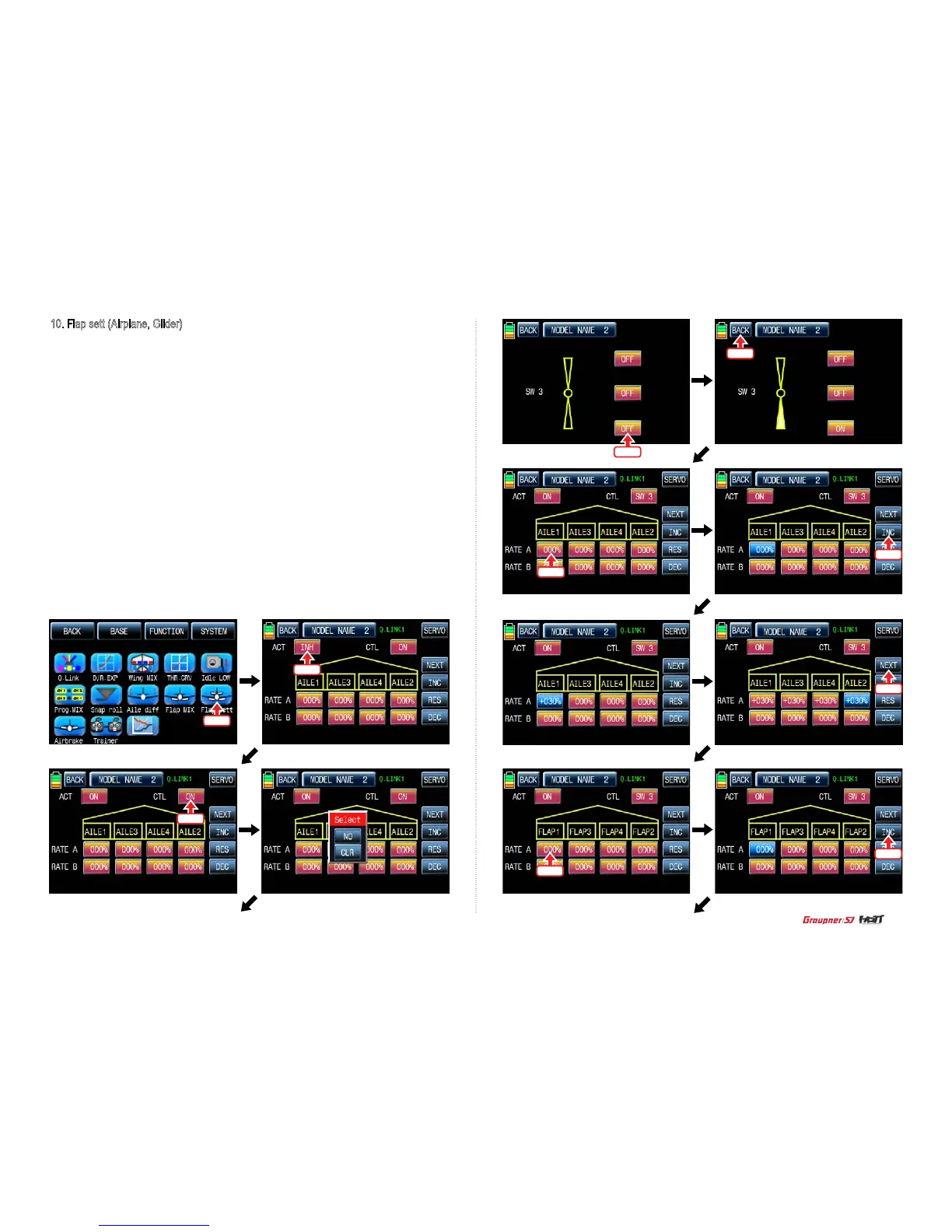

10. Flap sett (Airplane, Gilder)

This mixing allows that the aileron, ap and elevator setups are applied at the same time by

operating a switch. It can be also applied to Camber mix, Launch mode and Speed mode.

Touch “Flap sett” icon to access to the “Flap sett” setup page. The rst page is AILE setup

and you may access to FLAP and ELEV setup page by touching “NEXT” icon in the top right.

Touch “INH” icon in ACT line to switch to “ON” and touch “ON” in CTL line to call the “Select”

message popup. Move the switch or stick or volume with your choice then that switch or stick

or volume is designated as on/ off key and then the key direction setup page appears. You

may select ON or OFF by touching icons. When the key is moved to the direction of ON, the

function is operated. Touch “BACK” icon to the previous page. Now, you may set the operation

value. Touch and activate the values in blue and adjust them with “INC” and “DEC” buttons.

FLAP and ELEV can be programmed in the same way after accessing the next page. After

performing the programming setup of AILE and FLAP and ELEV in turn, touch SERVO icon on

the top right to call SERVO page. You may check the setup value for Flap sett. When Tx CTL

are set to DV1, DV2, DV3, DV4, SL1, and SL2 in advance, the setup values are controlled

delicately by operating “DV” or “SL” while ying
