6. Prog.MIX
Prog.MIX function is used to mix the different channels for diverse purpose. We recommend
you to use the same “On” switch with the one of Q.LINK. You may set the different program
mix function for each Q.LINK condition.
8 MIXs are available. The mixing method introduced here is divided into 2 type, liner mixing
type and curve mixing type. 1~5 MIXs are liner mixing type and 6~8 MIXs are curve mixing
type.
6-1. Liner mixing type

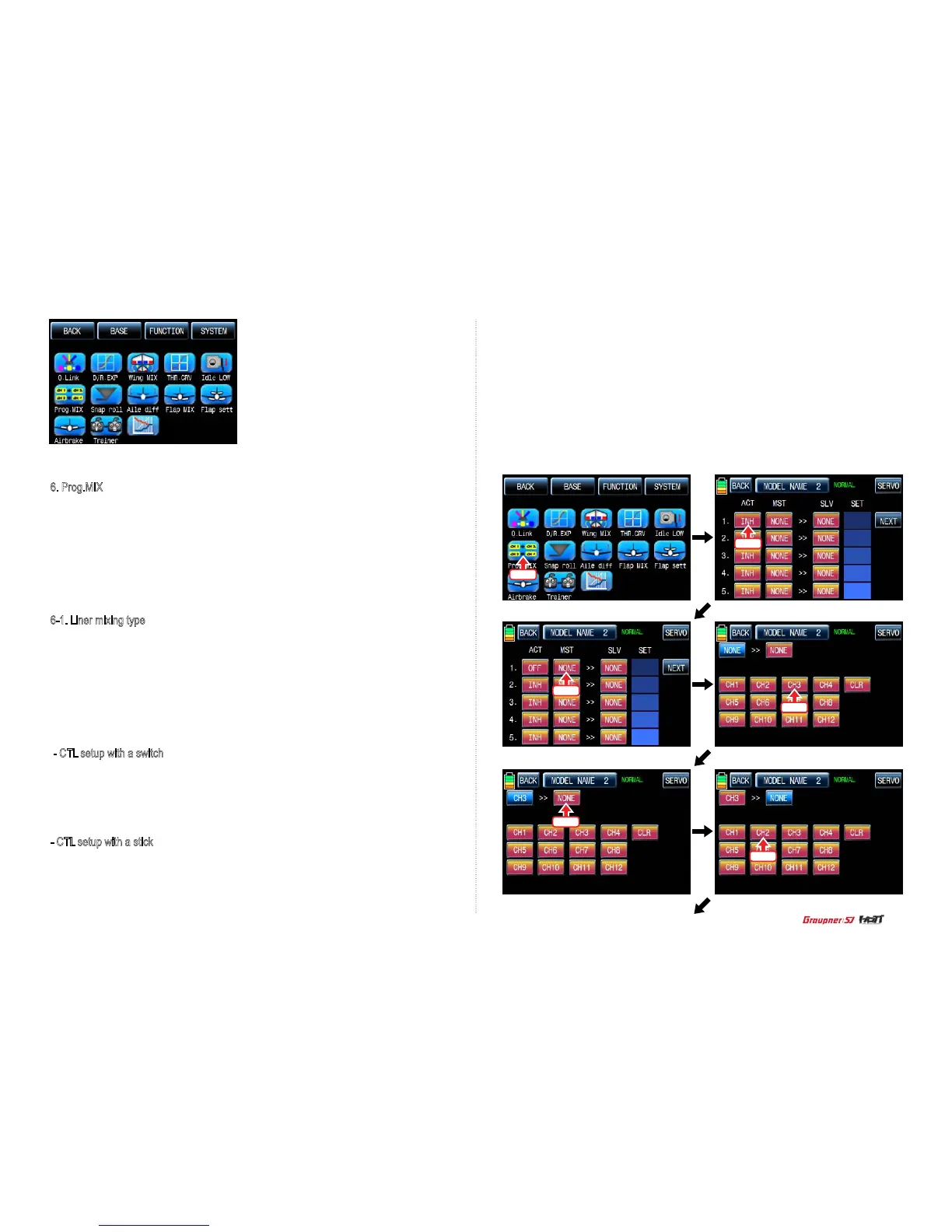

In FUNCTION page, touch “Prog.MIX” icon to call the prog.mix page. Touch “INH” icon in ACT
line to switch to “ON” and touch “NONE” in MST line to call the mixing channel setup page.
Touch and activate “NONE” icon and select the desired channel for the master by touching.
Now, touch and activate the left “NONE” icon, it is for Slave channel, and select the desired
channel for the slave by touching. Touch “BACK” icon to return to Prog.MIX setup page. Touch
>> icon in SET line to call the program mixing setup page. Now, you need to set CTL function.
- CTL setup with a switch
Touch “NULL” icon in CTL line to call “Select” message popup then move the switch with your
choice then that switch is designated as on/ off switch and then the switch direction setup
page appears. You may select ON or OFF by touching icons. When the switch is moved to the
direction of ON, the function is operated. Touch “BACK” icon to return to Prog.MIX setup page.
- CTL setup with a stick
Touch “SW6” icon in CTL line to call “Select” message popup then move the stick with your
choice then that stick is designated as on/ off stick and then the stick direction setup page ap-
pears. Move the stick to the position that you can comfortably reach and touch “ENT” icon on
the right bottom. When the mark of the control stick is only in the black bar, Prog.MIX function
is operated. The value of set position is displayed in POS. If you touch REVERSE in “DIR”
line, all setup is reversed. To set “ON” or “OFF” at the both end of stick operation range, touch
“SINGLE” icon to switch to “DUAL” then Prog.MIX function is on or off at the both end of stick
operation range. Touch “BACK” icon to return to the program mixing setup page.
After CTL setup, you need to set the program mix operation value. Since the throttle channel
is designated to the master channel, the operation value is displayed in A and B. Touch and
activate the values in blue to adjust the value with “DEC” and “INC” buttons, the setup value
is displayed in graph. OFFSET X/Y can be set in the same method and the setup value is
displayed as well.
