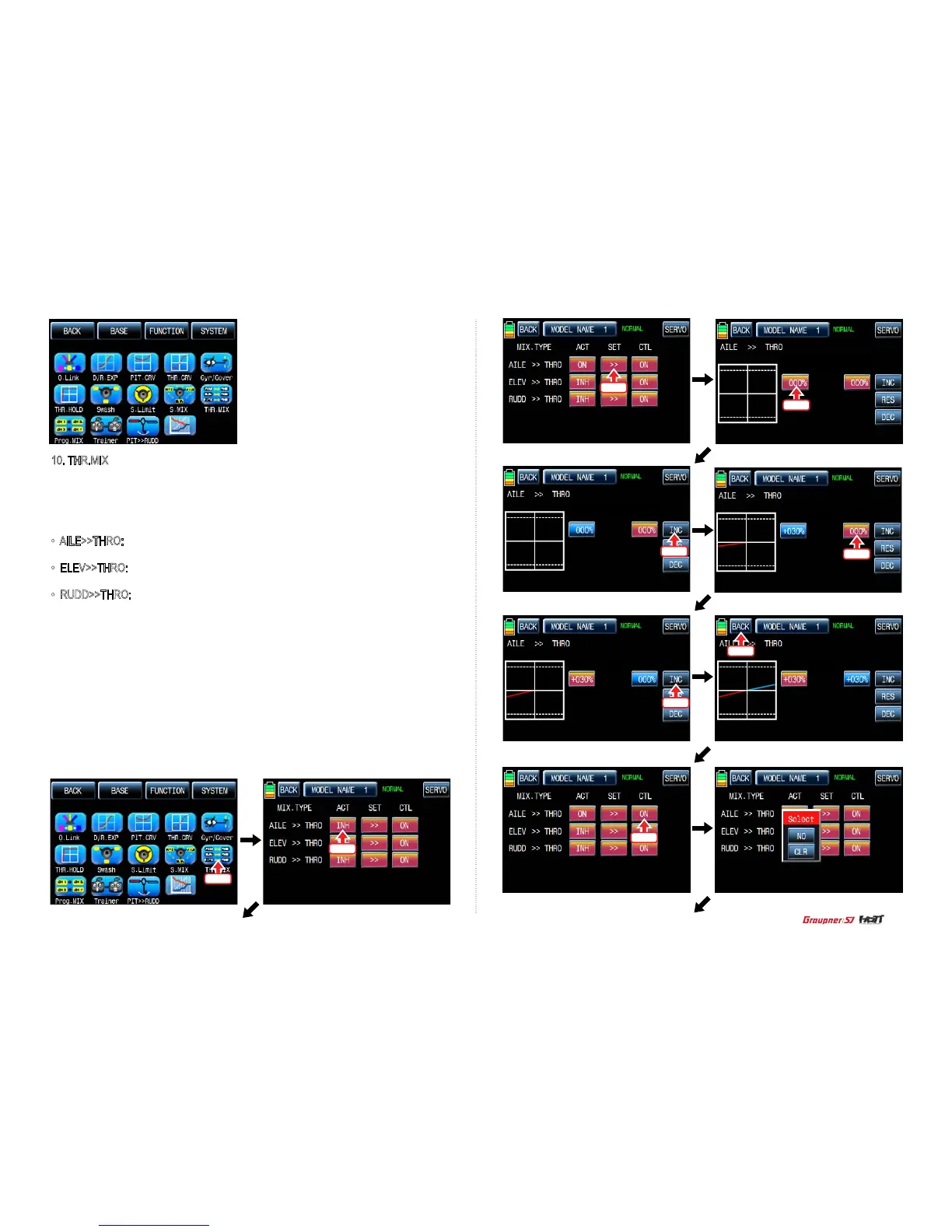

10. THR.MIX
THR.MIX function prevents RPM decay when PITCH, AILE and ELEV inputs are given.
This mix advances the throttle position with mix control to maintain RPM. This function
can be adjusted for each condition of Q.LINK and three types is available (AILE>>THRO,
ELEV>>THRO, RUDD>>THRO)
• AILE>>THRO: It can prevent RPM decay and maintain ight altitude of a helicopter while
controlling aileron.
• ELEV>>THRO: It can prevent RPM decay and maintain ight altitude of a helicopter while
controlling elevator.
• RUDD>>THRO: It can prevent RPM decay and maintain ight altitude of a helicopter when
the rudder pitch is changed by controlling rudder
In FUNCTION page, touch “THR.MIX” icon to call THR.MIX setup page. Touch “INH” icon in
ACT line to switch to “ON” and touch >> icon to call the mixing setup page. Touch and activate
the values in LEFT and RIGHT line and adjust the mixing value with “INC” and “DEC” buttons.
The programmed values are indicated in the left graph. You may watch the servo operation
by touching “ SERVO” icon in the right top. Touch “BACK” icon to return to THR.MIX setup
page. Now, you need to set CTL function. Touch “On” icon to call “Select” message popup
then move the switch with your choice then that switch is designated as on/ off switch and
then the switch direction setup page appears. You may select ON or OFF by touching icons.
When the switch is moved to the direction of ON, the function is operated. Touch “BACK” icon
to return to THR.MIX setup page then conrm the setup data. Touch “BACK” icon to return to
FUNCTION page
