Using the machine
 Adjustment on the tool holder (ring engraving)
1. Adjust the spindle pressure with the button (Position 1).

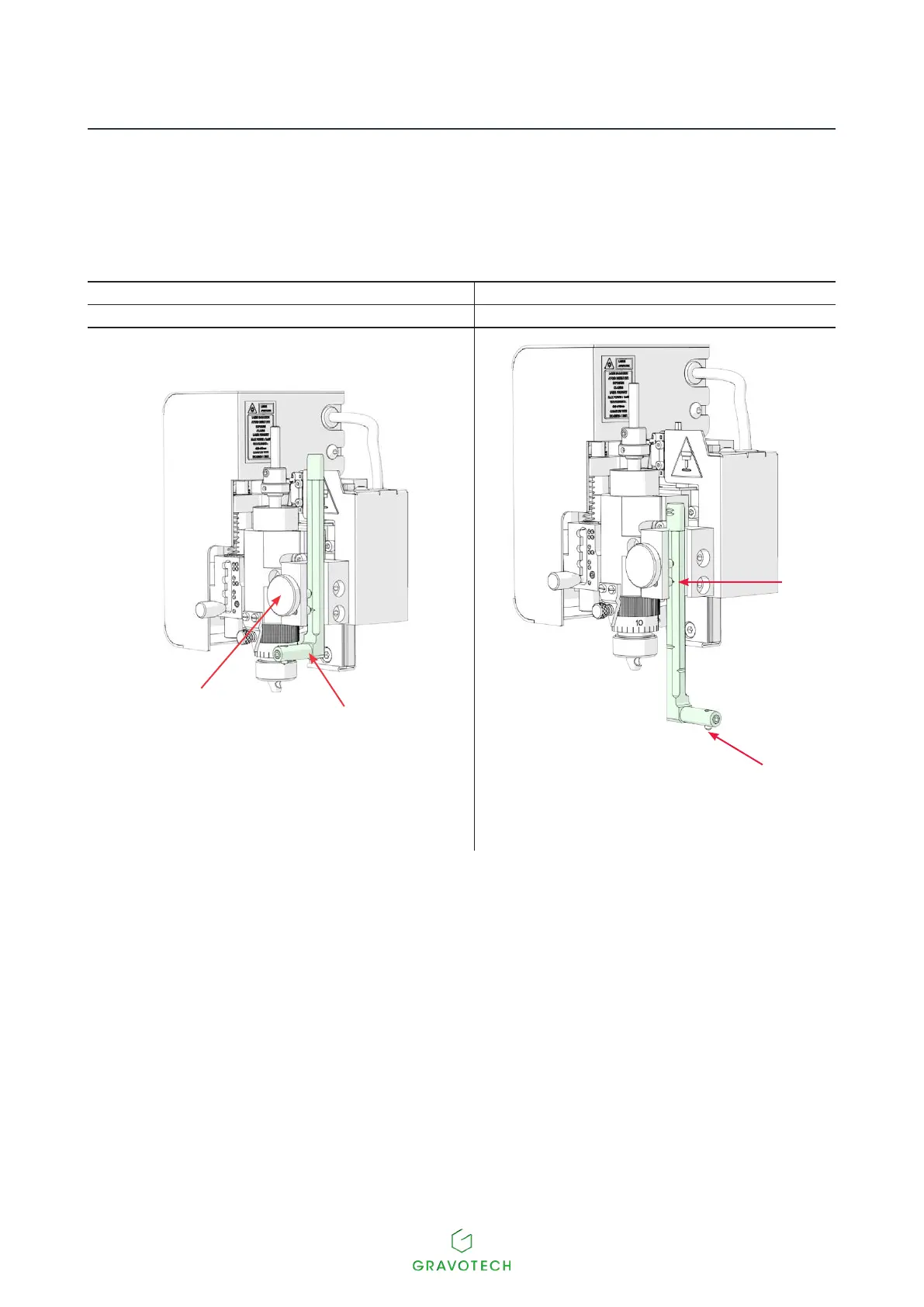

High position Low position
Flat engraving position Engraving position on a ring
1
2
4
3
1. Diamondholdershaftmountlockingbutton
2. Diamond holder
3. Index
4. Diamond point
2. Loosen the shaft mount locking knob while holding the diamond holder.
3. Lower and place the diamond holder in the ring engraving position (low position).
4. Tighten the locking knob while holding the diamond holder in the pin.
5. Launch the marking cycle.
