Gravotech M20 - Tool Holder Adjustment for Flat Engraving

38
M_M20 series V3_EN_C
Using the machine
 Adjustmentonthetoolholder(󰘱atengraving)

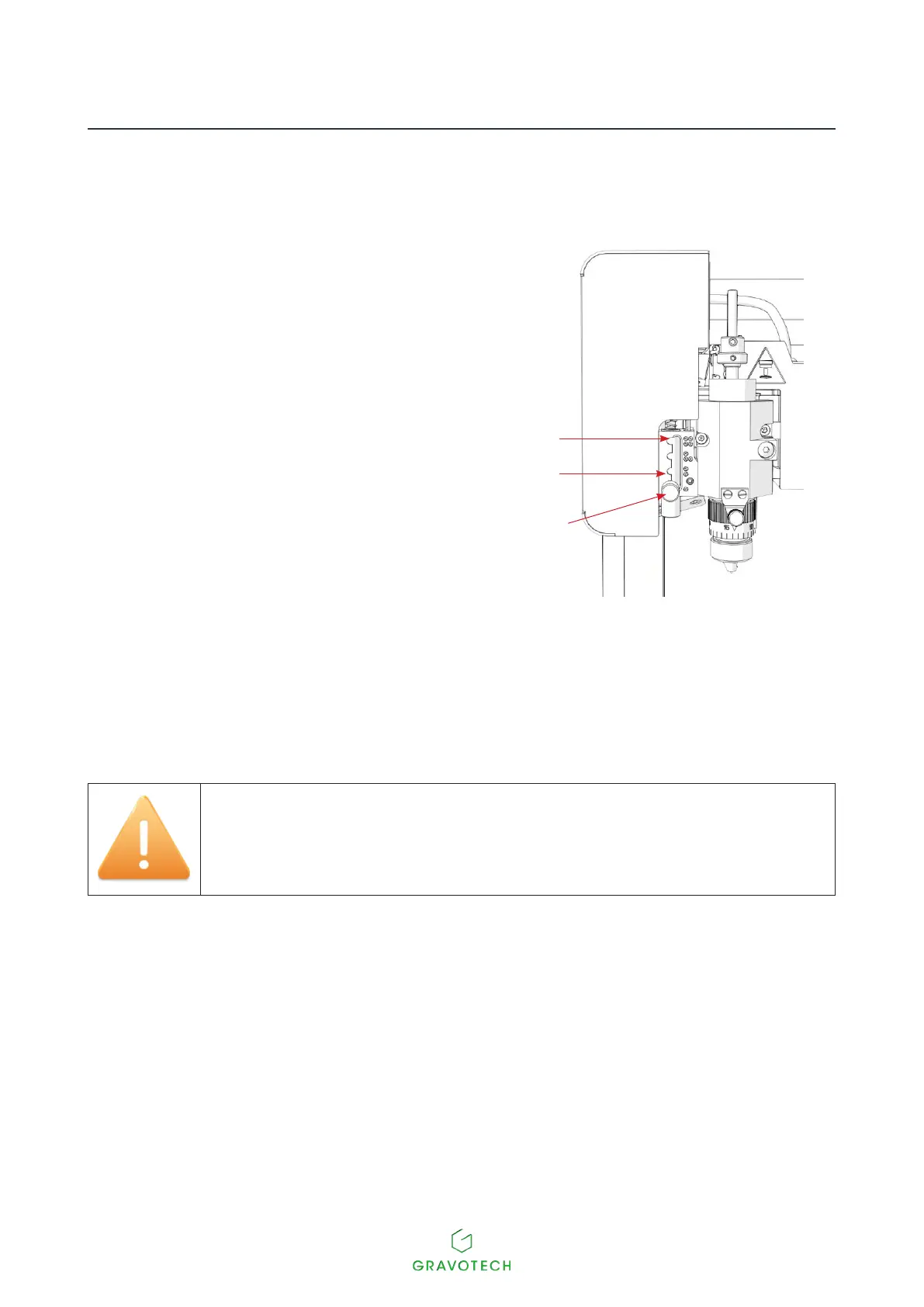

• Spindle pressure adjustment
1. Position 4
2. Position 2
3. Spindle pressure adjustment button
1
2
3
Adjust the spindle pressure with the button (Position 1: Flexible spindle / Position 4: Rigid spindle - carriage Z
locked).
The automatic ZRef does not operate in position 4.
