Adaptable accessories

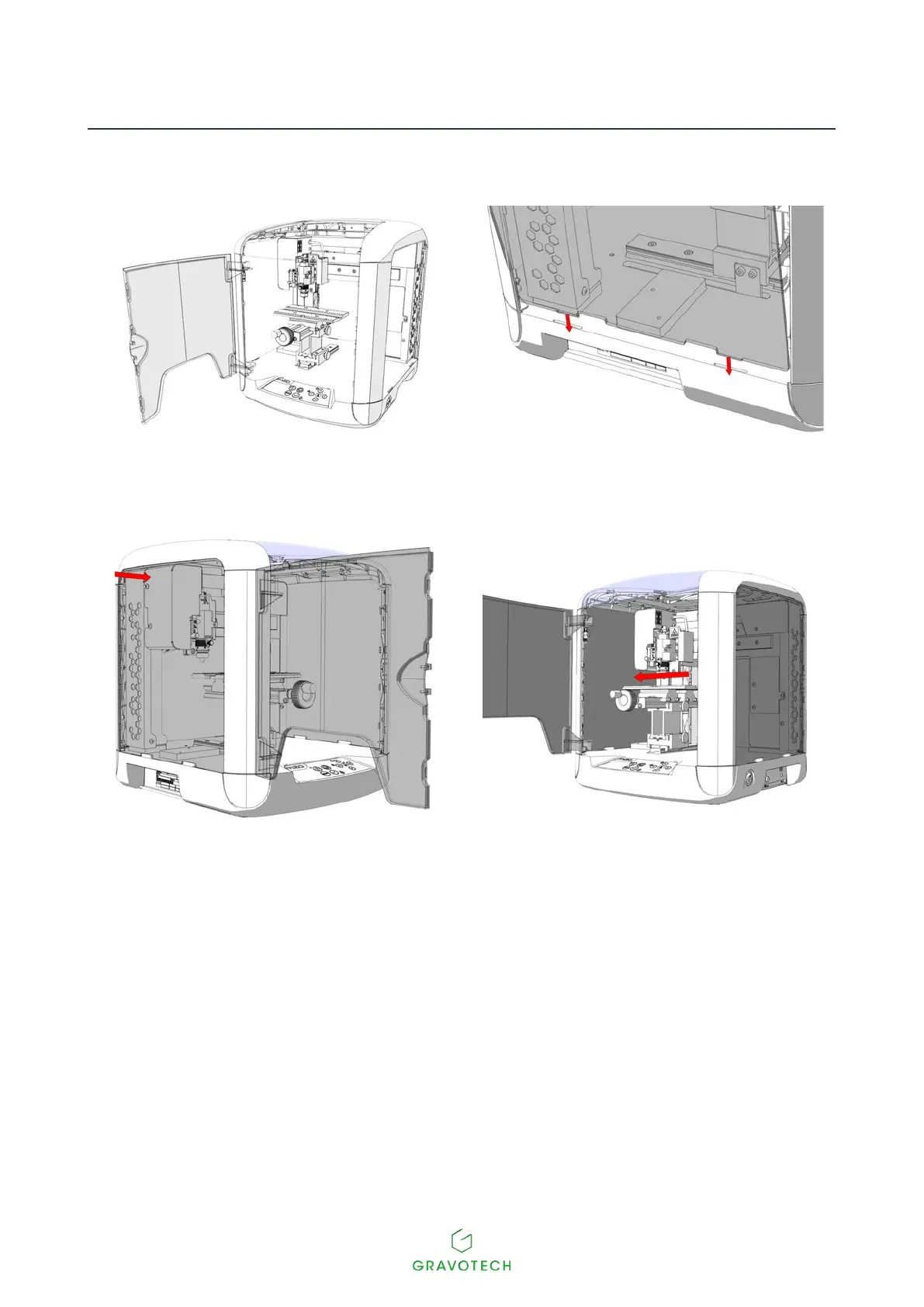

 Assembling the panels
1. Open the front door.
2. Insert the panel into the grooves.
3. Atthetop,atthecenter:Pressonthepanel
until it snaps into place correctly (from the
outside towards the inside of the machine).
4. Atthecenter:Pressonthepaneluntilitsnaps
into place correctly (from the inside towards
the outside of the machine).
5. Repeat operations 2-3-4 for the other panels.
Fitting sequence:
- Right
- Back
- Left
