Gravotech M20 - X84; Preparation: Machine M20

61
M_M20 series V3_EN_C
Adaptable accessories
 Preparation: machine M20

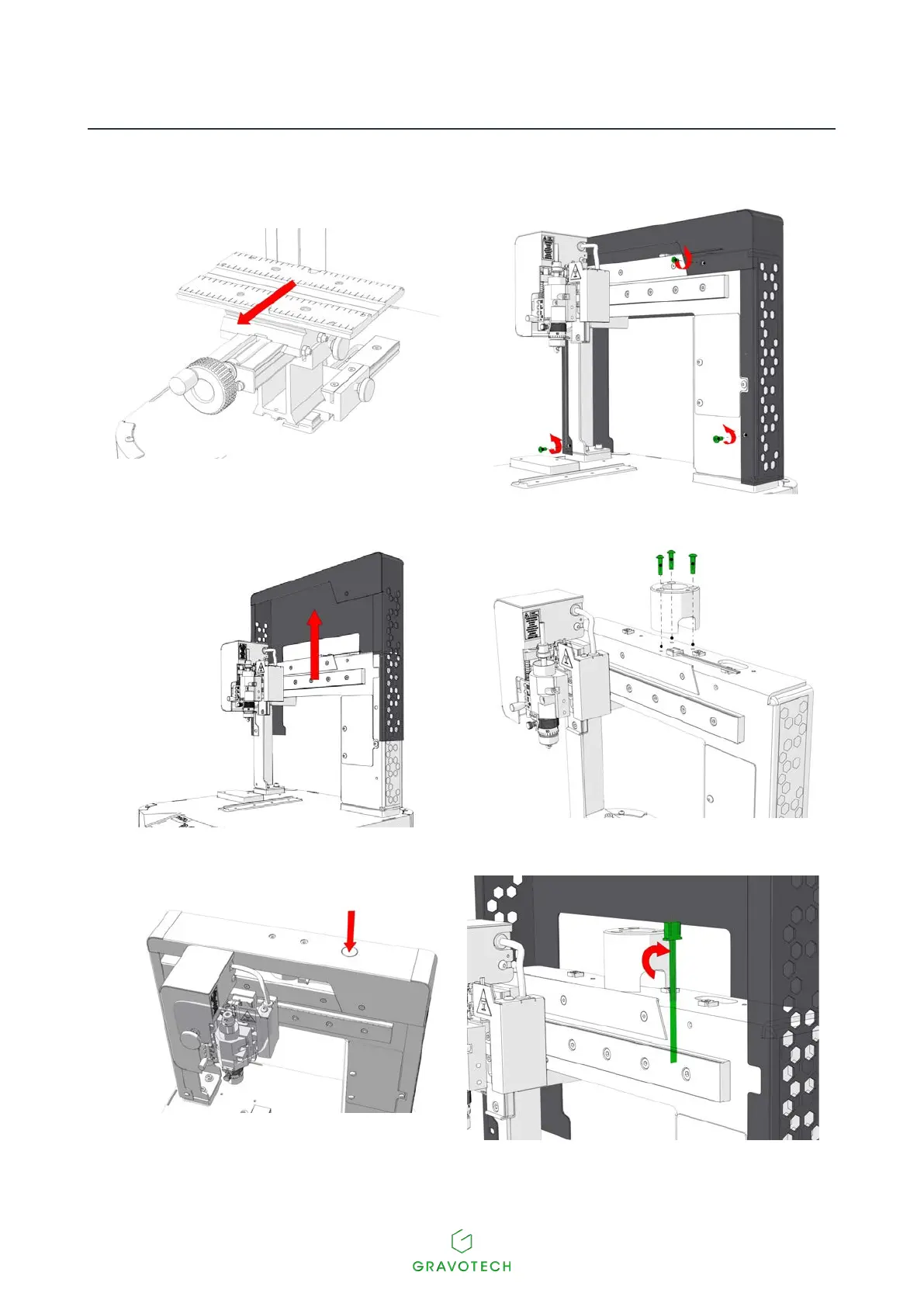

1. Remove the vice.
2. Unscrew the screws (x3)
3. Remove the casing.
4. Adapter-Mountingbracket(Tablet):Startthe
3 screws.
5. Press down the pre-cut area.
6. Markingarealighting:Removetheconnector.
