Adaptable accessories

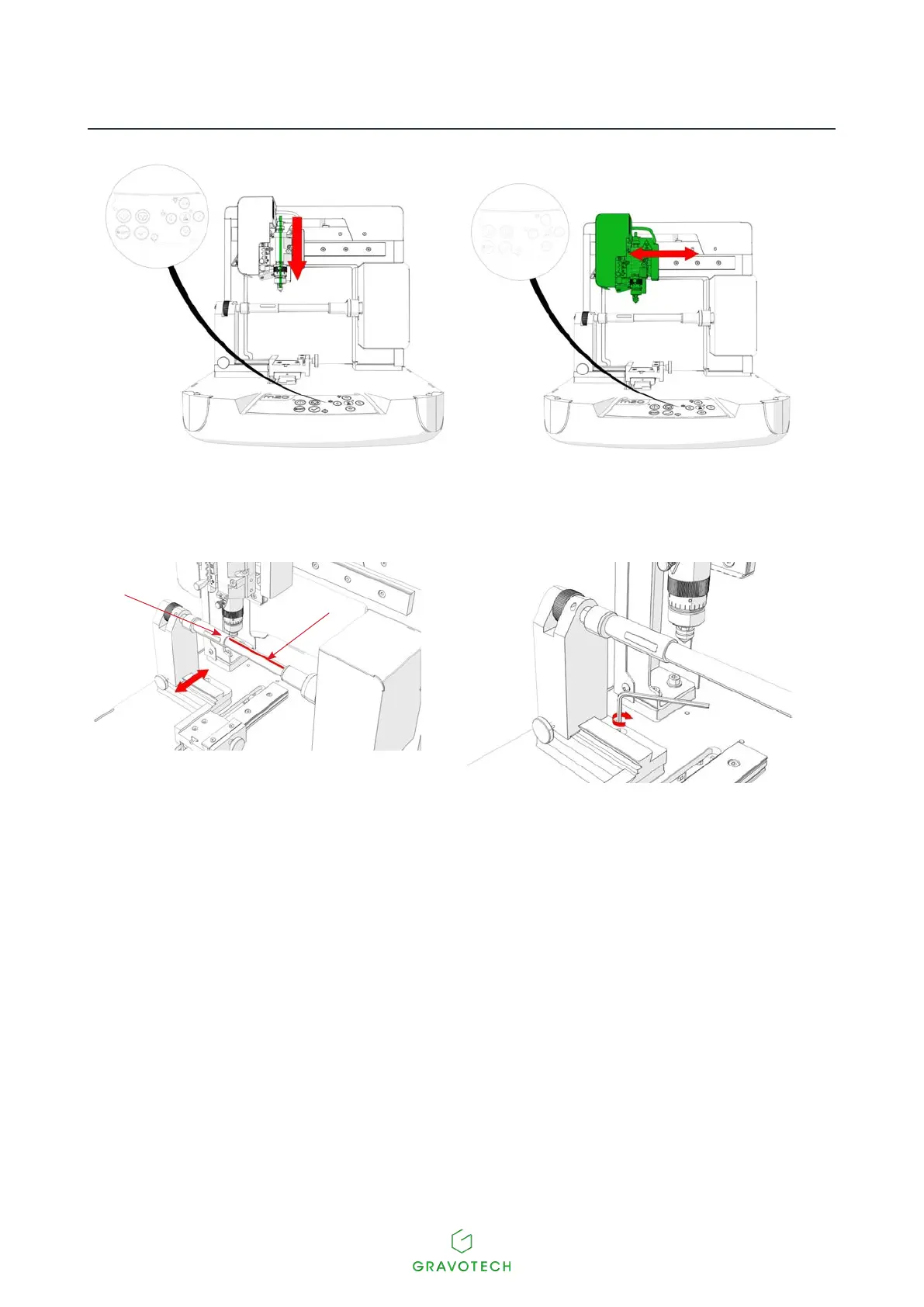

4. Move the tool to a distance of 2 mm (0.079 in)
from the object.
5. Move the tool along the X axis.
1
2
1. Tool trajectory
2. Generator axis (Pen)
6. Move the tailstock such that the generator
axis and the tool trajectory are superimposed.
7. Tighten the screws (x2) (Allen key).
