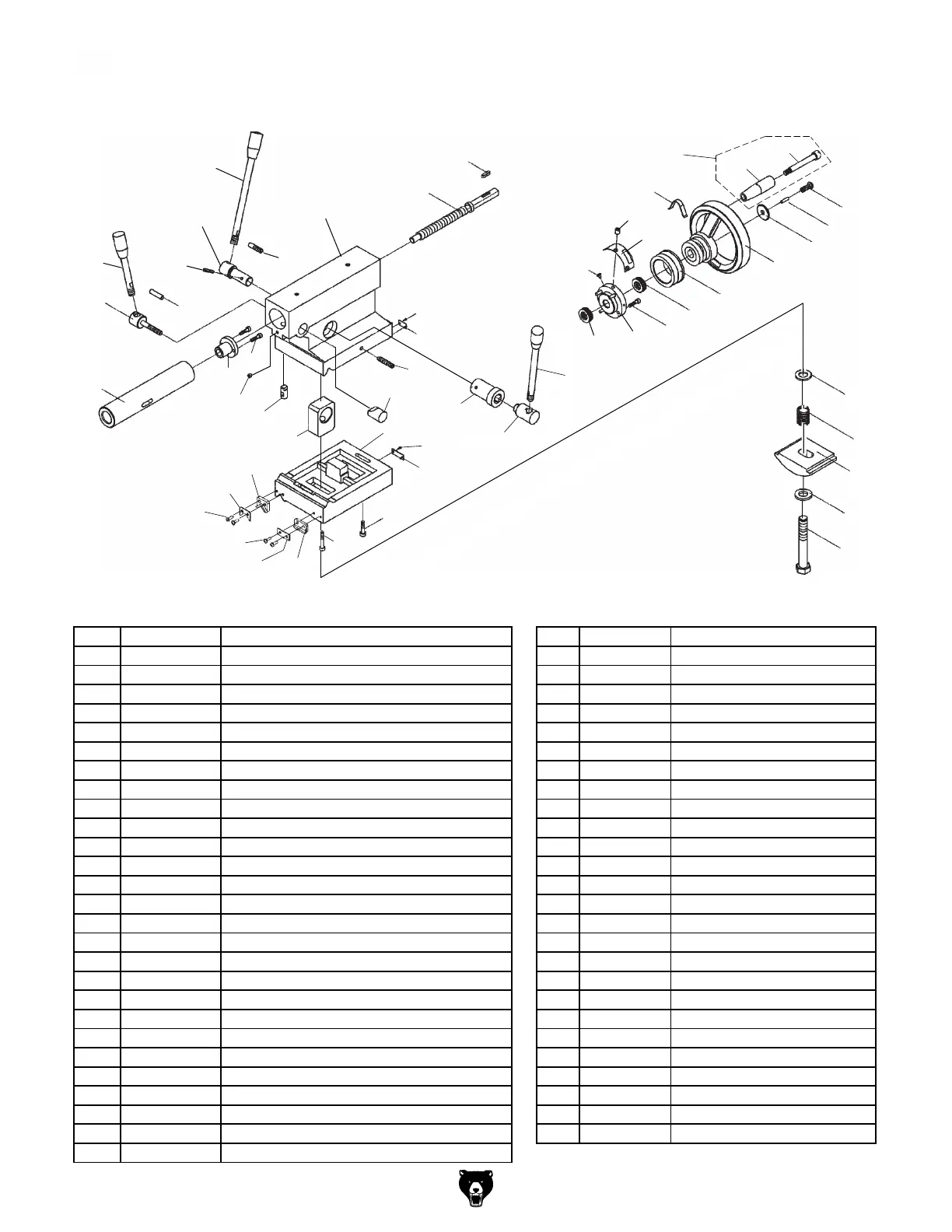

Tailstock
REF PART # DESCRIPTION REF PART # DESCRIPTION
801 P08240801 SHOULDER SCR M8-1.25 X 12, 10 X 66 828 P08240828 END BUSHING
802 P08240802 HOLLOW CAP SCREW M8-1.25 X 20, M5-.8 829 P08240829 CAP SCREW M5-.8 X 20
803 P08240803 SET SCREW M5-.8 X 20 830 P08240830 SET SCREW M6-1 X 6
804 P08240804 FENDER WASHER 8MM 831 P08240831 QUILL GUIDE
805 P08240805 HANDWHEEL TYPE-4 140D B-K 832 P08240832 SUPPORT COLLAR BLOCK
806 P08240806 GRADUATED DIAL FOR TAILSTOCK 833 P08240833 V-WIPER
807 P08240807 THRUST BEARING 8102 834 P08240834 WIPER RETAINING PLATE
808 P08240808 CAP SCREW M5-.8 X 20 835 P08240835 PHLP HD SCR M4-.7 X 12
809 P08240809 FLANGE HUB 836 P08240836 CAP SCREW M4-.7 X 12
810 P08240810 THRUST BEARING 8102 837 P08240837 WIPER RETAINING PLATE
811 P08240811 LEVER HANDLE 838 P08240838 FLAT WIPER
812 P08240812 FLAT HD SCR M4-.7 X 6 839 P08240839 CAP SCREW M6-1 X 35
813 P08240813 CALIBRATED INDICATOR PLATE 840 P08240840 CAP SCREW M6-1 X 25
814 P08240814 BALL OILER 6MM TAP-IN 841 P08240841 DRIVE HUB
815 P08240815 HANDWHEEL FLAT SPRING 842 P08240842 SCALE PLATE
816 P08240816 HANDLE W/OUT SHAFT 22 X 75 X 10 843 P08240843 RIVET 2 X 5 NAMEPLATE
816A P08240816A HANDLE 22 X 75 X 10 W/SCREW 844 P08240844 SUPPORT COLLAR
817 P08240817 KEY 5 X 5 X 20 RE 845 P08240845 TAILSTOCK BASE
818 P08240818 TAILSTOCK LEADSCREW 846 P08240846 LOCK BLOCK
819 P08240819 TAILSTOCK CASTING 847 P08240847 SET SCREW M8-1.25 X 40
820 P08240820 TAILSTOCK LOCK LEVER 848 P08240848 SCALE PLATE
821 P08240821 STOP PIN M8-1.25 X 37L 849 P08240849 RIVET 2 X 5 NAMEPLATE
822 P08240822 LEVER HUB 850 P08240850 FLAT WASHER 16MM
823 P08240823 ROLL PIN 5 X 30 851 P08240851 COMPRESSION SPRING
824 P08240824 QUILL LOCK LEVER 852 P08240852 TAILSTOCK LOCK BLOCK
825 P08240825 STOP PIN M8-1.25 X 37L 853 P08240853 FLAT WASHER 16MM
826 P08240826 HUB LOCK 854 P08240854 HEX BOLT M16-2 X 120
827 P08240827 TAILSTOCK QUILL MT#3
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
816A
