Grizzly G0824 User Manual

-98-
Model G0824 (Mfd. Since 12/16)

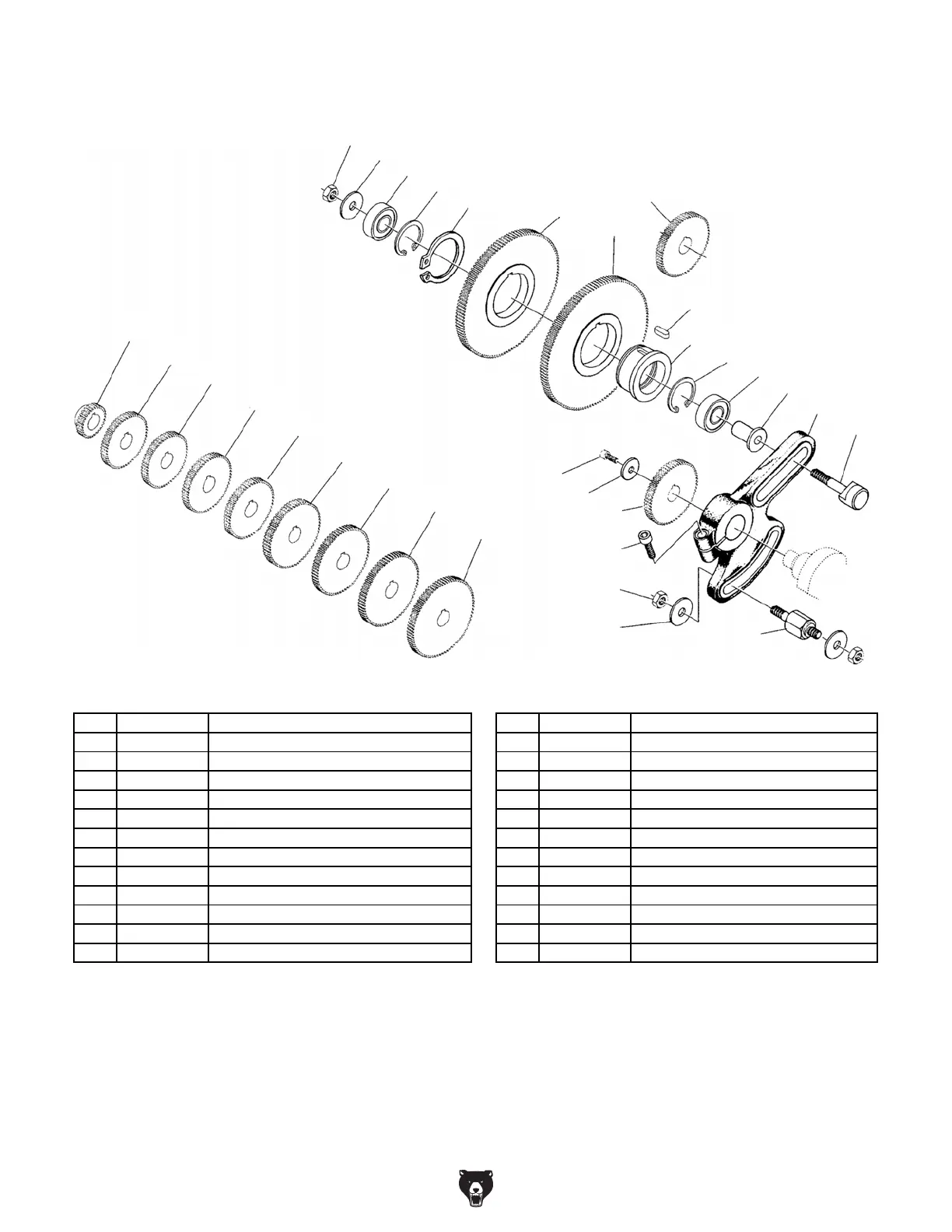

Change Gears
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
203
204
201
202
208
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P08240201 HEX NUT M10-1.5 214 P08240214 CAP SCREW M6-1 X 15
202 P08240202 FENDER WASHER 10MM 215 P08240215 FENDER WASHER 6MM
203 P08240203 BALL BEARING 6203ZZ 216 P08240216 CAP SCREW M8-1.25 X 30
204 P08240204 INT RETAINING RING 40MM 217 P08240217 STANDOFF HEX M10-1.5 X 64
205 P08240205 EXT RETAINING RING 55MM 218 P08240218 CHANGE GEAR 52T
206 P08240206 GEAR 120T 219 P08240219 CHANGE GEAR 46T
207 P08240207 GEAR 127T 220 P08240220 CHANGE GEAR 44T
208 P08240208 GEAR 60T 221 P08240221 CHANGE GEAR 63T
209 P08240209 KEY 6 X 6 X 18 RE 222 P08240222 CHANGE GEAR 57T
210 P08240210 BEARING HOUSING 223 P08240223 CHANGE GEAR 56T
211 P08240211 SLEEVE 224 P08240224 CHANGE GEAR 54T
212 P08240212 SWING ARM FRAME 225 P08240225 CHANGE GEAR 30T
213 P08240213 GEAR SUPPORT SHAFT M10-1.5 226 P08240226 CHANGE GEAR 40T
96"
Keep
Workpiece
Loading Area
Unobstructed
Lathe
32"
30"
Minimum
Electrical Box
Access Cover
24"
Minimum
Wall
