Model G0824 (Mfd. Since 12/16)
Tools Needed Qty
Hex Wrench 5mm .............................................. 1
Open-End Wrench/Socket 27mm
...................... 1
Steel Shims
....................................... As Needed
Cutting Tool
....................................................... 1
Fine Ruler
.......................................................... 1
Tailstock Center
................................................. 1
To align cutting tool with tailstock center:
1.
Mount cutting tool and secure post so tool
faces tailstock.
2.
Install a center in tailstock, and position tip
near cutting tool.
3.
Lock tailstock and quill in place.
4. Adjust height of cutting tool tip to meet center
tip, as shown in Figure 61.
Tailstock
Center
(Side View)
Cutting
Tool

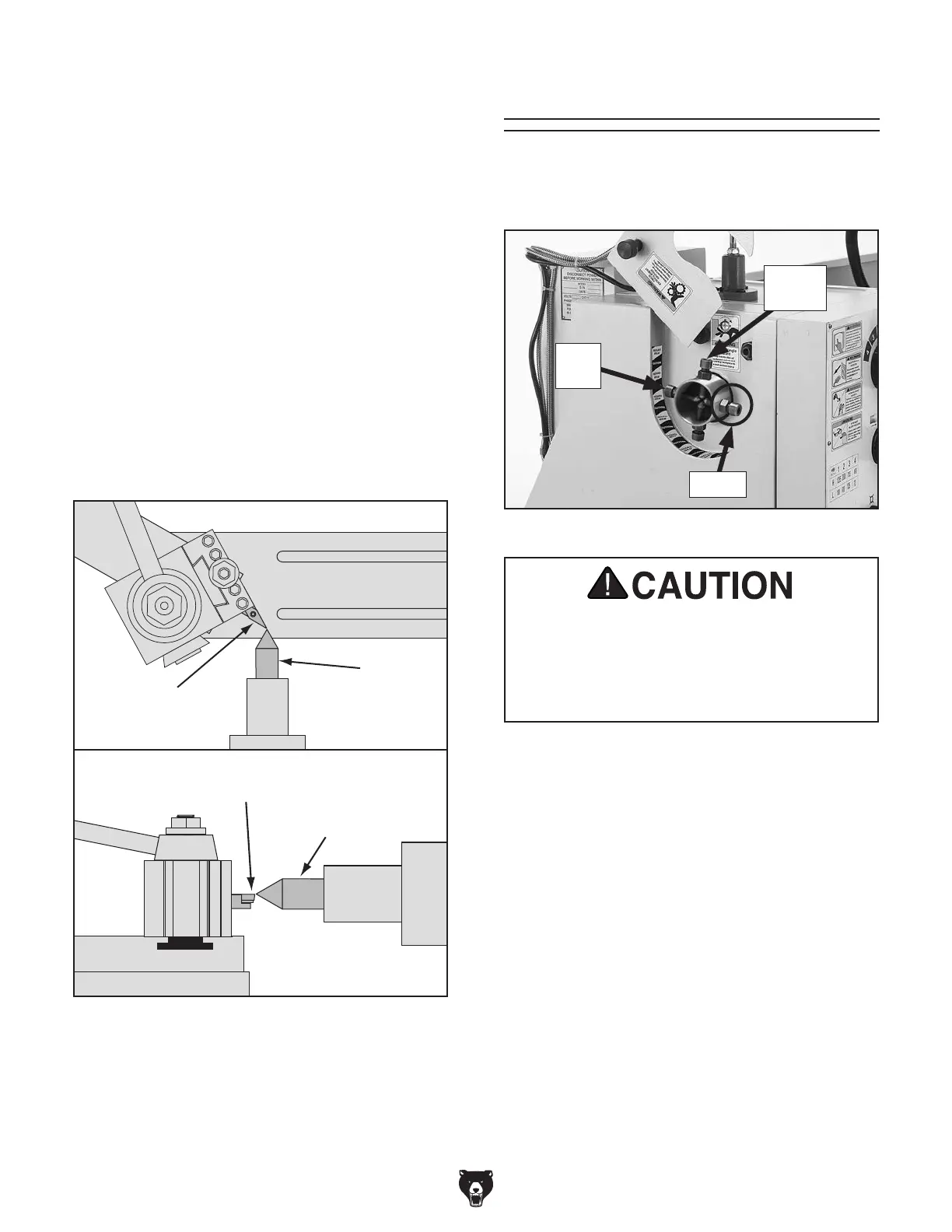

Figure 61. Cutting tool aligned to the tailstock
center.
Cutting
Tool
Tailstock
Center
(Top View)
Spindle Spider
This lathe is equipped with a set of outboard
spindle supports otherwise known as a "spider"
(see Figure 62).
Remove spider screws when not in use.
Always DISCONNECT LATHE FROM POWER
when installing, removing, or adjusting spi-
der screws. Ignoring this warning can lead
to personal injury or machine damage.
Figure 62. Spindle spider components.
The spider is especially designed for supporting
gun barrels during chambering operations; how-
ever, it is a great support option for almost any
long workpiece that extends through the outboard
side of the spindle.
The tips of the spider screws have brass wear
pads that hold the workpiece without causing
indents in the finish.
When spider screws are installed, always use the
jam nuts to lock each spider screw in position.
Merely tightening the spider screws against the
workpiece and leaving the jam nuts loose is not
safe. Spiders screws that loosen during operation
can crash into the lathe end cover.
Jam
Nut
Spider
Spider
Screw
To Next Page
