-42-
Model G0824 (Mfd. Since 12/16)
The drill chuck attaches to the tailstock quill with
the included B16 x MT#3 arbor, shown in Figure
53. Matched tapers on the arbor and the inside
of the chuck create a semi-permanent assembly
when properly joined. The drill chuck can accept
tooling from
1
⁄16" –
1
⁄2".
Drill Chuck & Arbor
To assemble the drill chuck and mount it in the
tailstock quill:
1. Use mineral spirits to thoroughly clean drill
chuck, arbor and quill barrel, and dry all sur-
faces before assembly.
2.
Place drill chuck face down on a workbench.
3. Insert short tapered end of arbor into socket
in back of drill chuck and tap it with a rubber
or wooden mallet.
The procedure for mounting and removing
the chuck and arbor from the tailstock quill is
the same as for a center. Refer to Mounting
Center in Tailstock and Removing Center
from Tailstock.
Tool Needed Qty
Rubber/Wooden Mallet ...................................... 1

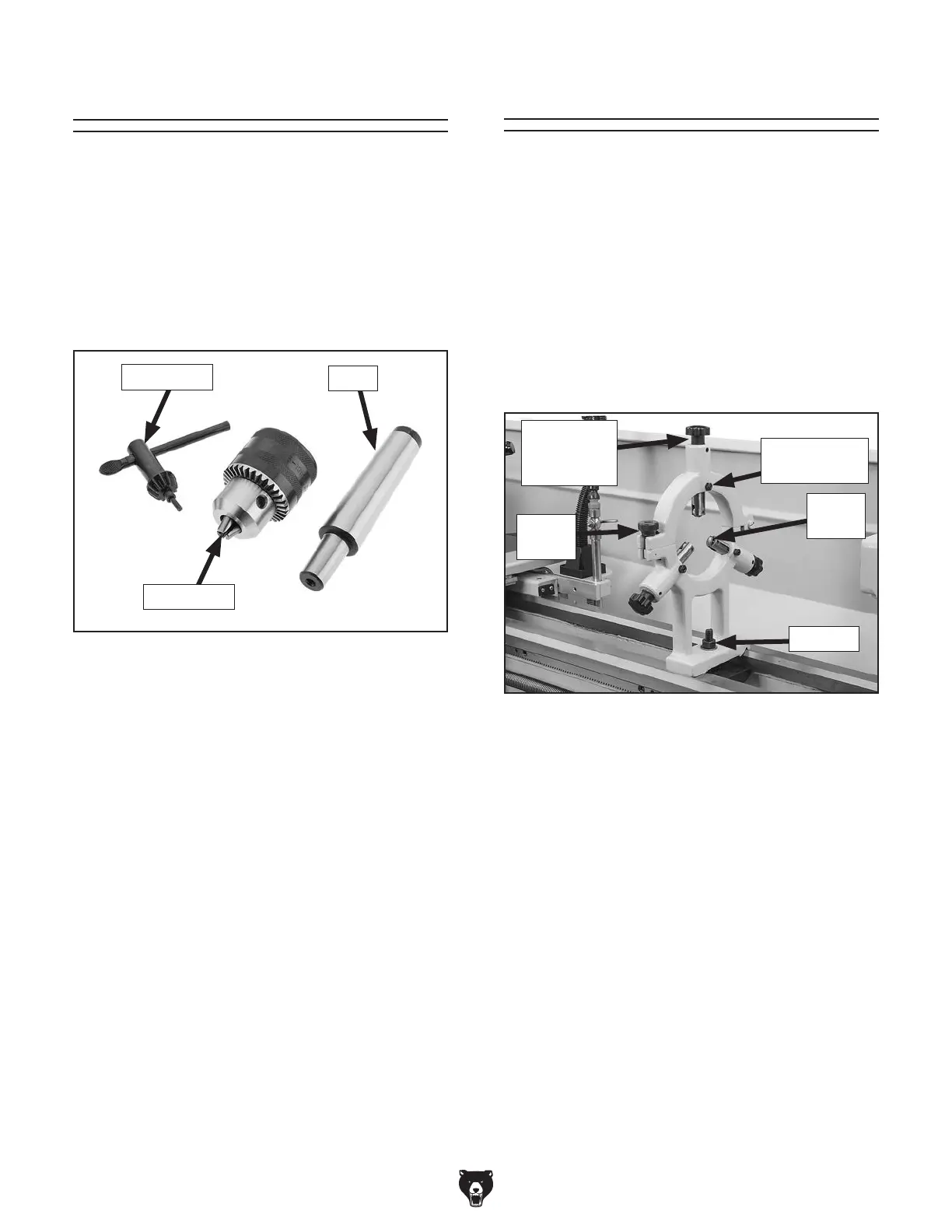

Figure 53. Chuck components.
Chuck Key
Arbor
The steady rest supports long, small diameter
shafts and can be mounted anywhere along the
length of the bedways.
Familiarize yourself with the steady rest compo-
nents shown in Figure 54 to better understand
the controls.
Steady Rest
Tools Needed Qty
Hex Wrench 3mm .............................................. 1
Open-End Wrench 10mm
.................................. 1
Open-End Wrench 19mm
.................................. 1
To install and use the steady rest:
1.
DISCONNECT MACHINE FROM POWER!
2. Thoroughly clean all mating surfaces, then
place the steady rest base on the bedways
so the triangular notch fits over the bedway
prism.
3.
Position the steady rest with the base clamp
where required to properly support the
workpiece, then tighten the hex nut shown in
Figure 54 to secure it in place.
Figure 54. Steady rest components.
Finger
Roller
Hex Nut
Set Screw &
Jam Nut
Finger
Adjustment
Knob
Clamp
Knob
Drill Chuck
