When the coolant pump is turned ON, fluid is
delivered through the nozzle attached to the
carriage.
To use coolant system:
1.
Make sure coolant tank is properly serviced
and filled with appropriate fluid, and that you
are wearing necessary personal protection
equipment.
2.
Position coolant nozzle for your operation.
3. Use coolant pump switch on control panel to
turn pump ON.
4.
Adjust flow of coolant at nozzle.
IMPORTANT: Promptly clean any splashed
fluid from the floor to avoid a slipping hazard.
Coolant System
Running the pump without adequate fluid in
the coolant tank may permanently damage
it, which will not be covered under warranty.
BIOLOGICAL & POISON
HAZARD!
Use the correct person-
al protection equipment
when handling coolant.
Follow federal, state,
and fluid manufacturer
requirements for proper
disposal.
Always use high-quality coolant and follow the
manufacturer's instructions for diluting. Only water
soluable cutting fluids are compatible with the
cutting flud pump—DO NOT use synthetic fluids,
sulferized oil, or mineral oil or damage could occur
to the pump.
Refer to Coolant System Service on Page 69
for detailed instructions on how to add or change
fluid. Check the coolant regularly and promptly
change it when it becomes overly dirty or rancid,
or as recommended by the fluid manufacturer.

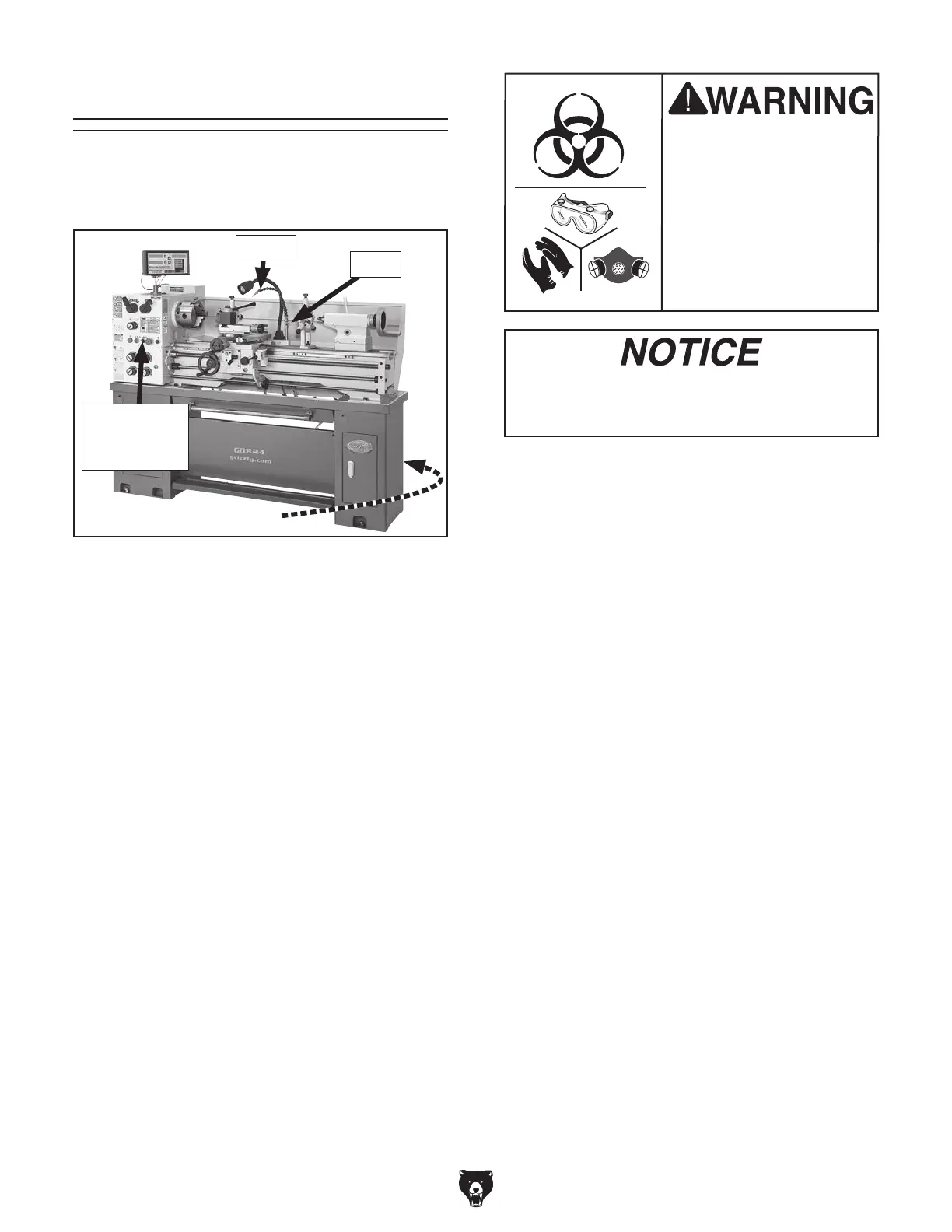

Figure 90. Cutting fluid system controls.
Pump and Tank
Cutting Fluid
Pump
Switch
Nozzle
Valve
