-4-
Model G0824 (Mfd. Since 12/16)
Controls &
Components
Refer to Figures 1–7 and the following descrip-
tions to become familiar with the basic controls of
this lathe.
A. Spindle Speed and Speed Range Levers:
The spindle speed lever (left) and spindle
speed range lever (right) are used in conjunc-
tion with each other to select one of the eight
available spindle speeds.
B. Feed Direction Dial: Changes direction of
leadscrew/feed rod rotation (i.e. direction of
carriage travel) without reversing direction of
spindle rotation. Typically used for left-hand
threading.
C. Spindle Speed Chart: Displays configura-
tion of the spindle speed levers for each of
the eight spindle speeds.
D. Thread and Feed Charts: Display the con-
figuration of the gearbox dials and end gears
to produce all available threading or feeding
options.
E. Quick-Change Gearbox Dials: Control the
leadscrew and feed rod speed for threading
and feeding operations.
F. Thread Dial Chart: Indicates where on the
thread dial to engage the half nut when cut-
ting inch threads.
Headstock

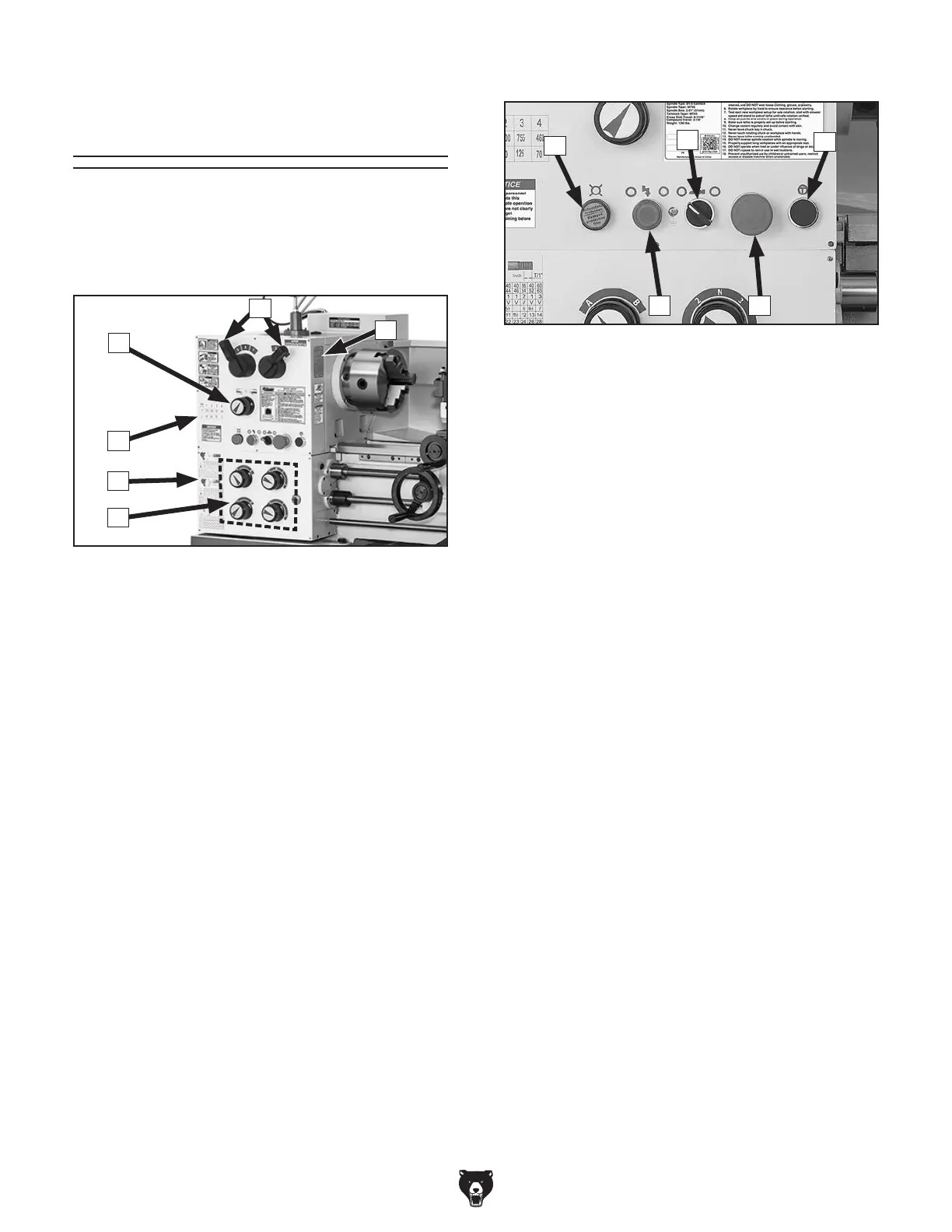

Figure 1. Headstock controls.
B
E
C
D
A
F
Control Panel
G. Power Light: Indicates lathe controls are
receiving power. Illuminates when Emergency
Stop/RESET button is reset.
H.
Power Button: Enables the spindle motor
when the Emergency Stop/RESET button is
reset.
I
. Coolant Pump Switch: Controls coolant
pump motor.
J. Emergency Stop/RESET Button: Stops all
machine functions. Twist clockwise to reset.
K. Jog/Inching Button: Starts forward spindle
rotation as long as it is pressed.
Figure 2. Control panel.
G
H
I
K
J
