Model G0824 (Mfd. Since 12/16)
-5-
Tailstock
U. Quill Handwheel: Moves the quill toward or
away from the spindle.
V. Graduated Scale: Indicates quill movement
in increments of 0.001", with one full revolu-
tion equaling 0.100" of quill travel.
W. Tailstock Lock Lever: Secures the tailstock
in position along the bedway.
X. Quill Lock Lever: Secures the quill in
position.
Y. Quill: Moves toward and away from the
spindle. Holds centers and tooling.
Z. Tailstock Offset Screws: Adjusts the
tailstock offset left or right from the spindle
centerline (1 of 2).
AA. Offset Scale: Indicates the relative distance
of tailstock offset from the spindle centerline.
AB.
1
2" Square-Drive Lock-Down: Used with a
torque wrench for precise alignment of centers.
Figure 4. Tailstock controls.
U
V
W
X
Z
Y
Figure 5. Additional tailstock controls.
L. Quick-Change Tool Post: Allows the
operator to quickly load and unload tools/
tool holders.
M. Compound Rest Handwheel: Moves the
tool toward and away from the workpiece at
the preset angle of the compound rest. Dial is
graduated in increments of 0.001" (0.100" per
full revolution).
N. Carriage Lock: Secures the carriage in
place for greater rigidity and cutting accuracy
when it should not move.
O. Thread Dial: Indicates when to engage the
half nut during threading operations.
P. Spindle Lever: Starts, stops, and reverses
direction of spindle rotation.
Q . Half Nut Lever: Engages/disengages the
half nut for threading operations.
R. Feed Selection Lever: Selects the carriage
or cross slide for power feed.
S. Carriage Handwheel: Moves the carriage
along the bed. Dial is graduated in incre-
ments of 0.005" (0.56" per full revolution).
T.
Cross Slide Handwheel: Moves the cross
slide toward and away from the workpiece.
Dial is graduated in increments of 0.002"
(0.200" per full revolution).

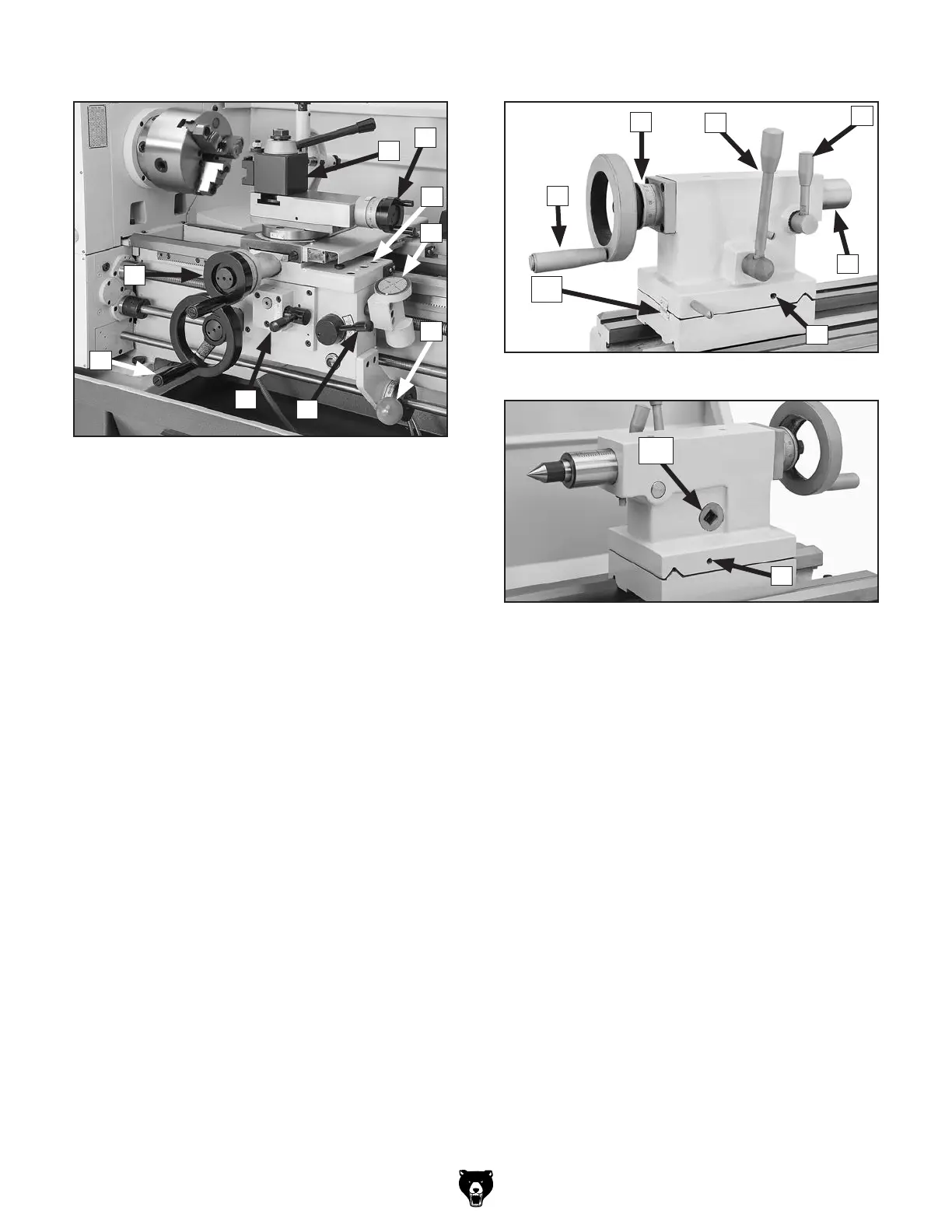

Figure 3. Carriage controls.
P
L
N
O
P
Q
R
T
Carriage
S
AB
AA
M
Z
