The carriage and compound rest have locks that
can be tightened to provide additional rigidity dur-
ing operation, especially during heavy cuts.
See Figure 57 to identify the locations of the
locks for each device.
Tools Needed Qty
Hex Wrench 3mm .............................................. 1
Hex Wrench 6mm
.............................................. 1
Carriage &
Compound Locks

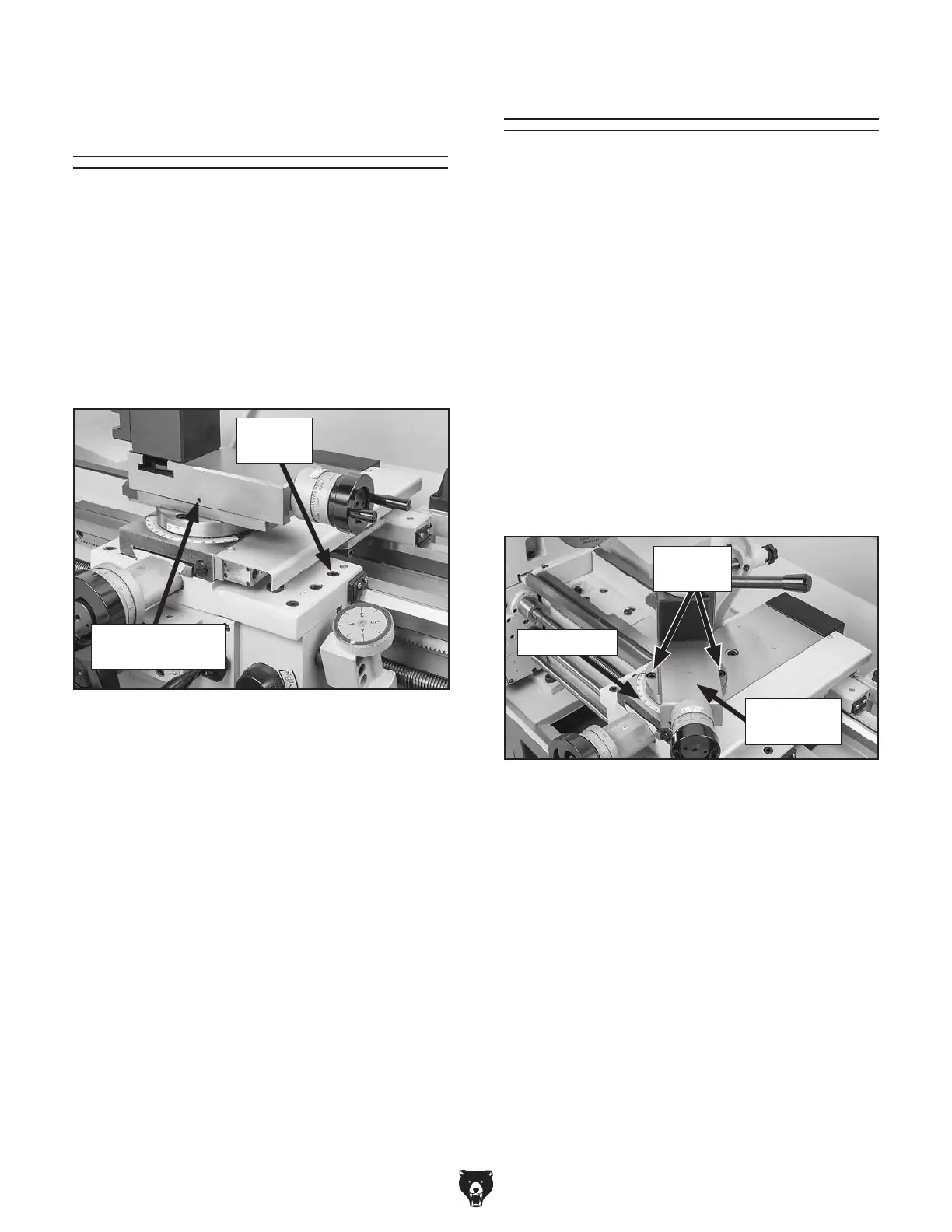

Figure 57. Location of carriage and compound
rest locks.
Compound Rest
Lock
Carriage
Lock
2. Rotate rest to desired angle, as indicated by
scale at base, then retighten two cap screws.
Tip: The first time you set the angle of the
compound rest for cutting threads, mark the
location on the cross slide as a quick refer-
ence point. This will allow you to quickly
return the compound rest to that exact angle
the next time you need to cut threads.
The compound rest handwheel has an indirect-
read graduated scale. This means that the dis-
tance shown on the scale represents the actual
distance the cutting tool moves. The base of the
compound rest has another graduated scale used
for setting the cutting tool to a specific angle.
Graduated Dial
Increments
................................. 0.001" (0.02mm)
One Full Revolution
................... 0.100" (2.54mm)
Tool Needed Qty
Hex Wrench 6mm .............................................. 1
To set compound rest at a certain angle:
1.
Loosen two cap screws at base of compound
rest (1 of 2 shown in Figure 58).
Figure 58. Compound rest angle adjustments.
Compound Rest
Angle Scale
Compound
Rest
Cap
Screws
