-24-
Model G0824 (Mfd. Since 12/16)

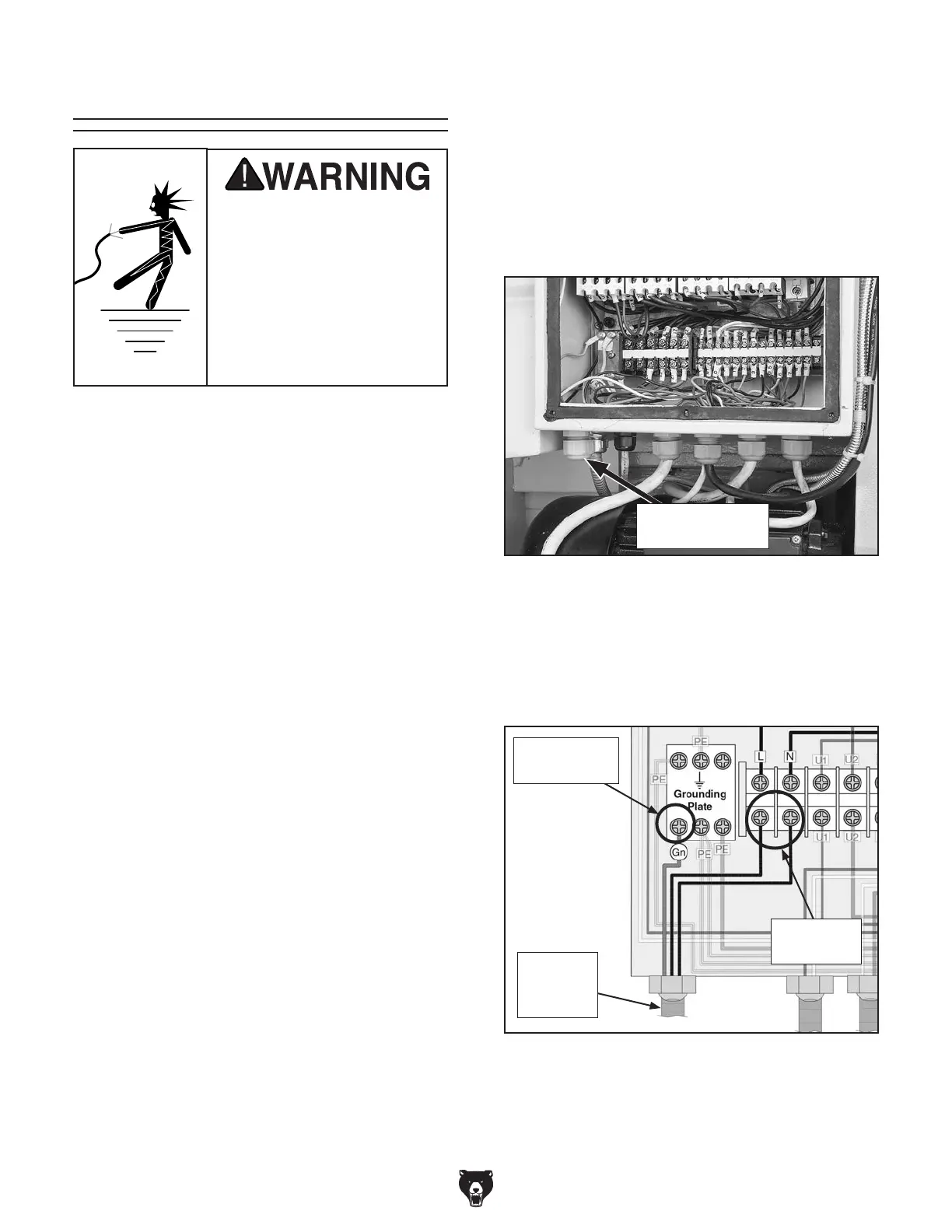

To connect the power cord to the lathe:
1. Press Emergency Stop/RESET button on
front of headstock, remove six Phillips head
screws that secure electrical box cover, then
remove cover.
2.
Thread power cord through strain relief shown
in Figure 22.
Power Connection
Before the machine can be connected to the
power supply, there must be an electrical circuit
that meets the Circuit Requirements for 220V
on Page 14.
To minimize the risk of electrocution, fire, or equip-
ment damage, installation work and electrical wir-
ing MUST be done by an electrician or qualified
service personnel.
Note About Extension Cords: Using an incor-
rectly sized extension cord may decrease the
life of electrical components on your machine.
Refer to Extension Cords on Page 15 for more
information.
Electrocution or fire
may occur if machine is
ungrounded, incorrectly
connected to power, or
connected to an undersized
circuit. Use an electrician
or a qualified service
personnel to ensure a safe
power connection.
3. Identify L and N terminals and grounding
plate (PE), shown in Figure 23, then connect
incoming hot wires and ground wire to those
terminals.
Figure 23. Incoming ground and hot wires
connected.
Hot Wires
Connected
Incoming
Power
Cord
Ground Wire
Connected
Figure 22. Location of hot wire terminals, ground
terminal, and strain relief.
Incoming Power
Strain Relief
To Next Page
