Model G0824 (Mfd. Since 12/16)
-3-
A. Headstock Controls (see Page 4 for details)
B.
DRO Unit
C. D1-5 Camlock MT#5 Spindle
D.
3-Jaw Chuck 7"
E.
Quick-Change Tool Post
F.
Follow Rest
G
. LED Work Lamp
H. Coolant Nozzle
I
. Compound Rest
J.
Cross Slide
K. Coolant Valve
L.
Steady Rest
M. Tailstock (see Page 5 for details)
N
. Longitudinal Leadscrew
O.
Feed Rod
P
. Control Rod
Q.
Chip Tray
R. Carriage (see Page 5 for details)
S. Foot Brake
T. Stand Mounting Points
U.
Storage Cabinet
V.
Quick-Change Gearbox Controls (see Page
4 for details)
F
L
N
O
P
A
H
V
Q
M
Identification

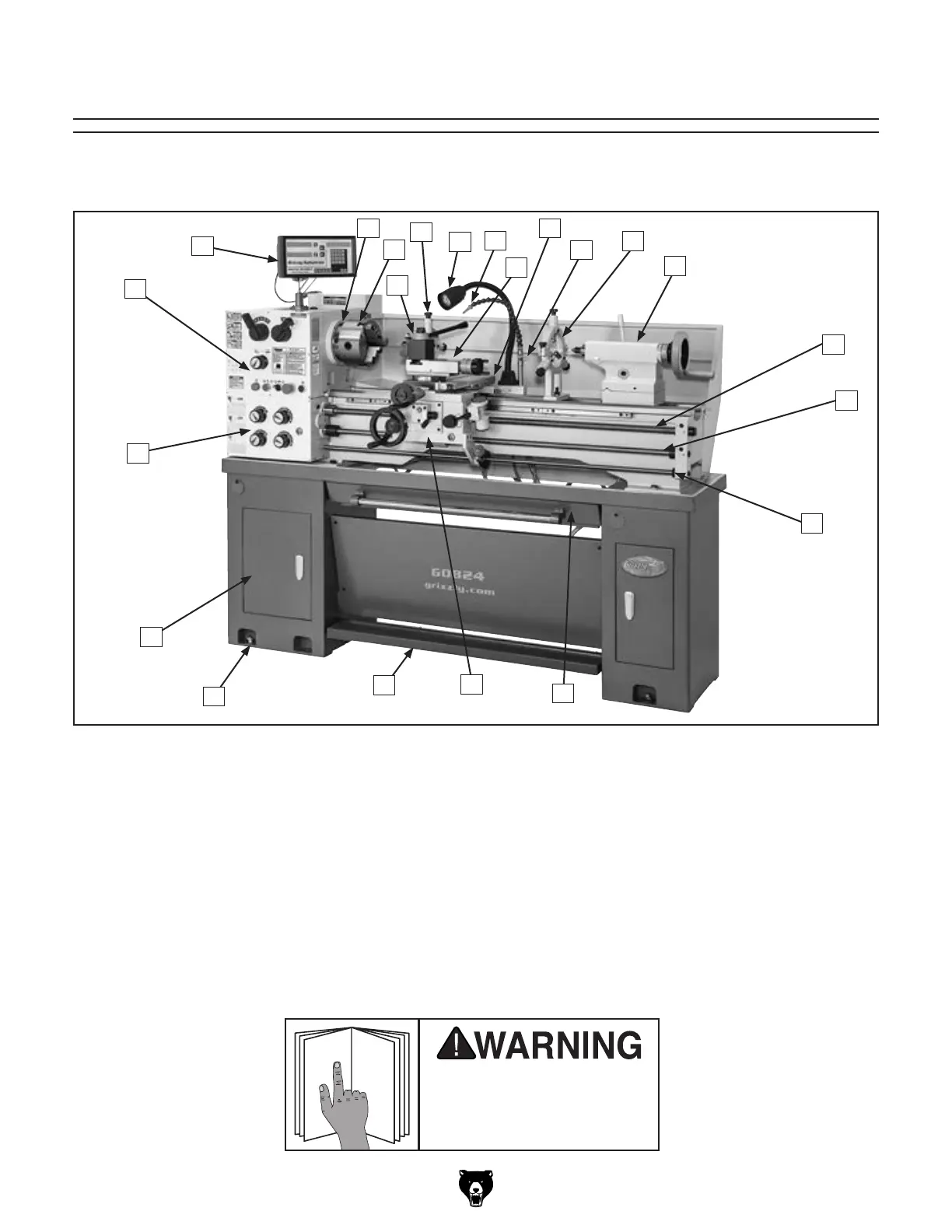

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
D
C
B
G
E
T
R
S
U
I
J
K
To Next Page
