Grizzly G0824 User Manual

Model G0824 (Mfd. Since 12/16)
-39-
8. Use calipers to measure both ends of work-
piece.
— If test stock is thicker
at tailstock end, move
tailstock toward front of lathe
1
⁄
2
the dis-
tance of taper amount, as shown below.
Move tailstock toward
front of lathe
1
/
2
the
amount of taper.
Looking down from above.

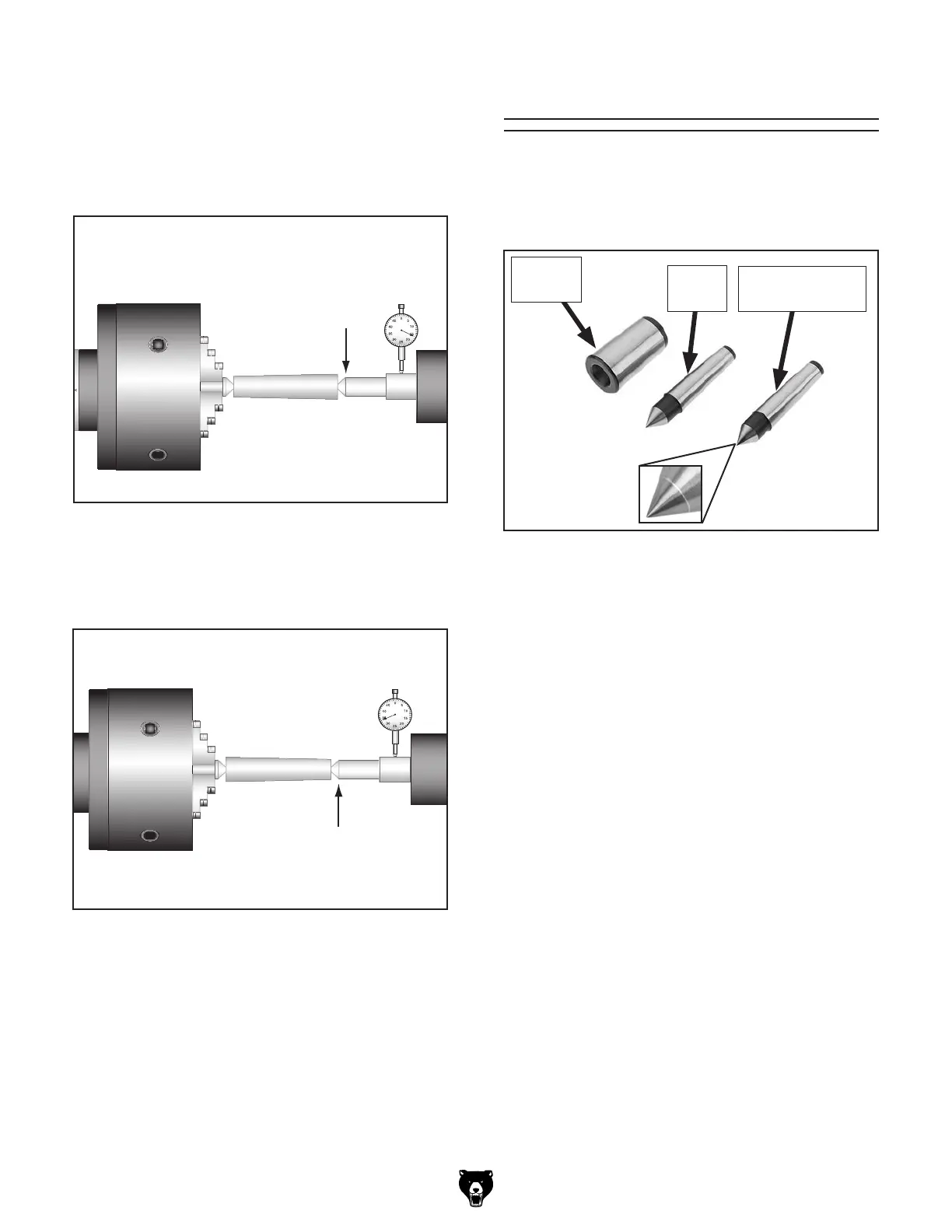

Figure 46. Adjust tailstock toward the operator.
— If test stock is thinner at tailstock end,
move tailstock toward back of lathe
1
⁄
2
the
distance of taper amount, as shown below.
Looking down from above.
Move tailstock toward
back of lathe
1
/
2
the
amount of taper.
Figure 47. Adjust tailstock away from the
operator.
9. Repeat Steps 6–8 until desired accuracy is
achieved.
Figure 48 shows the MT#3 dead centers included
with the lathe. In addition, an MT#6 x MT#3 adapt-
er sleeve is included for mounting MT#3 tooling in
the spindle.
Dead Centers
A dead center is a one-piece center that does not
rotate with the workpiece and is used to support
long, slender workpieces
Use the dead center in the spindle for operations
where the workpiece rotates with the center and
does not generate friction.
The carbide-tipped dead center can better with-
stand the effects of friction and is best used in the
tailstock where the workpiece will rotate against
it. The tip of the center must be generously lubri-
cated during the operation to avoid premature
wear and maximize smooth operation. Using low
spindle speeds will also reduce the heat and wear
from friction.
Figure 48. Adapter sleeve and centers.
Centers
Dead
Center
Carbide-Tipped
Dead Center
Adapter
Sleeve
