The handwheels shown in Figure 63 allow the
operator to manually position the cutting tool.
Carriage Handwheel
The carriage handwheel moves the carriage left
or right along the bed. It has a graduated dial with
0.005" increments. One full revolution moves the
carriage 0.56".
Cross Slide Handwheel
The cross slide handwheel moves the tool toward
and away from the work. Adjust the position of
the graduated scale by holding the handwheel
with one hand and turning the dial with the other.
The cross slide handwheel has an indirect-read
graduated dial, which shows the actual distance
the tool moves. The dial has 0.002" (0.05mm)
increments. One full revolution moves the slide
0.200" (5.08mm).
Compound Rest Handwheel
The compound rest handwheel moves the cutting
tool linearly along the set angle of the compound
rest. The compound rest angle is set by hand-
rotating it and securing in place with two hex nuts.
The compound rest has an indirect-read gradu-
ated dial with 0.001" (0.02mm) increments. One
full revolution of the handwheel moves the slide
0.100" (2.54mm).

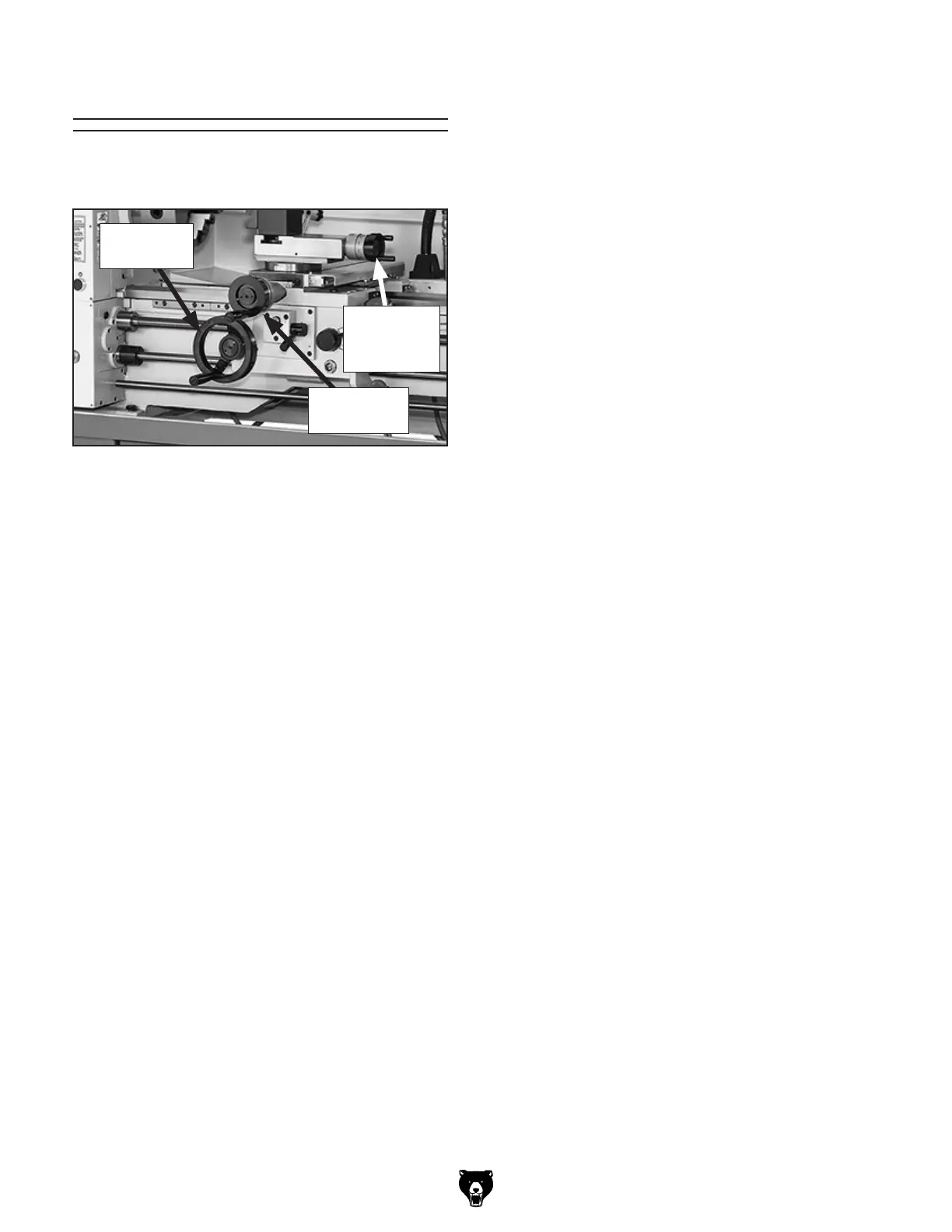

Figure 63. Carriage controls.
Carriage
Handwheel
Cross Slide
Handwheel
Manual Feed
Compound
Rest
Handwheel
