Grizzly G0824 - Compound Slide & Tool Post

Model G0824 (Mfd. Since 12/16)
-105-

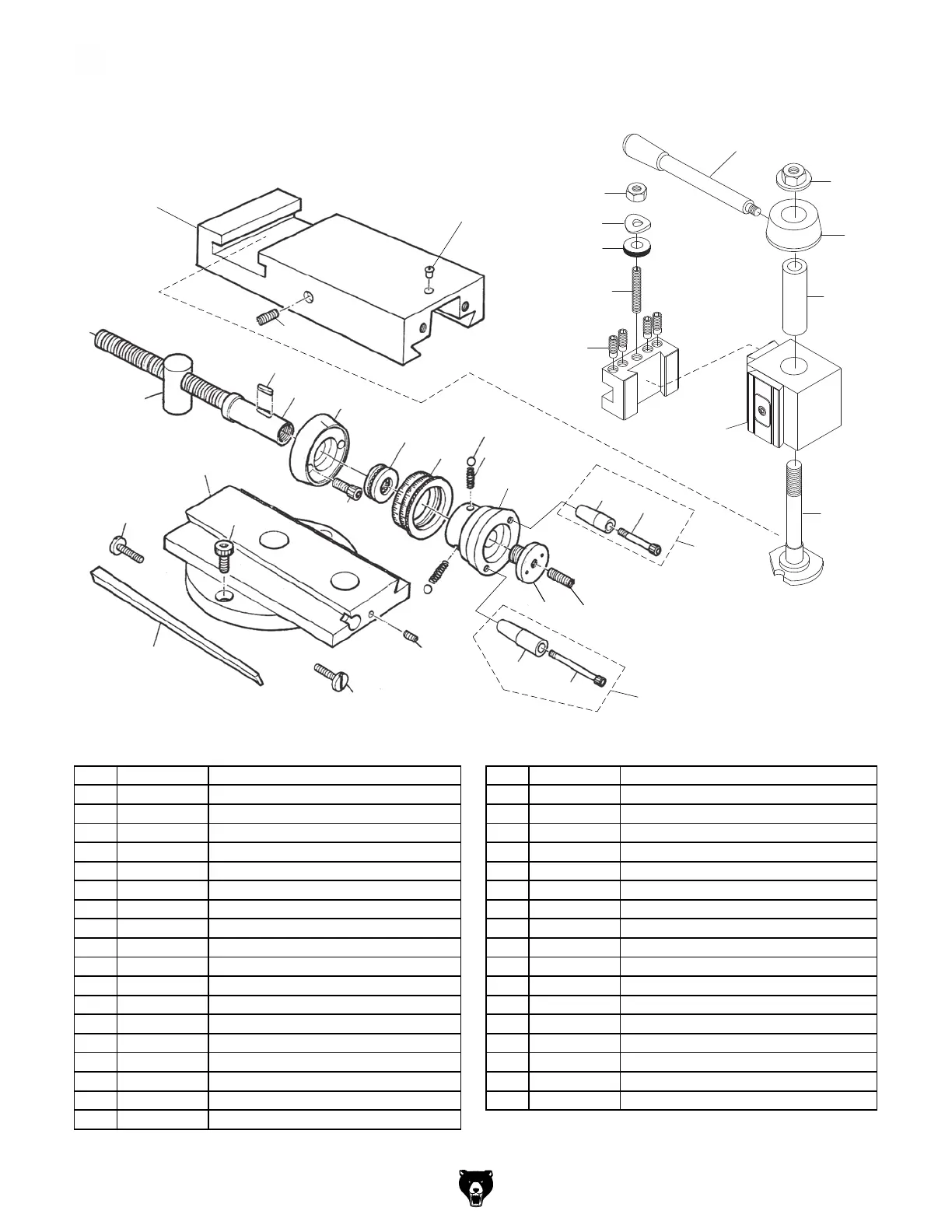

Compound Slide & Tool Post
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
616
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
613A
621A
REF PART # DESCRIPTION REF PART # DESCRIPTION
601 P08240601 BALL OILER 6MM TAP-IN 619 P08240619 COMPOUND SLIDE GIB
602 P08240602 SET SCREW M6-1 X 25 620 P08240620 SET SCREW M6-1 X 8
603 P08240603 INNER HUB 621 P08240621 HANDWHEEL HANDLE 12 X 40 X 6
604 P08240604 STEEL BALL 6MM 621A P08240621A HANDLE 12 X 40 X 6 W/SCREW
605 P08240605 COMPRESSION SPRING 622 P08240622 SHLDR SCR M5-.8 X 8, 6 X 42
606 P08240606 COMPOUND SLIDE 623 P08240623 COMPOUND LEADSCREW NUT
607 P08240607 SET SCREW M6-1 X 6 624 P08240624 CAP SCREW M6-1 X 20
608 P08240608 KEY 4 X 4 X 14 RE 625 P08240625 TOOL POST BOLT M16-1.5 X 35
609 P08240609 COMPOUND LEADSCREW 626 P08240626 QUICK-CHANGE TOOL POST BLOCK
610 P08240610 BEARING HOUSING 627 P08240627 TOOL POST BUSHING
611 P08240611 THRUST BEARING 8103 628 P08240628 TOOL POST HANDLE HUB
612 P08240612 GRADUATED DIAL 0.001"/0.2" 629 P08240629 FLANGE NUT M16-1.5
613 P08240613 HANDWHEEL HANDLE 12 X 25 X 6 630 P08240630 TOOL POST HANDLE M12-1.75 X 8
613A P08240613A HANDLE 12 X 25 X 6 W/SCREW 631 P08240631 HEX NUT M10-1
614 P08240614 SHLDR SCR M5-.8 X 8, 6 X 27 632 P08240632 WAVY WASHER 10MM
615 P08240615 HANDWHEEL TYPE-10 61D B-K 633 P08240633 KNURLED THUMB NUT M10-1
616 P08240616 GIB ADJUSTING SCREW 634 P08240634 SET SCREW M10-1 X 45
617 P08240617 SWIVEL SLIDE 635 P08240635 SET SCREW M10-1.5 X 14 PILOT
618 P08240618 CAP SCREW M8-1.25 X 16
