-90-
Model G0824 (Mfd. Since 12/16)
READ ELECTRICAL SAFETY
ON PAGE 86!
Ground
Run Capacitor
20M 450V
Start Capacitor
150M 250V
U2
Z2
Z1
U1
Motor
B

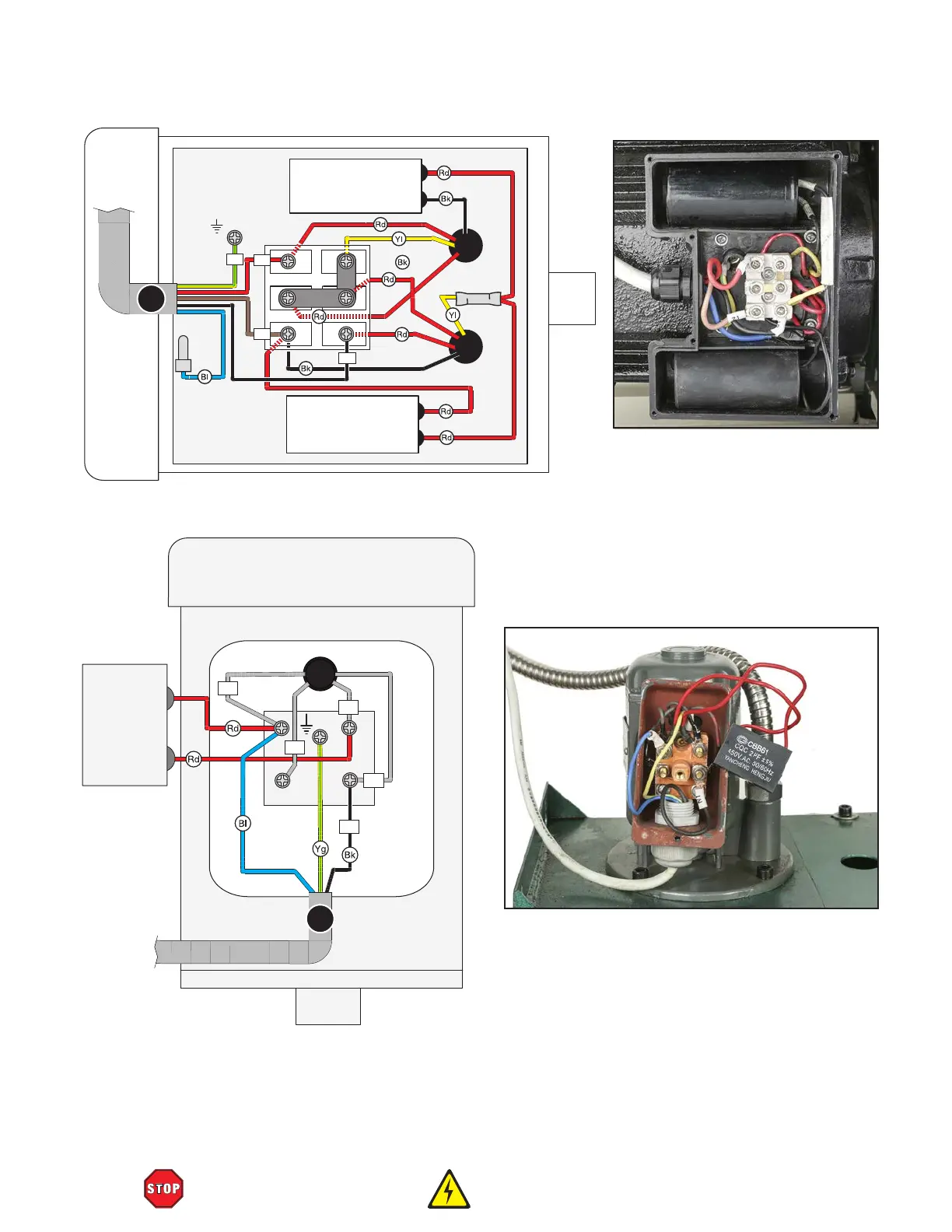

Main & Pump Motor Wiring
Figure 148. Spindle motor junction
box.
GND
U1
Z1
U2
N1
Capacitor
2 MFD
450V
Pump Motor
E
GND
Z2
Figure 149. Coolant pump motor.
