-6-
Model G0824 (Mfd. Since 12/16)
End Gears

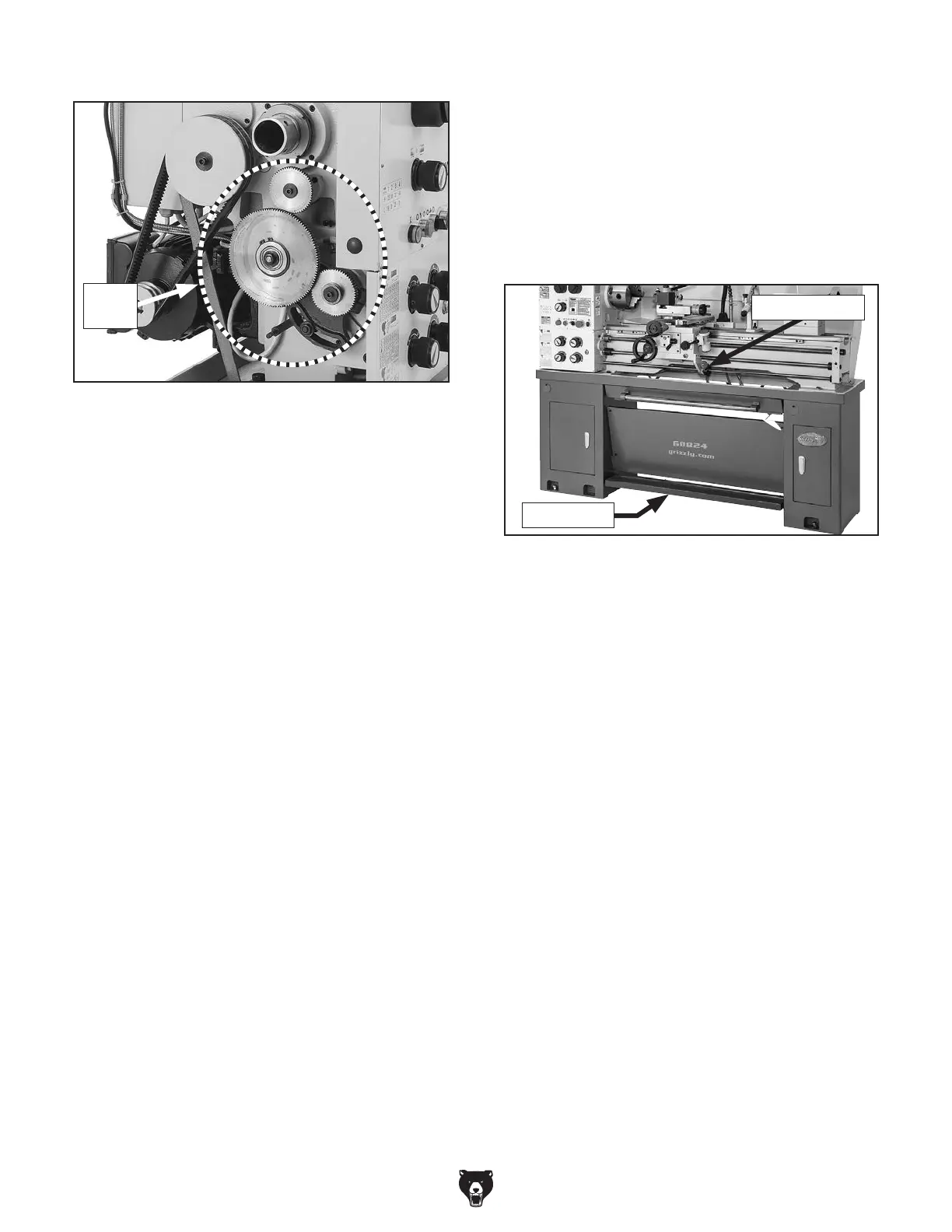

Figure 6. End gear components.
End
Gears
Configuring the end gears (shown in Figure 6)
controls the speed of the leadscrew for threading,
or the feed rod for power feed operations.
Safety Foot Brake
This lathe is equipped with a foot brake
(see Figure 7) to quickly stop the spindle instead
of allowing it to coast to a stop on its own. Pushing
the foot brake while the spindle is ON cuts power
to the motor and stops the spindle. After the foot
brake is used, the spindle lever must be returned
to the OFF (middle) position to reset the spindle
switches before re-starting spindle rotation.
Figure 7. Foot brake and spindle lever.
Foot Brake
Spindle Lever
