Model G0824 (Mfd. Since 12/16)
-37-
Removing Tooling
1. Use shop rag to hold tool.
2.
Rotate quill handwheel counterclockwise until
tool is forced out of quill.
— If tool does not come loose by retracting
quill, extend quill and use drift key in slot
shown in Figure below to remove tool.
Offsetting Tailstock
The tailstock quill can be offset from the spindle
centerline for turning tapers. Offsetting the quill
toward the front of the lathe results in a taper at
the tailstock end. Conversely, offsetting the quill
toward the back of the lathe results in a taper at
the spindle end.
Note: The marks on the offset indicator (see
Figure 43) are arbitrary. For a precise offset, use
a dial indicator to check quill movement while
adjusting the screws.
Tool Needed Qty
Hex Wrench 4mm .............................................. 1

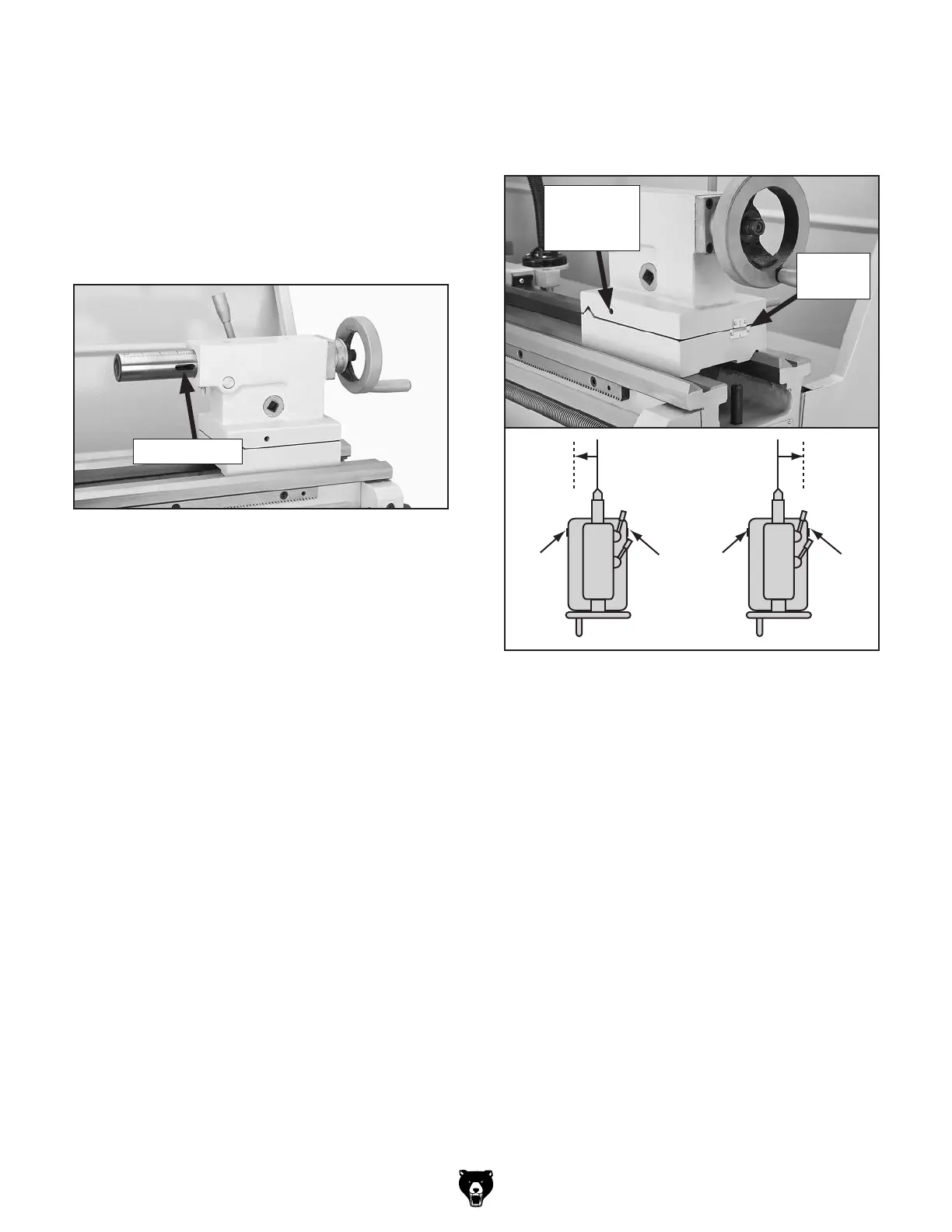

Figure 42. Drift key slot in the side of the quill.
Drift Key Slot
To offset tailstock:
Rotate adjustment set screws (shown in Figure 43)
in opposite directions for desired offset.
Turn
CCW
Turn
CCW
Turn
CW
Turn
CW
Figure 43. Set screw adjustment in relation to
tailstock movement.
Offset
Indicator
Adjustment
Set Screw
(1 of 2)
