To change coolant:
1.
Position coolant nozzle over back splash so
that it is pointing behind lathe.
2
. Have another person hold bucket up to noz-
zle to prevent coolant from splashing out.
3
. Turn coolant pump ON and open valve (see
Figure 120 on Page 69) to pump old fluid
out of reservoir. Turn pump OFF immediately
after fluid stops flowing.
Adding Coolant
4. DISCONNECT MACHINE FROM POWER!
5
. Lift coolant tank off of mounting screws and
set on ground.
6
. Remove cover (see Figure 122) and pour
remaining coolant into 2-gallon bucket and
close lid.
7
. Clean all sludge from bottom of tank and
then flush it clean. Use second bucket to hold
waste and make sure to seal lid closed when
done.
Dispose of old coolant and swarf according
to federal, state, and fluid manufacturer's
requirements.
8.
Replace cover and re-install tank, making
sure to insert return drain hose into tank
opening.
9.
Add coolant as instructed on this page.
Running coolant pump longer than
necessary for this procedure without
adequate fluid in tank may permanently
damage it, which will not be covered under
warranty.
Items Needed Qty
Safety Wear ................See Hazards on Page 69
New Coolant
..................................... 10.0 Quarts
Funnel
................................................................ 1
Disposable Shop Rags
...................... As Needed
To add coolant:
1
. DISCONNECT MACHINE FROM POWER!
2.
Remove return drain hose (see Figure 122)
from hole in top of tank and pour coolant into
tank until it is approximately 1" from top.
3
. Re-install return drain hose.

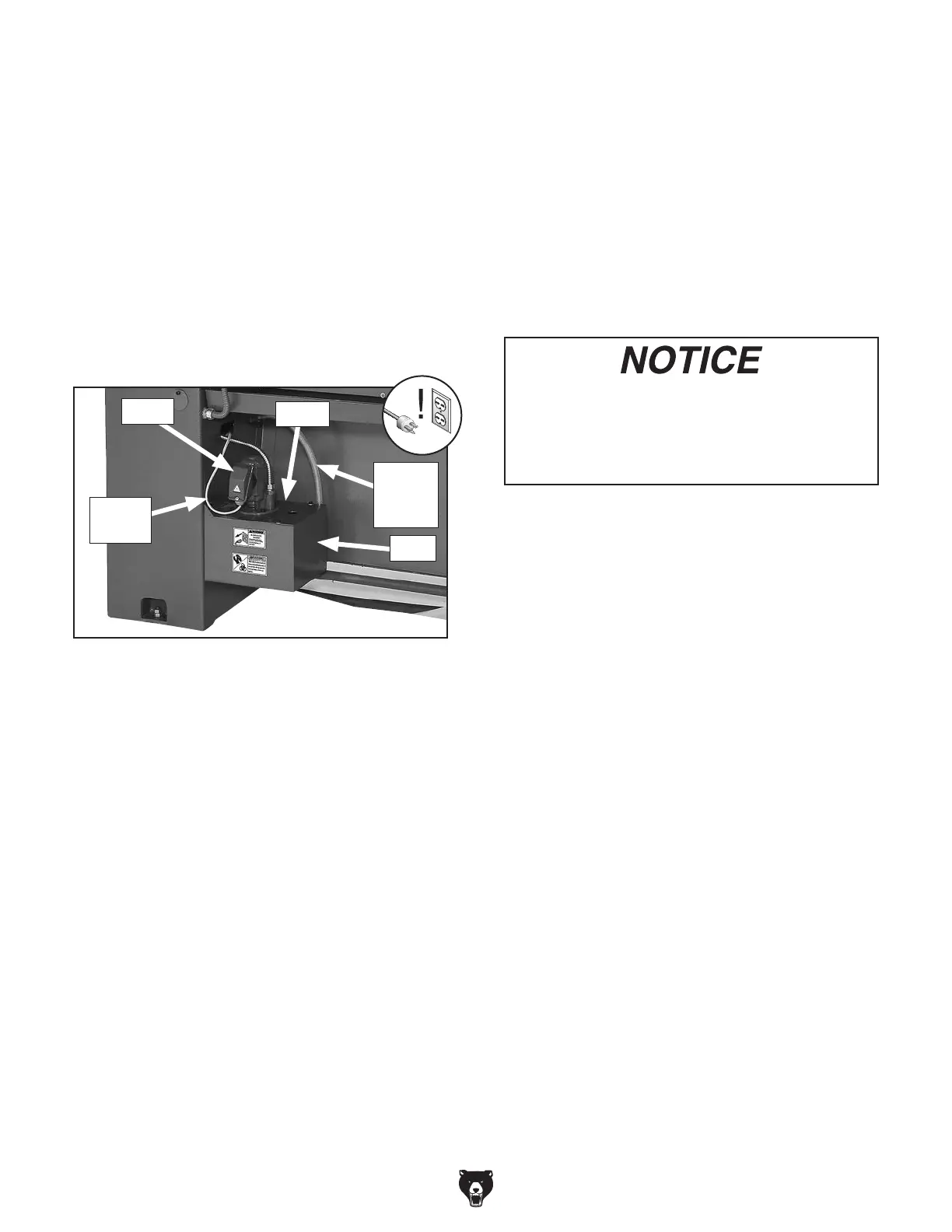

Figure 122. Location of coolant tank and pump.
Pump
Tank
Cover
Changing Coolant
When you replace the old coolant, take the time
to thoroughly clean out the chip drawer and fluid
tank. The entire job only takes about a
1
⁄2 hour
when you are prepared with the proper materi-
als and tools. Make sure to dispose of old fluid
according to federal, state, and fluid manufac-
turer's requirements.
Items Needed Qty
Safety Wear ................See Hazards on Page 69
New Coolant
..................................... 10.0 Quarts
Hex Wrench 5mm
.............................................. 1
Disposable Shop Rags
...................... As Needed
Magnets (Optional)
............. As Many As Desired
Power
Cord
Return
Drain
Hose
